[Explosion-Proof Design] [80-120°C VFD Control] Biomass Vacuum Dryer for Bamboo Powder/Sugarcane Residue [Shandong Manufacturer]

                                                                                                                                         1.Product Description

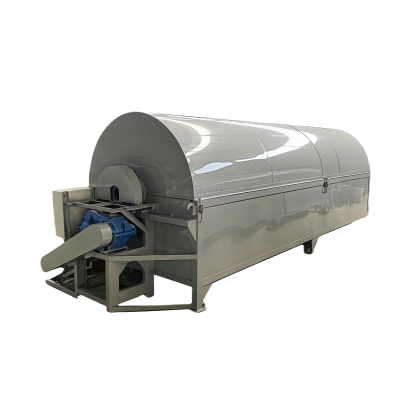

The vacuum dryer is a new type of drying equipment that is efficient, energy-saving, safe and stable. It is specially designed for biomass powder (such as sawdust, straw, bamboo powder, etc.) and various dryable materials. Using exclusive vacuum hot air circulation technology, combined with scientific structural design, it solves the pain points of traditional dryers such as high energy consumption, many wearing parts, and large safety hazards. It is an ideal choice for agriculture, forestry, food processing and other industries.

2.Product Parameters

3.Diversified Raw Materials

The new dryer can dry raw materials with any moisture content (such as wood chips, sawdust, bamboo powder, straw chips, mushroom bag chips, grass chips, sugarcane chips, reed chips, crushed materials of various trees and other biomass powders and other dryable powders), and the moisture content of the finished dry material after drying can be adjusted to within 5% moisture content through frequency conversion (such as drying from wood chips with 85% moisture content to dry wood chips with 5% moisture content).

4.Core Functions And Features

? Energy efficient · The heat loss is reduced by 80%, and only about 90kg of fuel (wood/coal/pellets) is needed to dry 1 ton of dry materials. The total power is 24kW, which saves 40% of electricity than traditional equipment. · The hot air is in indirect contact with the material, eliminating the risk of fire and making it safe and reliable. ? Sturdy and durable · The cylinder is statically designed, there is no roller bearing loss, the main body has no wearing parts, and the service life is extended by 50%. · Exposed bearings are easy to replace and have low maintenance costs. ? Flexible and applicable · It can dry materials with any moisture content (5%~85%), and the dryness of the finished product can be accurately controlled (≤5% moisture content). · Small size (minimum length is only 7 meters), space saving and flexible installation. ? Intelligent control · Supports frequency conversion to adjust air volume and temperature to adapt to different material needs. · Real-time monitoring of tail temperature (80~120℃) to ensure drying quality.

5. Working Principle

· Feeding: Wet materials are fed into the double-layer cylinder through the air-closed device to prevent hot air from directly contacting the materials. · Hot air circulation: The hot air furnace heats the interlayer air and spreads the materials evenly through the lifting plate to improve drying efficiency. · Dust removal and emission: After drying, the materials and exhaust gas are removed by cyclone/bag dust removal, the dust rate is <1%, and the environmental protection standards are met.

6.Product packing

7.Applicable Acenarios

Agriculture: Drying of straw, fungus bags, pasture and other biomass. · Forestry: processing of wood chips, bamboo powder, and bark chips. · Industry: Dehydration of chemical powders and food raw materials (such as sugarcane bagasse). ·Environmental protection: recycling of sludge and waste residue.

8.Our Factory

The factory covers an area of 6,000 square meters and has a full set of advanced molded pallet production lines and related equipment manufacturing. It is a high-quality machinery provider. The company is leading in quality and can design exclusive equipment for customers' products. It continuously optimizes production processes and equipment performance, and customizes a full set of production lines for customers, becoming a leader in the industry integrating R&D, production and sales.

Warm reminder:

We support customized services (such as corrosion-resistant coating, explosion-proof design), contact us to get exclusive solutions!
