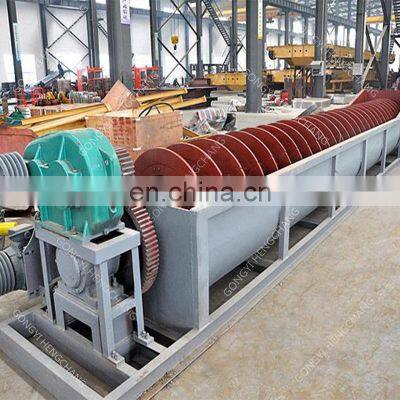

High efficiency mini spiral washer equipment screw rock river stone silica sand washing machine price for gold
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High capacity mini gold spiral washer equipment screw rock river stone silica sand washing machine with good price
-
Good performance mining equipment mineral river coal kaolin quartz silica spiral stone sand washing machine for gold
-
Factory customized 100 thp mining machinery iron ore mineral sand spiral river stone washing washer machine for gold
-
Factory sale 10-100tph mining machinery ore gravel mineral river rock stone spiral sand washer machine for gold
-
Good quality 5Tph mining machinery quartz mineral silica sand washer clay gold ore screw sand washing machine for sale
-
High performance mining equipment mineral ore spiral sand washer river silica screw sand washing machine for sale
Product Description
Product Description

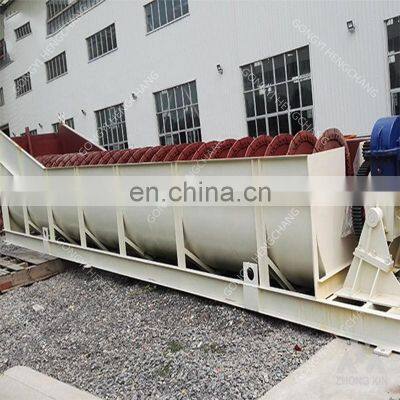

High efficiency mini spiral washer equipment screw rock river stone silica sand washing machine price for gold
Spiral stone washing machine is suitable for construction sites, sand and gravel plants, hydropower stations, concrete dam sites,post and telecommunications pole factories.
The sand washing machine is arranged at an inclination of 15°, and the lower part of the water tank is surrounded by three side slabs to form a sedimentation tank.
The spiral head is not inserted into the sedimentation tank, and the spiral is continuously rotated by the electric motor through the reducer, and the washing water is fed from the perforated plate at the bottom of the sedimentation tank.
The device has three functions of cleaning, dehydration and classification. We have two types of sand washing machine:
The spiral head is not inserted into the sedimentation tank, and the spiral is continuously rotated by the electric motor through the reducer, and the washing water is fed from the perforated plate at the bottom of the sedimentation tank.
The device has three functions of cleaning, dehydration and classification. We have two types of sand washing machine:
Condition: | New |
Type: | Spiral stone washing machine |
Production Capacity: | According to models |
Voltage: | 380V |
Dimension(L*W*H): | Refer to specification |
Weight: | 0.7~35t |
Certification: | CE,ISO |
Warranty: | 1 Year |
After-sales Service Provided: | Free spare parts, Field installation, commissioning and training, Engineers available to service machinery overseas. |
Spiral diameter: | 300~3000mm |
Trough length: | 3000~14300mm |
spiral sand washing plant: | Advanced and reasonable |
Operation: | Simple，sand production line |
Maintenance: | Easy |
Running costs: | Low |
Market: | Africa, Asia,etc |
Related Products：
Sand washer is widely used for the washing of the material sand quarry, mining, building materials,transportation, chemical industry, water conservancy and hydropower, concrete mixing station,etc.
According to different kind of washing type, we have :

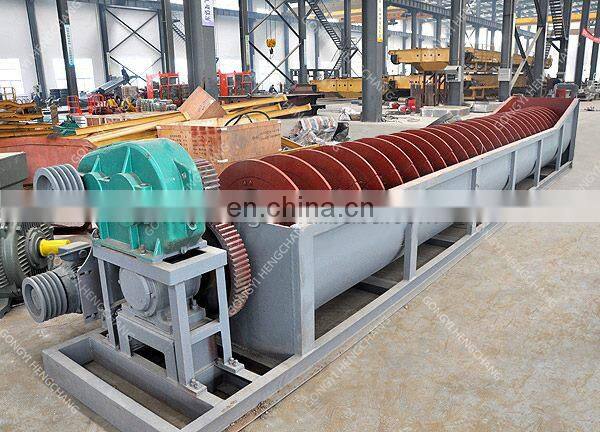

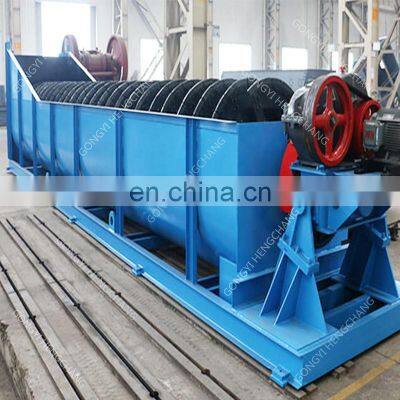

Spiral sand washing machine:
Wheel type sand washing machine:
According to different kind of washing type, we have :
Spiral sand washing machine:
Wheel type sand washing machine:
Product Details

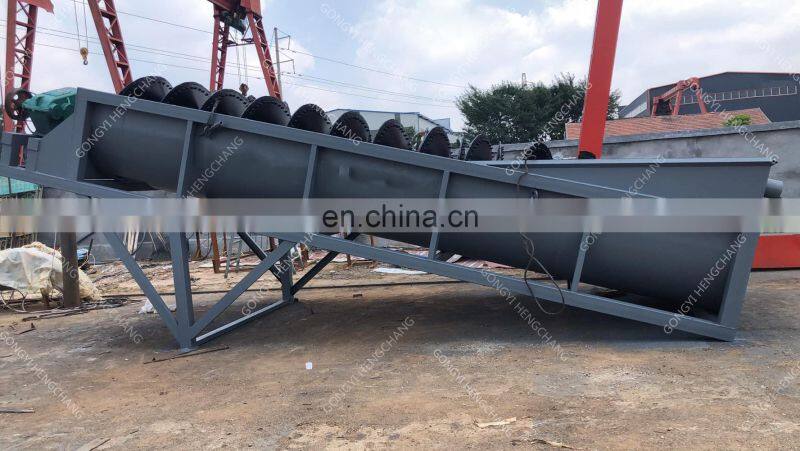

Reinforced Tank And Base
Strong Stability, long service life
Seamless steel tube spindle
Strong rigidity, strong torsion, no deformation.
High Quality Transmission System
Copper core motor, high quality reducer, stainless steel bearing, stable and reliable running.
Thickened Wear- Resistant Blade
Wear resistance iron material, removable design, easy to replace
Products Application

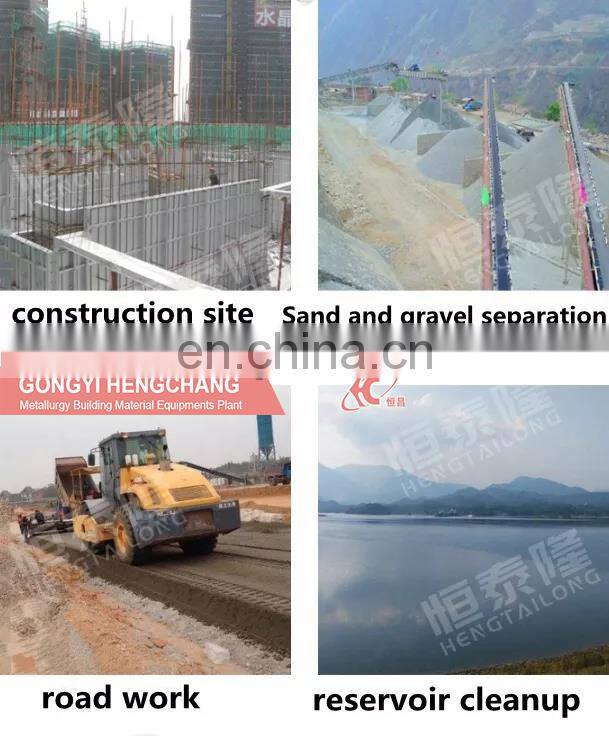

Range of application:
Quarry, Building material, Transportation, Energy, Chemistry, etc.
Applied Material:
Quartz stone, River pebbles, Calcite, Dolomite, Granite, Basalt, Iron ore, Limestone, Diabase, etc.
Quarry, Building material, Transportation, Energy, Chemistry, etc.
Applied Material:
Quartz stone, River pebbles, Calcite, Dolomite, Granite, Basalt, Iron ore, Limestone, Diabase, etc.
Working Principle
The stone washer adopts inclination of 15°,under the water tub, three weir plates form the sediment pool, the screw head is immersed in this pool, the screw is driven by electric motor through reducer rotating continuously, the fresh water is feeding from porous plate at bottom of sediment pool. The sand washing machine is a kind of sand washing machine, appliance by water fit with the sand maker.
The sand washer can wash away micro amount of stone powder and impurity from the mixed sand made by the sand maker to improve the quality of the sand. The sand washer impelled by generator and redactor drives the impeller to rotate in circles continuously in the water tank and then to make the sandstones and slag particles mixed, inverted and washed in the tank and discharged after dehydration of the materials in the impeller.
Model | Spiral diameter (mm) | Feed size (mm) | Water consumption (m3/h) | Capacity (t/h) | Power (kw) | Dimension (mm) | Weight(T) |
XL-508 | 508 | <10 | 6~60 | 20 | 5.5 | 8000*2343*1430 | 2.67 |
XL-610 | 610 | <10 | 6~63 | 40-50 | 7.5 | 8000*2050*1400 | 3.80 |
XL-762 | 762 | <10 | 9~63 | 50-75 | 11 | 8545*2650*3862 | 5.23 |
XL-915 | 915 | <10 | 10-80 | 100 | 11 | 8500*2810*3600 | 6.27 |
2XL-915 | 915 | <10 | 20~160 | 200 | 2*11 | 8420*3765*3960 | 11.11 |
XL-1115 | 1115 | <10 | 20~150 | 175 | 15 | 10970*3945*4720 | 10.18 |
2X1115 | 1115 | <10 | 40~30 | 350 | 2×15 | 10970*5250*4720 | 17.94 |
Company Profile
Hengchang is a company integrating industry and trade. Its main business is the sale of jaw crushers, drying equipment, and mineral processing equipment. We have our own factory, professional production team, quality control team, 10 years of export experience and many loyal customers. We have experience in exporting products to Southeast Asia, Australia, Europe, South America and Africa, and have gained a good reputation. At the same time, our excellent product quality and best service have won the trust of customers all over the world. Many of our products have obtained CE certification, and most of our partner factories have ISO9001 and IEC certifications. Some have also obtained etification. We believe that our company is your good choice, because we respond quickly to your enquiry, and we will reply you within 4 hours. Our experienced English-speaking trading staff will listen to your requirements and choose the right products for your market according to your requirements.

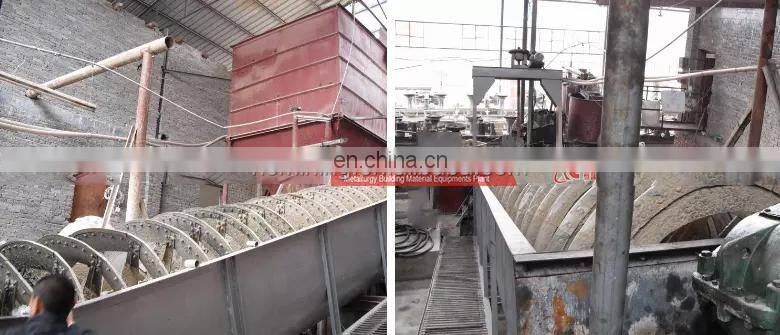

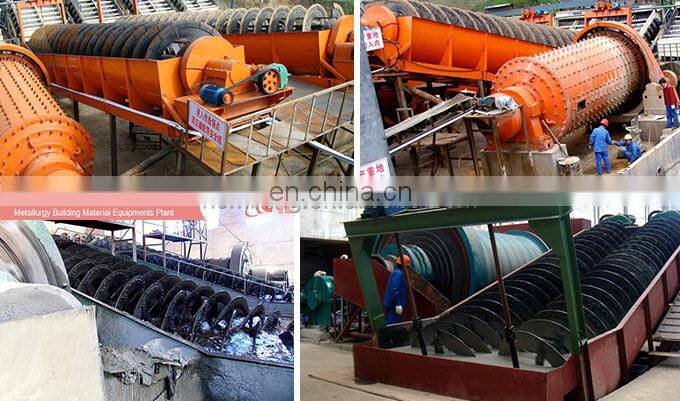

The Customer Site
We have provided the log washer for many customers in Sudan,Mali, Mozambique, Nigeria, Suriname, Ghana, South Africa,Uganda, Zambia, Tanzania, Angola, Canada, Austrialia, Chile, Peru,ect. For Alluvail gold washing plant, coltan ore mining plant,diamond washing plant, Iron ore washing plant,ect.
Customer Visit & Our Service
Before-sale services:
We guide customers to choose the best and applicable device; provide the advanced, energy-saving and practical technological processes, as well as we are responsible for the planning and design of the site.
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts
Tips:
The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the
negotiation.
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts
Tips:
The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the
negotiation.

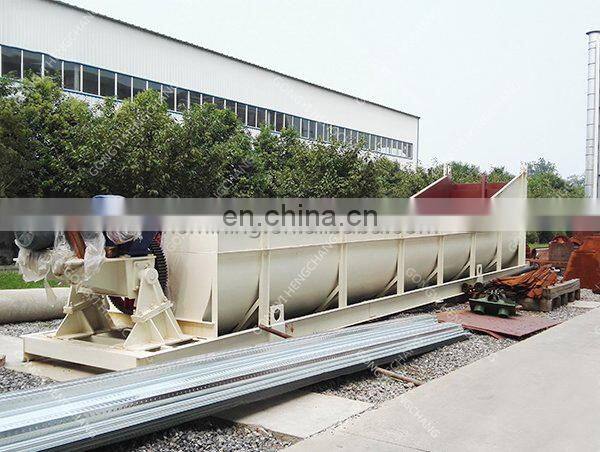

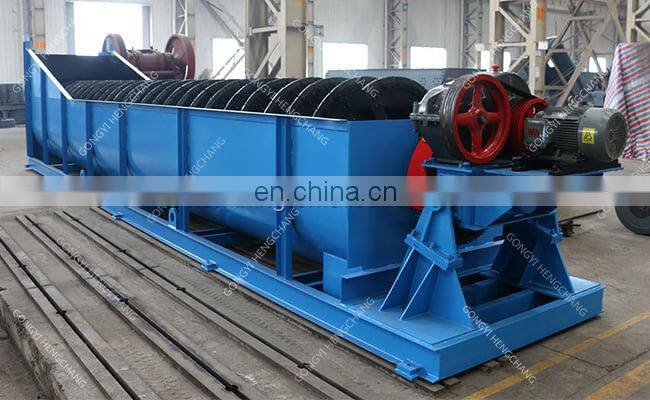

Product & Packaging
Packaging Details:
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Delivery Time:
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
RFQ
Q:Why we believe in Gongyi Hengchang company?
A: 1.More than 28 years’ experience.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
.
Q:Delivery time?
Q:Delivery time?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
