Home > Products > Crushing Equipment > Customized Stainless Steel Large Capacity 100 meters Scraper Chain Chip Conveyor Coal Mine u type Scraper Conveyor Price

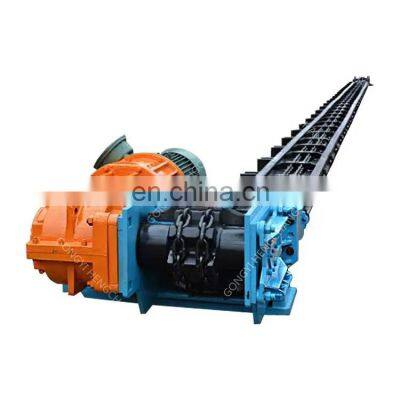

Customized Stainless Steel Large Capacity 100 meters Scraper Chain Chip Conveyor Coal Mine u type Scraper Conveyor Price

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Great Quality Customized 6.5hp Power Mine Loading Feeding Rubber Belt Conveyor Price Conveyor Belt For Industrial,Quarry, Cement

Chain Scraper Conveyor Machine for Cement is full sealed conveying equipment, widely used for transporting powder and small granular material, Such as: Cement powder, Coal, Chemical fertilizer, Grain and Calcium carbonate etc.

Chain Scraper Conveyor Machine for Cement can be used to transported bulk material horizontally and sloping transported material.

Product Application

The drag chain conveyor is widely used in cement plant , power plant , flour plant and chemical plaetc .

It is widely used for transporting powder and small granular material.

Product Features

Our advantages on belt conveyor:

1. Long time of warranty.
2. Full-closed,wear resistance structure.
3. Horizontal & whole inclined transport of bulk material.

Working Principle

The working principle of the scraper conveyor is that the open chute is used as a bearing member for coal, gangue or materials,and the scraper is fixed on the chain (composed of a scraper chain) as a traction member.

When the head drive part is started, the sprocket on the head shaft is driven to rotate, so that the scraper chain circulates and drives the material to move along the chute until it is unloaded at the head. The scraper chain bypasses the sprocket for a stepless closed cycle operation to complete the conveying of materials.

Model			SGB420/22	SGB420/30	SGB420/40X	SGB620/40	SGB620/55)	SGB620/80
Delivery Capacity (t/h)			60	80	100	150	150	150
Standard length(m)			80	100	100	100	100	160
Chain speed(m/s)			0.88	0.88	0.86	0.86	0.86	0.86
Electric motors	Model number	HC-22	HC30	HC40	HC40	HC55	HC40
		Power(kW)	22	30	40	40	55	2*40
		Voltage(V)	220/380	380/660	380/660	380/660	380/660	380/660
Scraper chain	Form	Side double-stranded	Side double-stranded	Side double-stranded	Side double-stranded	Side double-stranded	Side double-stranded
		Chain size(mm)	14*50	14×50	18×64	18×64	18×64	18×64
		Breaking load(KN)	≥250	≥250	320	≥320	≥320	≥320
Middle Flute size (L x W x H)			1200×420×150	1200×420×150	1200×420×180	1500×620×180	1500×620×180	1500×620×180
Total weight(t)			8.5	10.6	16	17.8	17.9	28.6

Customer Visits & Exhibition Souvenirs

Company Profile

Hengchang headquarters is located in the industrial park in Gongyi City. It covers a total area of 150,000 square meters,including 100,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment,powder grinding mills, mineral processing equipment and their spare parts. Every year, Hengchang can turn out 1,000 sets of crushers and10,000 tons of crusher parts.

Customer Case

Our machine has been sold to Germany, Australia, Japan, Mexico, Philippines, Indonesia, Russia, Uganda, Uzbekistan, Zimbabwe, etc.
And our products are well received by customers. Welcome to inquiry!

Our Service

Before-sale services:

We guide customers to choose the best and applicable device; provide the advanced, energy-saving and practical technological processes, as well as we are responsible for the planning and design of the site.
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully . Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts
Tips:
The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the negotiation.

Packing &Delivery

Packaging Details:

Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Delivery Time:

We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25 working days.

RFQ

Q:Why we believe in Gongyi Hengchang company?

A: 1.More than 28 years’ experience.

2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.

Q:Deliverytime ?
A: The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.

Q: Payment terms ?

A: Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.

Q: What will you do if the machine is broken down?

A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q:What should i do if I want to get a best quotation?

A:If you want a suitable type for you, please let us know your material and capacity.
