Home > Products > Crushing Equipment > Hot sale clay screw sand cleaning equipment soil quartz silica sand gravel washer machine washing plant with high quality

Hot sale clay screw sand cleaning equipment soil quartz silica sand gravel washer machine washing plant with high quality

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

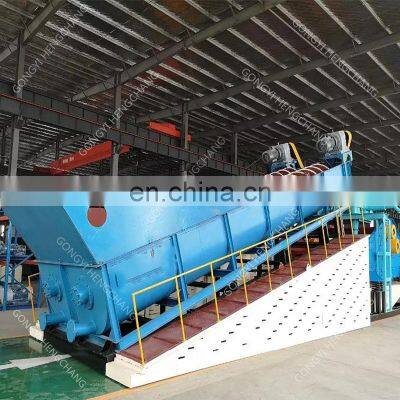

Hot sale clay screw sand cleaning equipment soil quartz silica sand gravel washer machine washing plant with high quality

Spiral sand washing machine is widely used in construction, highway, hydropower plants, sand and gravel plants, concrete mixing plants, etc.

It can not only process the coarse-grained materials, but also the medium-grained or fine-grained materials, such as river pebbles, pebbles, granite, basalt, and shale.

After washing, dewatering and separating by the spiral sand washer, the impurities mixed in the sand are removed, and high-quality sand is obtained.

Related Products：

Sand washer is widely used for the washing of the material sand quarry, mining, building materials,transportation, chemical industry, water conservancy and hydropower, concrete mixing station,etc.
According to different kind of washing type, we have :
Spiral sand washing machine:
Wheel type sand washing machine:

1.This machine's structure is simple. The impeller drive device is separated with water and the watered materiel avoiding that the bearing is damaged by Deeping in water, sand, or contamination.
2.This machine has obvious advantages compared with screw sand washer. The details are as follows:
a.The medium and fine sand are washed away less. The washed construction sand's gradation and modulus of fineness can get the standard which is regulated in national ' construction sand' and ' construction scree and gravel'.
b.There are almost no wearing parts except screen mesh.

1.High capacity;
2.Heavy duty conveying paddles;
3.Fabricated with heavy duty tubs;
4.Oversize bearings and gears;
5.Thick-walled shafts;

6.Lower end bolted to fully machined stub shaft. Upper end mounted through flexible coupling to output shaft of gearbox;

7.The compound drive divides the operating load over an optimal combination of oversized helical and spur gears continuous
grinding and abrading log washer paddles;

8.Adjustable water discharge gates on both sides of lower end of the tube.

Product Details

Reinforced Tank And Base

Strong Stability, long service life

Seamless steel tube spindle

Strong rigidity, strong torsion, no deformation.

High Quality Transmission System

Copper core motor, high quality reducer, stainless steel bearing, stable and reliable running.

Thickened Wear- Resistant Blade

Wear resistance iron material, removable design, easy to replace

Wheel Sand Washing machine:
Model	Diameter of the wheel bucket (mm)	Speed of Rotor (r/min)	Feed opening size (mm)	Production Capacity (t/h)	Motor Power (kw)	Overall Dimensions (mm)	Weight (kg)
XS2600(Ⅰ)	2600	2.5	≤10	20-50	5.5	351520702672	2500
XS2600(Ⅱ)	2600	2.5	≤10	30-70	5.5	351522702672	2900
XS2800	2800	1.2	≤10	50-100	7.5	390033002990	3980
XS3200	3200	1	≤10	80-120	11	396544403410	7270
XS3600	3600	1	≤10	120-180	15	435545053810	9430

Spiral Sand Washing Machine:
Model	XL508	XL610	XL762	XL915	2XL915
Spiral Dia (mm)	508	610	762	915	915
Sink Length (mm)	6705	7225	7620	7585	7585
Feeding Size (mm)	≤10	≤10	≤10	≤10	≤10
Capacity (t/h)	20	40-50	50-75	100	200
Spiral Speed (r/min)	38	32	26	21	21
Motor Power (kw)	5.5	7.5	11	11	2*11
Water Consumption (t/h)	6-60	6-63	9-63	10-80	20-160
Dimension (mm)	800023431430	800020501400	854526503862	850028103600	842037653960
Weight (t)	2.67	3.80	5.23	6.27	11.11

Products Application

Sand washer is widely used for the washing of the material sand quarry, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station,etc

Machine difference

Difference of Wheel Sand Washer and Spiral Sand Washer:

Wheel Sand Washing machine:

Wheel type sand washer a professional cleaning devices for less than 8mm sand grain. Simple structure, impeller drive bearing unit with water and by water isolation material, to avoid bearing due to flooding, sand and pollutants cause to the damage
phenomenon.In the job, fine sand and stone powder wastage is minimal. In addition, the screen has almost no wearing parts, long
life,long-term without maintenance.

Spiral Sand Washing machine

Spiral sand washer can be used to clean sand, gravel, or for grading equipment. It is widely used in cleaning the materials
containing a large quantity of mud obvious. It's a good seal structure, fully enclosed gear, efficient, durable, good dehydration
effect, the power consumption is small, fine products remain stable.Its seal structure, the use of closed transmission device, has
high efficiency, durable, dehydration effect is good, small power consumption, and fine particle characteristics of products
remain stable.

Working Principle

Sand washer is widely used for the washing of the material sand quarry, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station,etc

Company Profile

Hengchang is a company integrating industry and trade. Its main business is the sale of jaw crushers, drying equipment, and mineral processing equipment. We have our own factory, professional production team, quality control team, 10 years of export experience and many loyal customers. We have experience in exporting products to Southeast Asia, Australia, Europe, South America and Africa, and have gained a good reputation. At the same time, our excellent product quality and best service have won the trust of customers all over the world. Many of our products have obtained CE certification, and most of our partner factories have ISO9001 and IEC certifications. Some have also obtained etification. We believe that our company is your good choice, because we respond quickly to your enquiry, and we will reply you within 4 hours. Our experienced English-speaking trading staff will listen to your requirements and choose the right products for your market according to your requirements.

Customer Visit & Our Service

Before-sale services:

We guide customers to choose the best and applicable device; provide the advanced, energy-saving and practical technological processes, as well as we are responsible for the planning and design of the site.
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts
Tips:
The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the
negotiation.

Product & Packaging

Packaging Details:

Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Delivery Time:

We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.

RFQ

Q:Why we believe in Gongyi Hengchang company?

A: 1.More than 28 years’ experience.

2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.

3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.

.
Q:Delivery time?

A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.

Q:Payment terms ?

A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.

Q:What will you do if the machine is broken down?

A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q:What should i do if I want to get a best quotation?

A: If you want a suitable type for you, please let us know your material and capacity.
