Home > Products > GAS CYLINDER > HG-IG ISO7866 3.6L/5L/10L Oxygen Cylinder,medical Aluminium Tank for Hospital

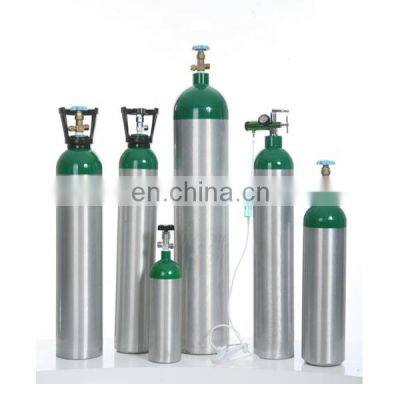

HG-IG ISO7866 3.6L/5L/10L Oxygen Cylinder,medical Aluminium Tank for Hospital
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
ISO7866 /SO9809-3 Aluminum and Steel Oxygen Cylinder,Alloy 6061/37Mn Medical Oxygen Gas Cylinder
-
ML6 Home Oxygen Therapy Devices With Aluminum Cylinder for Oxygen Inhaler Regulator for Oxygen Cylinder
-
0.3L Small Oxygen Bottle,Oxygen Cylinder for Aluminum Medical Cylinder
-
MD Serial Small Oxygen Aluminum Cylinder With CGA870 and Regulator, Cylinder Aluminium Box,supplying System
-
HG-IG 2L/4L/10L Oxygen Aluminum Portable Gas Cylinder Medical Oxygen Cylinder With TUV, BV, CE
-
M122/M150 High Pressure Aluminum AA6061 Emergency Pressure Medical Oxygen Cylinder Bag for Domestic
Product Description
Model | Capacity(Liter) Oxygen/Water | Service Pressure Bar/Psi | Outer Diameter mm/in | Length(no valve) mm/in | Weight(no valve) kg/1lbs | ||||||||
M2 | 40 | 0.3 | 153 | 2216 | 63.5 | 2.5 | 145 | 15.7 | 0.3/0.6 | ||||
M4/ A | 113 | 0.7 | 153 | 2216 | 81.5 | 3.2 | 221 | 8.7 | 0.7/1.5 | ||||
M6/ B | 165 | 1.0 | 153 | 2216 | 51.8 | 3.2 | 300 | 11.8 | 1.0/2/3 | ||||
ML6 | 165 | 1.2 | 139 | 2015 | 111 | 4.4 | 198 | 7.8 | 1.3/2.9 | ||||
ML7 | 195 | 1.4 | 139 | 2015 | 111 | 4.4 | 231 | 9.1 | 1.5/3.2 | ||||
M9/ C | 155 | 1.7 | 139 | 2015 | 111 | 4.4 | 277 | 10.9 | 1.7/3.7 | ||||
D | 425 | 2.9 | 139 | 2015 | 111 | 4.4 | 424 | 16.4 | 2.4/5.4 | ||||
M22 | 597 | 3.9 | 153 | 2216 | 133 | 5.2 | 414 | 16.3 | 3.7/8.0 | ||||
E | 680 | 4.6 | 139 | 2015 | 111 | 4.4 | 645 | 25.4 | 3.6/7.8 | ||||
M60 | 1607 | 10.5 | 153 | 2216 | 184 | 7.25 | 582 | 22.9 | 10.1/22.3 | ||||
Note: Parameters above for your reference only. More details pls feel free to contact us directly.
HG-IG ALUMINUM GAS CYLIINDER
ISO7866/GB11640
CO2 CYLINDER FOR BEVERAGE/ FOOD USE
O2 CYLINDER FOR MEDICAL USE
CGA870/CGA540/ CGA320/ TR21-4 VALVE

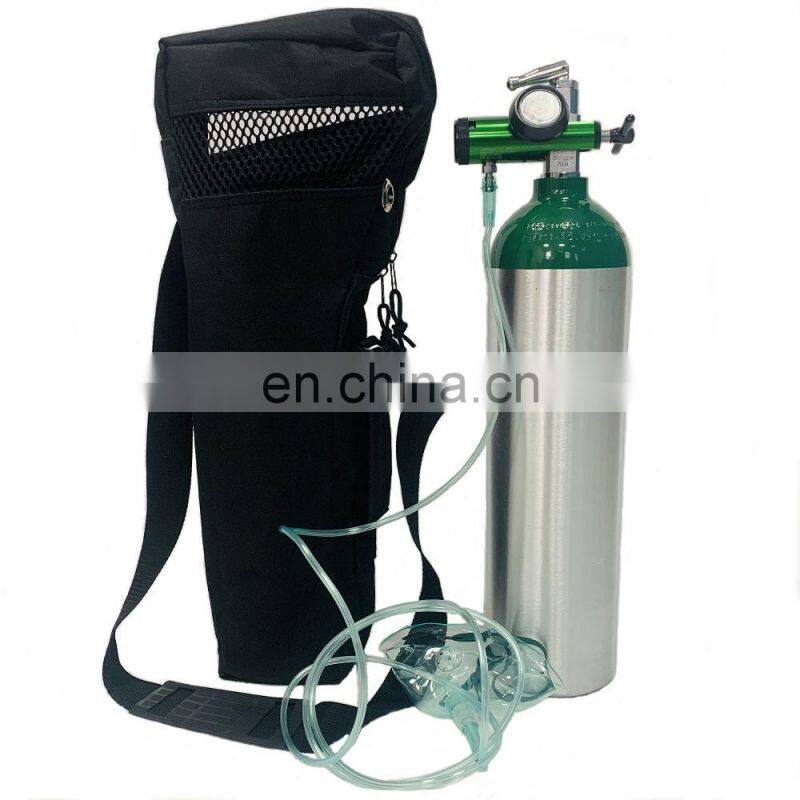

2.5L/ 2.9L KIT includes
①empty aluminum cylinder②CGA870 valve③click regulator④mask or cannula⑤black bag
①empty aluminum cylinder
②CGA870 valve
③click regulator
④mask or cannula
ME 4.6 L Aluminum Cylinder
Portable medical oxygen respirators are produced by advanced technology. Comparing with conventional respirators, we use aluminum or aluminum composite materials instead of steel ones, with weight reduction of 40%-70%. More preferable for people with breathing problems.
HG-IG medical cylinders are the ideal choice for home oxygen therapy, emergency medical services and pre-hospital care, as well as hospitals, nursing homes and other medical institutions.
CGA standard cylinder valve
Type: CGA870
Material: Brass
Medium: O2
Certificate: CE, API
Nominal Working Pressure: 2015psi
DN mm: 1.6
Inlet Thread: 3/4-16UNF
Outlet Thread: Post type
Safety Device Temperature& Pressure: 3360psi& 165 °F
Frame Modality: Axial connection type
Material: Brass
Medium: O2
Certificate: CE, API
Nominal Working Pressure: 2015psi
DN mm: 1.6
Inlet Thread: 3/4-16UNF
Outlet Thread: Post type
Safety Device Temperature& Pressure: 3360psi& 165 °F
Frame Modality: Axial connection type
Click-type Regulator
<CGA870 upper right & CGA540>
Compressed Gas Regulator with Brass Internal
Compressed Gas Regulator with Brass Internal
CGA870 flow rate: 0-15LPM medical oxygenMax Inlet Pressure: 3000PSI
Available in a variety of colors.(Green is standard)
Available in 4.6L aluminum oxygen cylinder
USE NO OIL
Available in a variety of colors.(Green is standard)
Available in 4.6L aluminum oxygen cylinder
USE NO OIL
HG-IG OXYGEN CONCENTRATOR
Max Flow:5L/min; 8L/min; 10L/min
More convenient to operate, no need
to fill in oxygen in addition.More info pls don't hesitate to contact me. Thanks.
Q1: Are you a manufacturer or a trading company?
Q2: Can I print our own logo on package?
A2: Sure! Customized package and OEM printing are available.
Q3: What's the payment terms?
A3: Payment<=10,000USD, 100% in advance. Payment>10,000USD, 50% T/T in advance ,balance before delivery.
Q4: What's your delivery time?
A4: Usually 15-20 days, depending on the quantity you ordered.
Q5: Which package of the cylinder?
A5: Bulk in one container; Hard carton; Wooden or Steel Pallet, depending on the goods and quantity, negotiable.
Q6: Can you supply gas filled cylinders?
A6: Of course we can. We have been exporting different gas filled cylinders since year 2008. We have mature channels.
A1: We are a professional manufacturer engaging in the field of gas system, and have got the permit of export for years as well.
Q2: Can I print our own logo on package?
A2: Sure! Customized package and OEM printing are available.
Q3: What's the payment terms?
A3: Payment<=10,000USD, 100% in advance. Payment>10,000USD, 50% T/T in advance ,balance before delivery.
Q4: What's your delivery time?
A4: Usually 15-20 days, depending on the quantity you ordered.
Q5: Which package of the cylinder?
A5: Bulk in one container; Hard carton; Wooden or Steel Pallet, depending on the goods and quantity, negotiable.
Q6: Can you supply gas filled cylinders?
A6: Of course we can. We have been exporting different gas filled cylinders since year 2008. We have mature channels.
