Home > Products > GAS CYLINDER > Cylinder Oxygen Regulator Flowmeter and Black Bag HG-IG ME/2.9L Medical Oxygen Aluminum Aluminum 6061,aluminium High 2.9liters
Cylinder Oxygen Regulator Flowmeter and Black Bag HG-IG ME/2.9L Medical Oxygen Aluminum Aluminum 6061,aluminium High 2.9liters
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
MD 2.9L Small Aluminum Portable Ambulance Medical Cylinder Supplying System
-
China 3.9L Small Steel/ Aluminum Medical Oxygen Cylinder With CGA870 Type Valve Breathing Oxygen Cylinder With Gauge Hot Sale
-
M Series GB Standard Medical Seamless Aluminum Oxygen Cylinder,Aluminum Material Oxygen Tank
-
China Best Portable Small Mini Aluminum Medical Oxygen Cylinder
-
High Quality Empty Aluminum 6061 Gas Cylinder/ Medical Portable Oxygen Cylinder 2.9L/ 4.6L
-
ALUMINIUM CYLINDER
Product Description
SPECIFICATIONS
Model | Capacity(Liter) Oxygen/Water | Service Pressure Bar/Psi | Outer Diameter mm/in | Length(no valve) mm/in | Weight(no valve) kg/1lbs | ||||||||
M2 | 40 | 0.3 | 153 | 2216 | 63.5 | 2.5 | 145 | 15.7 | 0.3/0.6 | ||||
M4/ A | 113 | 0.7 | 153 | 2216 | 81.5 | 3.2 | 221 | 8.7 | 0.7/1.5 | ||||
M6/ B | 165 | 1.0 | 153 | 2216 | 51.8 | 3.2 | 300 | 11.8 | 1.0/2/3 | ||||
ML6 | 165 | 1.2 | 139 | 2015 | 111 | 4.4 | 198 | 7.8 | 1.3/2.9 | ||||
ML7 | 195 | 1.4 | 139 | 2015 | 111 | 4.4 | 231 | 9.1 | 1.5/3.2 | ||||
M9/ C | 155 | 1.7 | 139 | 2015 | 111 | 4.4 | 277 | 10.9 | 1.7/3.7 | ||||
D | 425 | 2.9 | 139 | 2015 | 111 | 4.4 | 424 | 16.4 | 2.4/5.4 | ||||
M22 | 597 | 3.9 | 153 | 2216 | 133 | 5.2 | 414 | 16.3 | 3.7/8.0 | ||||
E | 680 | 4.6 | 139 | 2015 | 111 | 4.4 | 645 | 25.4 | 3.6/7.8 | ||||
M60 | 1607 | 10.5 | 153 | 2216 | 184 | 7.25 | 582 | 22.9 | 10.1/22.3 | ||||
Note: Parameters above for your reference only. More details pls feel free to contact us directly.

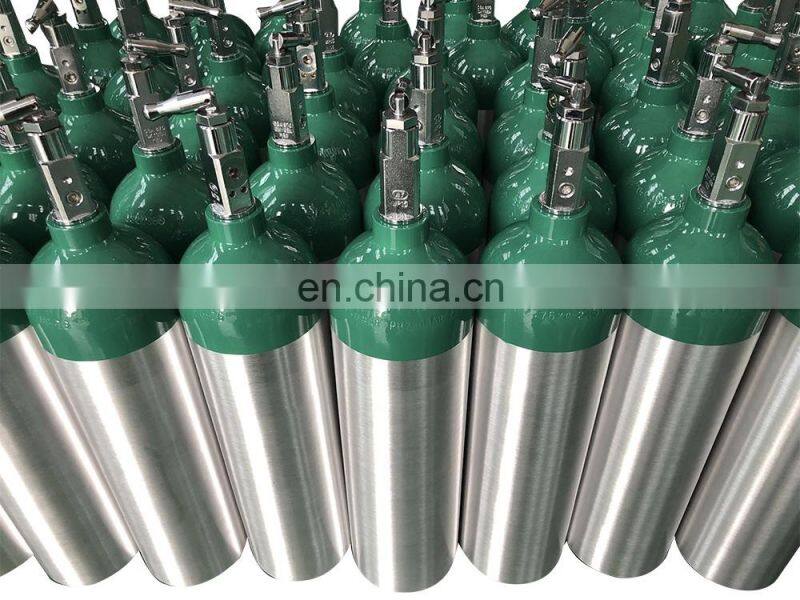

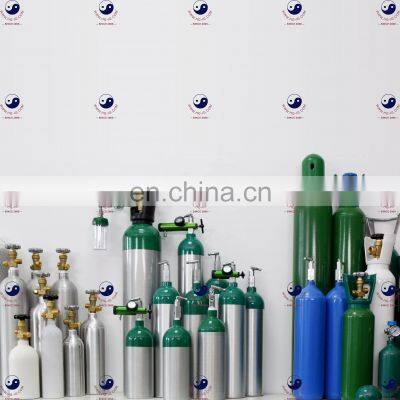

HG-IG ALUMINUM GAS CYLIINDER
ISO7866/GB11640
CO2 CYLINDER FOR BEVERAGE/ FOOD USE
O2 CYLINDER FOR MEDICAL USE
CGA870/CGA540/ CGA320/ TR21-4 VALVE
2.5L/ 2.9L KIT includes①empty aluminum cylinder②CGA870 valve③click regulator④mask or cannula⑤black bag
①empty aluminum cylinder
②CGA870 valve
③click regulator
④mask or cannula
ME 4.6 L Aluminum Cylinder
Portable medical oxygen respirators are produced by advanced technology. Comparing with conventional respirators, we use aluminum or aluminum composite materials instead of steel ones, with weight reduction of 40%-70%. More preferable for people with breathing problems.
HG-IG medical cylinders are the ideal choice for home oxygen therapy, emergency medical services and pre-hospital care, as well as hospitals, nursing homes and other medical institutions.
CGA standard cylinder valve
Type: CGA870
Material: Brass
Medium: O2
Certificate: CE, API
Nominal Working Pressure: 2015psi
DN mm: 1.6
Inlet Thread: 3/4-16UNF
Outlet Thread: Post type
Safety Device Temperature& Pressure: 3360psi& 165 °F
Frame Modality: Axial connection type
Material: Brass
Medium: O2
Certificate: CE, API
Nominal Working Pressure: 2015psi
DN mm: 1.6
Inlet Thread: 3/4-16UNF
Outlet Thread: Post type
Safety Device Temperature& Pressure: 3360psi& 165 °F
Frame Modality: Axial connection type

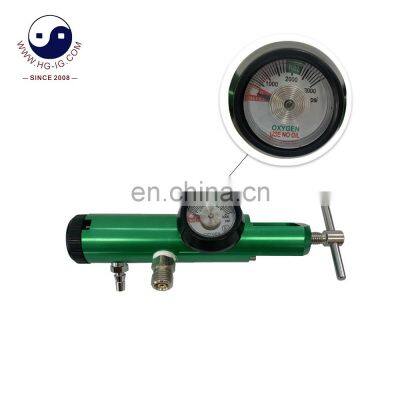

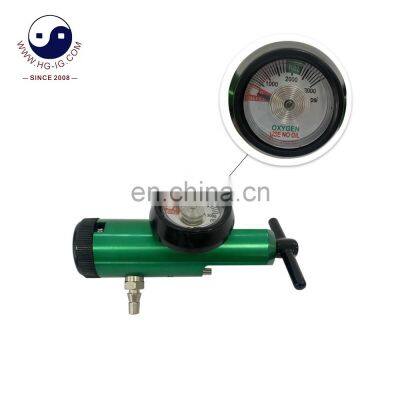

Click-type Regulator
<CGA870 upper right & CGA540>
Compressed Gas Regulator with Brass Internal
Compressed Gas Regulator with Brass Internal
CGA870 flow rate: 0-15LPM medical oxygenMax Inlet Pressure: 3000PSI
Available in a variety of colors.(Green is standard)
Available in 4.6L aluminum oxygen cylinder
USE NO OIL
Available in a variety of colors.(Green is standard)
Available in 4.6L aluminum oxygen cylinder
USE NO OIL
HG-IG OXYGEN CONCENTRATOR
Max Flow:5L/min; 8L/min; 10L/min
More convenient to operate, no need
to fill in oxygen in addition.More info pls don't hesitate to contact me. Thanks.
Q1: Are you a manufacturer or a trading company?
Q2: Can I print our own logo on package?
A2: Sure! Customized package and OEM printing are available.
Q3: What's the payment terms?
A3: Payment<=10,000USD, 100% in advance. Payment>10,000USD, 50% T/T in advance ,balance before delivery.
Q4: What's your delivery time?
A4: Usually 15-20 days, depending on the quantity you ordered.
Q5: Which package of the cylinder?
A5: Bulk in one container; Hard carton; Wooden or Steel Pallet, depending on the goods and quantity, negotiable.
Q6: Can you supply gas filled cylinders?
A6: Of course we can. We have been exporting different gas filled cylinders since year 2008. We have mature channels.
A1: We are a professional manufacturer engaging in the field of gas system, and have got the permit of export for years as well.
Q2: Can I print our own logo on package?
A2: Sure! Customized package and OEM printing are available.
Q3: What's the payment terms?
A3: Payment<=10,000USD, 100% in advance. Payment>10,000USD, 50% T/T in advance ,balance before delivery.
Q4: What's your delivery time?
A4: Usually 15-20 days, depending on the quantity you ordered.
Q5: Which package of the cylinder?
A5: Bulk in one container; Hard carton; Wooden or Steel Pallet, depending on the goods and quantity, negotiable.
Q6: Can you supply gas filled cylinders?
A6: Of course we can. We have been exporting different gas filled cylinders since year 2008. We have mature channels.
