Home > Products > Angular Contact Ball Bearing > Nsk Precision Screw Ball Bearing 100BAR10 CNC Spingle Bearing 100BAR10STYNDBLP4A 100x150x45
Nsk Precision Screw Ball Bearing 100BAR10 CNC Spingle Bearing 100BAR10STYNDBLP4A 100x150x45
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Super Precision NSK Angular Contact Ball Bearing 80BNR10 Ball Screw Bearing 80BNR10STDUELP4Y
-
Wholesales Angular Contact Ball Bearing 30/5-2RS 5x14x7mm
-
Precision Angular Contact Ball Bearing NSK 25TAC62BSUC10PN7B 25TAC62B
-
Ball Screw Support Bearing NSK 15TAC47BSUC10PN7B
-
7013CTYNDULP4 NSK Precision Machine Tool Bearings 7013C TYNDULP4 7013CTYNSULP4
-
7021 NSK Precision Angular Contact Ball Bearing 7021C TYNSULP4 7021CTYNSULP4
Product Description
Product Description
machine tool spindle bearing nsk 100BAR10STYNDBLP4A
Features for NSK 100BAR10STYNDBLP4A Spindle bearing:
Angular Contact Thrust Ball Bearings for Ball Screw Support
High precision angular contact thrust ball bearings to support precision ball screws, have better performance than earlier
combinations of angular contact ball bearings or combinations using thrust bearings. They are especially suitable for high precision machine-tool feeding mechanisms and similar applications.
TAC B Series (Machine Tool Applications)
TAC02 and 03 Series (Electric Injection Molding Machines)
TAC B and TAC02, 03 Differences
ROBUST series
NSK high speed machine tool spindle bearing 100BAR10S Specification :
Bearing Model | 100BAR10STYNDBLP4A NSK high speed Angular contact ball bearing |
Application | Machine Tool |
Type | Ball Screw Support Ball Bearing |
number | 100BAR10S 100BAR10H |
(dxDx2B) | 100x150x45mm |
Weight | 1.4 KG |
Lead Time | Within 3 Days |
Contact | jessi (Ms) |
SKYPE | tradingbearing |
WhatsApp / Webchat | +86 18753110215 |
Email | lbc001 at |
Detailed Images

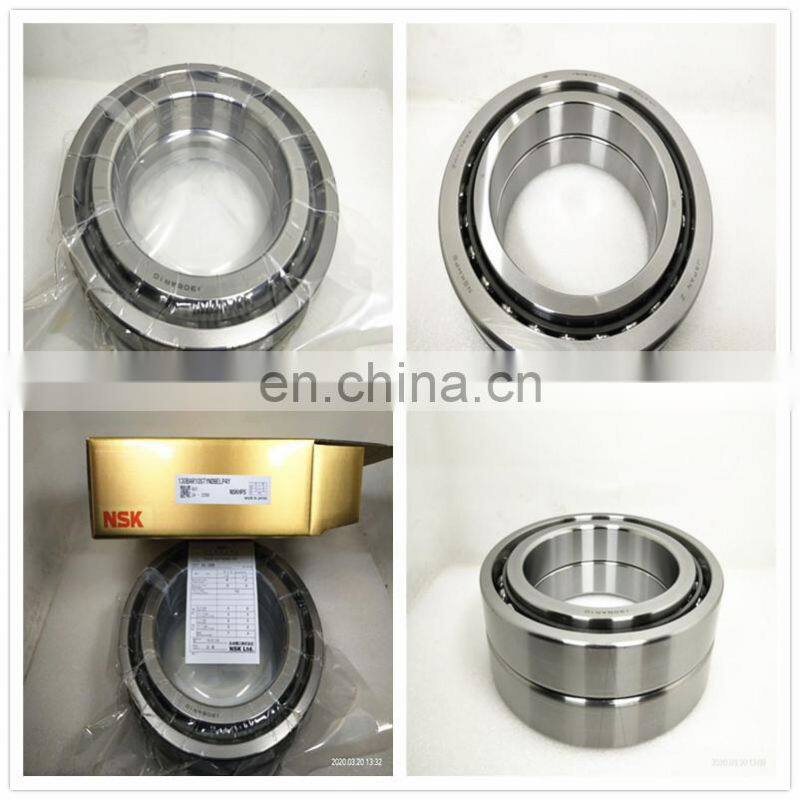

NSK spindle bearing 100BAR10STYNDBLP4A pictures series
NSK bearing 100BAR10STYNDBLP4A series numbering system
NSK spindle bearing 100BAR10STYNDBLP4A model series

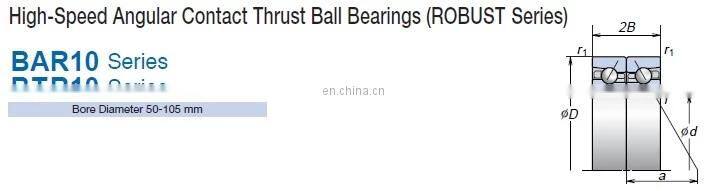

nsk high speed angular contact thrust ball bearing robust series
ype | (d) | (D) | 2B | Type | (d) | (D) | 2B |
50BAR10S | 50 | 80 | 28.5 | 110BAR10S | 110 | 170 | 54 |
55BAR10S | 55 | 90 | 33 | 120BAR10S | 120 | 180 | 54 |
60BAR10S | 60 | 95 | 33 | 130BAR10S | 130 | 200 | 63 |
65BAR10S | 65 | 100 | 33 | 140BAR10S | 140 | 210 | 63 |
70BAR10S | 70 | 110 | 36 | 150BAR10S | 150 | 225 | 67.5 |
75BAR10S | 75 | 115 | 36 | 160BAR10S | 160 | 240 | 72 |
80BAR10S | 80 | 125 | 40.5 | 170BAR10S | 170 | 260 | 81 |
85BAR10S | 85 | 130 | 40.5 | 180BAR10S | 180 | 280 | 90 |
90BAR10S | 90 | 140 | 45 | 190BAR10S | 190 | 290 | 90 |
95BAR10S | 95 | 145 | 45 | 200BAR10S | 200 | 310 | 99 |
100BAR10S | 100 | 150 | 45 | 105BAR10S | 105 | 160 | 49.5 |
Shipping
PACKING:bag+box+carton+pallet/wooden case.
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Factory
Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Certifications
Main Products
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
we can offer the bearing brand.
