7308 Single Row Angular Contact Ball Bearing F A G 7311BMP 7311-B-MP 55*120*29
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
7310B Germany Angular Contact Ball Bearing F A G 7310BMP Air Compressor Bearing Assembly 7310BMPUA
-
7308B Angular Contact Ball Bearing F A G 7308BMP Rotary Drilling Rig Bearing 7308-B-XL-MP
-
Ultra High-speed 45BNR10 Angular Contact Ball Bearing 45BNR10HTYNDUP4 Ball Screw
-
7315B Angular Contact Ball Bearing F A G 7315-B-TVP 7215-B-XL-TVP Rotary Drilling Rig Bearing 7310BTVP 7310 BTVP
-
Nachi 35BVV07X-6 Gearbox Bearing Size 35x72x35 mm
-
NSK 30TAC62BDBC10PN7A Ball Screw Support Ball Bearing Angular Contact Ball Bearing
Product Description
Product Description
high Precision Bearing 7311.B.XL.MP Angular contact ball bearing 7311B.MP 7311BMP
Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis. This means that they are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.
Bearing Designation system
Bearing Designation system
A ：30° contact angle
AB：20° contact angle (inch bearing
AC：25° contact angle
B：40° contact angle
E：Optimized internal design
B : Modified internal construction
JP : Sheet steel cage
MP :Solid brass cage
TVH / TVP : Solid cage made from glass fibre reinforced polyamide
UA :Universal design for fitting in pairs, bearing pair has small axial internal clearance in O and X arrangement
UL: Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangement
UO: Universal design for fitting in pairs, bearing pair is clearance-free in O and X arrangement
JP : Sheet steel cage
MP :Solid brass cage
TVH / TVP : Solid cage made from glass fibre reinforced polyamide
UA :Universal design for fitting in pairs, bearing pair has small axial internal clearance in O and X arrangement
UL: Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangement
UO: Universal design for fitting in pairs, bearing pair is clearance-free in O and X arrangement
2RS :Contact seals on both sides
Open angular contact ball bearings can be used at operating temperatures from –30 °C to +150 °C. Bearings with a diameter D ＞ 240 mm are dimensionally stable up to +200 °C.
Angular contact ball bearings with cages made from glass fibre reinforced polyamide are suitable for operating temperatures up to+120 °C, restricted by the cage material.
Open angular contact ball bearings can be used at operating temperatures from –30 °C to +150 °C. Bearings with a diameter D ＞ 240 mm are dimensionally stable up to +200 °C.
Angular contact ball bearings with cages made from glass fibre reinforced polyamide are suitable for operating temperatures up to+120 °C, restricted by the cage material.
Bearing sets, matched bearings
DB：Two bearings matched for mounting back-to-back
DF：Two bearings matched for mounting face-to-face
DT：Two bearings matched formounting in tandem
Common Applications:
* Machine tools* Gearboxes* Pumps* Printing machinery* Motors* CNC machinery
* Machine tools* Gearboxes* Pumps* Printing machinery* Motors* CNC machinery
name | high Precision Bearing 7311B.MP Angular contact ball bearing B-XL-MP |
ID | 55 mm |
OD | 120 mm |
B | 27 mm |
Product weight | 1.45 kg |
Cage Material: | Phenolic Resin |
ball material | chrome steel |
mail | lbc001 at |
Tel | +86-18753110215 |
Details Images
7311-B-MP 7311-B-XL-MP Angular contact ball bearing 7311B 7311BMP
steel cage brass cage nylon cage
7311B angular contact ball bearing 7311 55X120X27
Related Products
Angular contact ball bearing single row

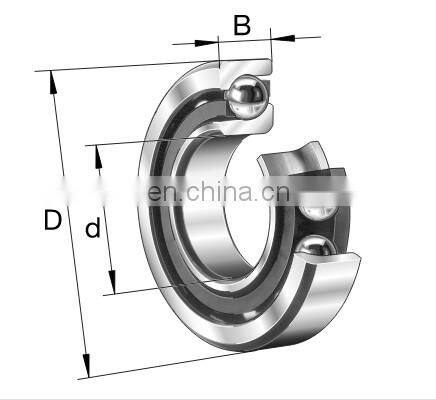

Bearing | d | D | B |
mm | mm | mm | |
7301-B-XL-JP | 12 | 37 | 12 |
7301-B-XL-TVP | 12 | 37 | 12 |
7302-B-XL-JP | 15 | 42 | 13 |
7302-B-XL-MP | 15 | 42 | 13 |
7302-B-XL-TVP | 15 | 42 | 13 |
7303-B-XL-JP | 17 | 47 | 14 |
7303-B-XL-TVP | 17 | 47 | 14 |
7304-B-XL-JP | 20 | 52 | 15 |
7304-B-XL-MP | 20 | 52 | 15 |
7304-B-XL-TVP | 20 | 52 | 15 |
7305-B-XL-JP | 25 | 62 | 17 |
7305-B-XL-MP | 25 | 62 | 17 |
7305-B-XL-TVP | 25 | 62 | 17 |
7306-B-XL-JP | 30 | 72 | 19 |
7306-B-XL-MP | 30 | 72 | 19 |
7306-B-XL-TVP | 30 | 72 | 19 |
7307-B-XL-JP | 35 | 80 | 21 |
7307-B-XL-MP | 35 | 80 | 21 |
7307-B-XL-TVP | 35 | 80 | 21 |
7308-B-XL-JP | 40 | 90 | 23 |
7308-B-XL-MP | 40 | 90 | 23 |
7308-B-XL-TVP | 40 | 90 | 23 |
7309-B-XL-JP | 45 | 100 | 25 |
7309-B-XL-MP | 45 | 100 | 25 |
7309-B-XL-TVP | 45 | 100 | 25 |
7310-B-XL-JP | 50 | 110 | 27 |
7310-B-XL-MP | 50 | 110 | 27 |
7310-B-XL-TVP | 50 | 110 | 27 |
7311-B-XL-JP | 55 | 120 | 29 |
7311-B-XL-MP | 55 | 120 | 29 |
7311-B-XL-TVP | 55 | 120 | 29 |
7312-B-XL-JP | 60 | 130 | 31 |
7312-B-XL-MP | 60 | 130 | 31 |
7312-B-XL-TVP | 60 | 130 | 31 |
7313-B-XL-JP | 65 | 140 | 33 |
7313-B-XL-MP | 65 | 140 | 33 |
7313-B-XL-TVP | 65 | 140 | 33 |
7314-B-XL-JP | 70 | 150 | 35 |
7314-B-XL-MP | 70 | 150 | 35 |
7314-B-XL-TVP | 70 | 150 | 35 |
7315-B-XL-JP | 75 | 160 | 37 |
7315-B-XL-MP | 75 | 160 | 37 |
7315-B-XL-TVP | 75 | 160 | 37 |
7316-B-XL-JP | 80 | 170 | 39 |
7316-B-XL-MP | 80 | 170 | 39 |
7316-B-XL-TVP | 80 | 170 | 39 |
7317-B-XL-JP | 85 | 180 | 41 |
7317-B-XL-MP | 85 | 180 | 41 |
7317-B-XL-TVP | 85 | 180 | 41 |
7318-B-XL-JP | 90 | 190 | 43 |
7318-B-XL-MP | 90 | 190 | 43 |
7318-B-XL-TVP | 90 | 190 | 43 |
7319-B-XL-JP | 95 | 200 | 45 |
7319-B-XL-MP | 95 | 200 | 45 |
7319-B-XL-TVP | 95 | 200 | 45 |
7320-B-XL-JP | 100 | 215 | 47 |
7320-B-XL-MP | 100 | 215 | 47 |
7320-B-XL-TVP | 100 | 215 | 47 |
7321-B-XL-MP | 105 | 225 | 49 |
7322-B-XL-JP | 110 | 240 | 50 |
7322-B-XL-MP | 110 | 240 | 50 |
7322-B-XL-TVP | 110 | 240 | 50 |
7324-B-XL-MP | 120 | 260 | 55 |
7324-B-XL-TVP | 120 | 260 | 55 |
7326-B-XL-MP | 130 | 280 | 58 |
7326-B-XL-TVP | 130 | 280 | 58 |
7328-B-MP | 140 | 300 | 62 |
7330-B-MP | 150 | 320 | 65 |
7332-B-MP | 160 | 340 | 68 |
7334-B-MP | 170 | 360 | 72 |
7336-B-MP | 180 | 380 | 75 |
7338-B-MP | 190 | 400 | 78 |
7340-B-MP | 200 | 420 | 80 |
7344-B-MP | 220 | 460 | 88 |
7348-B-MP | 240 | 500 | 95 |
7352-B-MP | 260 | 540 | 102 |
7356-B-MP | 280 | 580 | 108 |
7360-B-MP | 300 | 620 | 109 |
7364-B-MP | 320 | 670 | 112 |
7368-B-MPB | 340 | 710 | 118 |
