7906C HCP4 Super-precision Angular Contact Ball Bearings 71906 Sealed Bearing 71906-2RSP4
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
KA050CP0 Equal Section Thin Section Ball Bearing KA050XP0 Robot Arm Bearing KA050AR0
-
High Precision Equal Section Thin Section Ball Bearing KA035XP0 KA035AR0 KA035CP0
-
KC055CPO SC055CPO Four Point Thin Section Angular Contact Ball Bearing KC055XPO
-
KAA Series Thin Section Bearings KAA10AG0 for Robot Bearing KAA15AG0
-
3312A Doubel Row Angular Contact Ball Bearings 3312 3312-zz
-
5205-2RS 5205B 5205 2RS Angular Contact Ball Bearing 3205
Product Description
Product Description

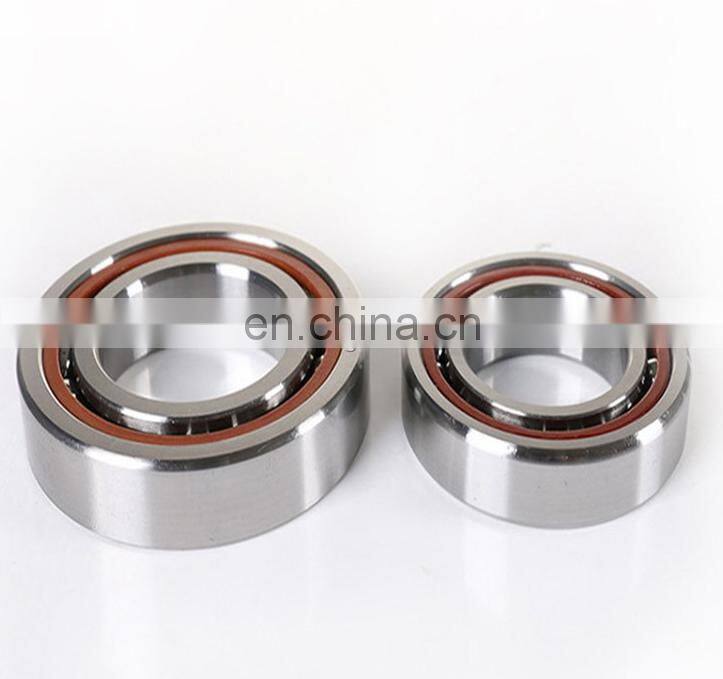

S71906CB/HCP4A Super-precision angular contact ball bearings S71906 CB/P4A High-speed sealed bearing 71906-2RSP4
Structure-Ceramic Ball/Angular Contact ball
Model number-S71906CB/HCP4A
Size :Inner ring(mm)-30 Outer ring(mm)-47Width(mm)-9 Weight(Kg)-0.05
Materials-Chrome steel/GCR15
Precision grade-P4/P2
seal ；rubber seal
Lubrication type-Grease lubrication
Contact Angle-C=15°;AC=25°
Material(Ball)-SN24:Ceramic ball(Si3N4)
Number of Row-Single rows
Material(Cage)-TN /PN
Combination-
SU:Universal combination (single row)
DU:Universal combination (double rows)
DB: Back-to-back combination
DF: Face-to-face combination
DT: Parallel combination
DBD.DFD.DTD: Three rows
DBB.DFF.DBT.DFT.DTT: Four rows
DB: Back-to-back combination
DF: Face-to-face combination
DT: Parallel combination
DBD.DFD.DTD: Three rows
DBB.DFF.DBT.DFT.DTT: Four rows
Categories:Angular Contact Ball Bearings Ceramic Ball Bearings
Related Search:707AC / CHQ1P4,707C Ceramic Ball Bearings,707C Spindle bearing,707C High Speed Bearing
Product Features
Angular Contact Ball bearing with Ceramic balls (Si3N4), used in high precision Spindle and Motors
Series Introduction
High Speed Ceramic Ball Type:ISO 10 Series - highest load, second lowest speed
bearings-70 Series Angular Contact Bearings Series
Model No.
7000HQ1,7001HQ1,7002HQ1,7003HQ1,7004HQ1,7005HQ1,7006HQ1,7007HQ1,7008HQ1,7009HQ1,
7010HQ1,7011HQ1,7012HQ1,7013HQ1,7014HQ1,7015HQ1,7016HQ1,7017HQ1,7018HQ1
Applications High Speed Ceramic Ball Angular contact bearing applications :
electric motors,Spindle,automotive applications, home appliances, industrialequipment
Product Features
Angular Contact Ball bearing with Ceramic balls (Si3N4), used in high precision Spindle and Motors
Series Introduction
High Speed Ceramic Ball Type:ISO 10 Series - highest load, second lowest speed
bearings-70 Series Angular Contact Bearings Series
Model No.
7000HQ1,7001HQ1,7002HQ1,7003HQ1,7004HQ1,7005HQ1,7006HQ1,7007HQ1,7008HQ1,7009HQ1,
7010HQ1,7011HQ1,7012HQ1,7013HQ1,7014HQ1,7015HQ1,7016HQ1,7017HQ1,7018HQ1
Applications High Speed Ceramic Ball Angular contact bearing applications :
electric motors,Spindle,automotive applications, home appliances, industrialequipment
Electro-spindles •
Metal cutting machines
• Woodworking machines
• Milling machines •
Machining centres
Requirements • Efficient sealing against contaminants • Low energy consumption • Long service life • Facilitated mounting •Increased machine uptime • High power density for compact designs • High positioning accuracy
Requirements • Efficient sealing against contaminants • Low energy consumption • Long service life • Facilitated mounting •Increased machine uptime • High power density for compact designs • High positioning accuracy
name | S71906CB/HCP4A Super-precision angular contact ball bearings |
ball material | Si3N4 |
ID | 30mm |
OD | 47 mm |
B | 9 mm |
Product weight | 0.05kg |
Cage Material: | TN |
material | chrome steel |
Tel | +86-18710180456 |
Related Products
bearing | d | D | B | c | Da | da | contact angle | weight KG |
B7000-C-2RSD-T-P4S-UL | 10 | 26 | 8 | 6.4 | 22 | 14 | 15° | 0.02 |
B7001-C-2RSD-T-P4S-UL | 12 | 28 | 8 | 6.7 | 24.5 | 16.5 | 15° | 0.02 |
B7002-C-2RSD-T-P4S-UL | 15 | 32 | 9 | 7.6 | 28 | 19 | 15° | 0.03 |
B7003-C-2RSD-T-P4S-UL | 17 | 35 | 10 | 8.5 | 32 | 21 | 15° | 0.04 |
B7004-C-2RSD-T-P4S-UL | 20 | 42 | 12 | 10.2 | 37 | 25 | 15° | 0.07 |
B7005-C-2RSD-T-P4S-UL | 25 | 47 | 12 | 10.8 | 42 | 30 | 15° | 0.08 |
B7006-C-2RSD-T-P4S-UL | 30 | 55 | 13 | 12.3 | 49 | 36 | 15° | 0.11 |
B7007-C-2RSD-T-P4S-UL | 35 | 62 | 14 | 13.5 | 56 | 41 | 15° | 0.15 |
B7008-C-2RSD-T-P4S-UL | 40 | 68 | 15 | 14.7 | 62 | 46 | 15° | 0.19 |
B7009-C-2RSD-T-P4S-UL | 45 | 75 | 16 | 16 | 69 | 51 | 15° | 0.24 |
B7010-C-2RSD-T-P4S-UL | 50 | 80 | 16 | 16.7 | 74 | 56 | 15° | 0.25 |
B7011-C-2RSD-T-P4S-UL | 55 | 90 | 18 | 18.7 | 83 | 62 | 15° | 0.38 |
B7012-C-2RSD-T-P4S-UL | 60 | 95 | 18 | 19.4 | 88 | 67 | 15° | 0.4 |
Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
