Product Description
Product Description
high Precision Bearing 7320.B.XL.MP Angular contact ball bearing 7320DB.MP 7320BMP
Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis. This means that they are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.
Bearing Designation system
Bearing Designation system
A ：30° contact angle
AB：20° contact angle (inch bearing
AC：25° contact angle
B：40° contact angle
E：Optimized internal design
B : Modified internal construction
JP : Sheet steel cage
MP :Solid brass cage
TVH / TVP : Solid cage made from glass fibre reinforced polyamide
UA :Universal design for fitting in pairs, bearing pair has small axial internal clearance in O and X arrangement
UL: Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangement
UO: Universal design for fitting in pairs, bearing pair is clearance-free in O and X arrangement
JP : Sheet steel cage
MP :Solid brass cage
TVH / TVP : Solid cage made from glass fibre reinforced polyamide
UA :Universal design for fitting in pairs, bearing pair has small axial internal clearance in O and X arrangement
UL: Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangement
UO: Universal design for fitting in pairs, bearing pair is clearance-free in O and X arrangement
2RS :Contact seals on both sides
Open angular contact ball bearings can be used at operating temperatures from –30 °C to +150 °C. Bearings with a diameter D ＞ 240 mm are dimensionally stable up to +200 °C.
Angular contact ball bearings with cages made from glass fibre reinforced polyamide are suitable for operating temperatures up to+120 °C, restricted by the cage material.
Open angular contact ball bearings can be used at operating temperatures from –30 °C to +150 °C. Bearings with a diameter D ＞ 240 mm are dimensionally stable up to +200 °C.
Angular contact ball bearings with cages made from glass fibre reinforced polyamide are suitable for operating temperatures up to+120 °C, restricted by the cage material.
Bearing sets, matched bearings
DB：Two bearings matched for mounting back-to-back
DF：Two bearings matched for mounting face-to-face
DT：Two bearings matched formounting in tandem
Common Applications:
* Machine tools* Gearboxes* Pumps* Printing machinery* Motors* CNC machinery
* Machine tools* Gearboxes* Pumps* Printing machinery* Motors* CNC machinery

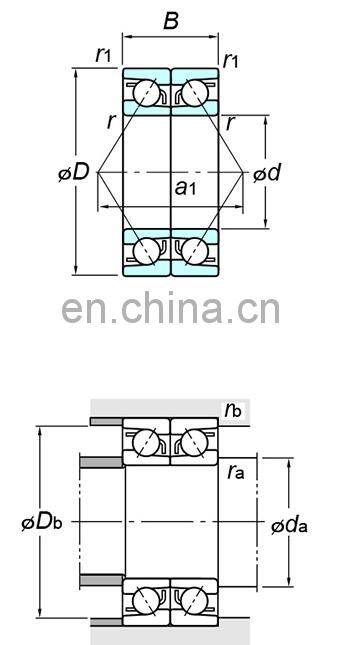

name | high Precision Bearing 7320BDB Angular contact ball bearing B-XL-MP |
ID | 100 mm |
OD | 215 mm |
B | 94 mm |
Product weight | 15.2 kg |
Cage Material: | Phenolic Resin |
ball material | chrome steel |
mail | lbc001 at |
Tel | +86-18753110215 |

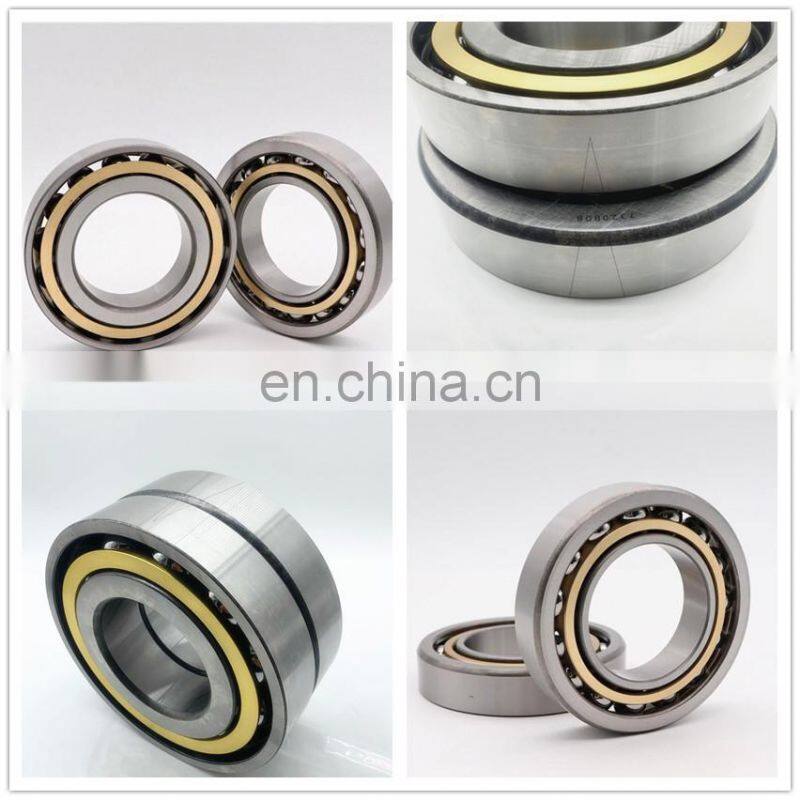

Details Images
7320DB 7320BDB back to back angular contact ball bearing copper cage 100x215x94mm
if you want to order,pls contact with us first to give a good price and good freight.
7320-B-MP 7320-B-XL-MP Angular contact ball bearing 7320B 7320BMP
steel cage brass cage nylon cage
7311B angular contact ball bearing 7311 55X120X27
Related Products
Angular contact ball bearing single row
Dimension (mm) | Single row code | Back-to-Back | Face-to-Face | Weight | ||||
d | D | B | DB | DF | kgs | |||
100 | 150 | 24 | 7020 | 7020DB | 7020DF | 1.37 | ||
100 | 150 | 24 | 7020B | 7020BDB | 7020BDF | 1.37 | ||
100 | 180 | 34 | 7220 | 7220DB | 7220DF | 3.32 | ||
100 | 180 | 34 | 7220B | 7220BDB | 7220BDF | 3.32 | ||
100 | 215 | 47 | 7320 | 7320DB | 7320DF | 7.53 | ||
100 | 215 | 47 | 7320B | 7320BDB | 7320BDF | 7.53 | ||
105 | 160 | 26 | 7021 | 7021DB | 7021DF | 1.73 | ||
105 | 190 | 36 | 7221 | 7221DB | 7221DF | 3.95 | ||
105 | 190 | 36 | 7221B | 7221BDB | 7221BDF | 3.95 | ||
105 | 225 | 49 | 7321 | 7321DB | 7321DF | 8.62 | ||
105 | 225 | 49 | 7321B | 7321BDB | 7321BDF | 8.62 | ||
110 | 170 | 28 | 7022 | 7022DB | 7022DF | 2.14 | ||
110 | 170 | 28 | 7022B | 7022BDB | 7022BDF | 2.14 | ||
110 | 200 | 38 | 7222 | 7222DB | 7222DF | 4.65 | ||
110 | 200 | 38 | 7222B | 7222BDB | 7222BDF | 4.65 | ||
110 | 240 | 50 | 7322 | 7322DB | 7322DF | 10.1 | ||
110 | 240 | 50 | 7322B | 7322BDB | 7322BDF | 10.1 | ||
120 | 180 | 28 | 7024 | 7024DB | 7024DF | 2.27 | ||
120 | 180 | 28 | 7024B | 7024BDB | 7024BDF | 2.27 | ||
120 | 215 | 40 | 7224 | 7224DB | 7224DF | 5.49 | ||
120 | 215 | 40 | 7224B | 7224BDB | 7224BDF | 5.49 | ||
120 | 260 | 55 | 7324 | 7324DB | 7324DF | 12.6 | ||
120 | 260 | 55 | 7324B | 7324BDB | 7324BDF | 12.6 | ||
130 | 200 | 33 | 7026 | 7026DB | 7026DF | 3.43 | ||
130 | 200 | 33 | 7026B | 7026BDB | 7026BDF | 3.43 | ||
130 | 230 | 40 | 7226 | 7226DB | 7226DF | 6.21 | ||
130 | 230 | 40 | 7226B | 7226BDB | 7226BDF | 6.21 | ||
130 | 280 | 58 | 7326 | 7326DB | 7326DF | 15.4 | ||
130 | 280 | 58 | 7326B | 7326BDB | 7326BDF | 15.4 | ||
140 | 190 | 24 | 7928 | 7928DB | 7928DF | 1.9 | ||
140 | 190 | 24 | 7928B | 7928BDB | 7928BDF | 1.8 | ||
140 | 210 | 33 | 7028 | 7028DB | 7028DF | 3.64 | ||
140 | 210 | 33 | 7028B | 7028BDB | 7028BDF | 3.64 | ||
140 | 250 | 42 | 7228 | 7228DB | 7228DF | 7.76 | ||
140 | 250 | 42 | 7228B | 7228BDB | 7228BDF | 7.76 | ||
140 | 300 | 62 | 7328 | 7328DB | 7328DF | 18.8 | ||
140 | 300 | 62 | 7328B | 7328BDB | 7328BDF | 18.8 | ||
145 | 220 | 38 | AC2922 | AC2922DB | AC2922DF | 4.82 | ||
150 | 210 | 28 | 7930 | 7930DB | 7930DF | 2.9 | ||
150 | 210 | 28 | 7930B | 7930BDB | 7930BDF | 2.9 | ||
150 | 210 | 25 | AC3021B | AC3021BDB | — | 2.73 | ||
150 | 225 | 35 | 7030 | 7030DB | 7030DF | 4.43 | ||
150 | 225 | 35 | 7030B | 7030BDB | 7030BDF | 4.43 | ||
150 | 229.9 | 35 | AC302335B | AC302335BDB | — | 4.7 | ||
150 | 270 | 45 | 7230 | 7230DB | 7230DF | 9.75 | ||
150 | 270 | 45 | 7230B | 7230BDB | 7230BDF | 9.75 | ||
150 | 320 | 65 | 7330 | 7330DB | 7330DF | 22.4 | ||
150 | 320 | 65 | 7330B | 7330BDB | 7330BDF | 22.4 | ||
Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
