NSK 30TAC62BDBC10PN7A Ball Screw Support Ball Bearing Angular Contact Ball Bearing
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
7215B Angular Contact Ball Bearing F A G 7215-B-TVP 7215-B-XL-TVP 75x130x25 Bearing
-
3306B Angular Contact Ball Bearing 3306-BD-XL-TVH 3306-BD-TVH 3306 A
-
F-560119.02.SKL Auto Differential Bearing F-560119.02 F-560119 Double Row Anguar Contact Ball Bearing
-
KA020AR0 Kaydon Precision Equal Section Thin Ball Bearing KA020ARO KA020XP0 KA020CP0
-
4306BB 4306-BB-TVH Angular Contact Ball Bearing 4306ATN9 4306 ATN9 4306B 4306A 30x72x27
-
3303-B-TVH Germany Angular Contact Ball Bearing 3303TVH 3303ATN9 3303 ATN9 3303A
Product Description
Product Description
BALL SCREW SUPPORT BEARINGS
Angular Contact Thrust Ball Bearings for Ball Screw Support
High precision angular contact thrust ball bearings to support precision ball screws, have better performance than earlier
combinations of angular contact ball bearings or combinations using thrust bearings. They are especially suitable for high precision machine-tool feeding mechanisms and similar applications.
TAC B Series (Machine Tool Applications)
TAC02 and 03 Series (Electric Injection Molding Machines)
TAC B and TAC02, 03 Differences

Bearing Model | 30TAC62BDBC10PN7A with seal 30TAC62BDDGDBC10PN7A |
Application | Machine Tool |
Type | 60° Ball Screw Support Ball Bearing |
Structure | Angular Contact Thrust Ball Bearing |
(dxDxB) | 30x60x15 mm |
Weight | 0.45 KG |
Lead Time | Within 3 Days |
Contact | jessi (Ms) |
SKYPE | 2pcs for one set. |
WhatsApp / Webchat | +86 18753110215 |
Email | lbc001 at |
Detailed Images

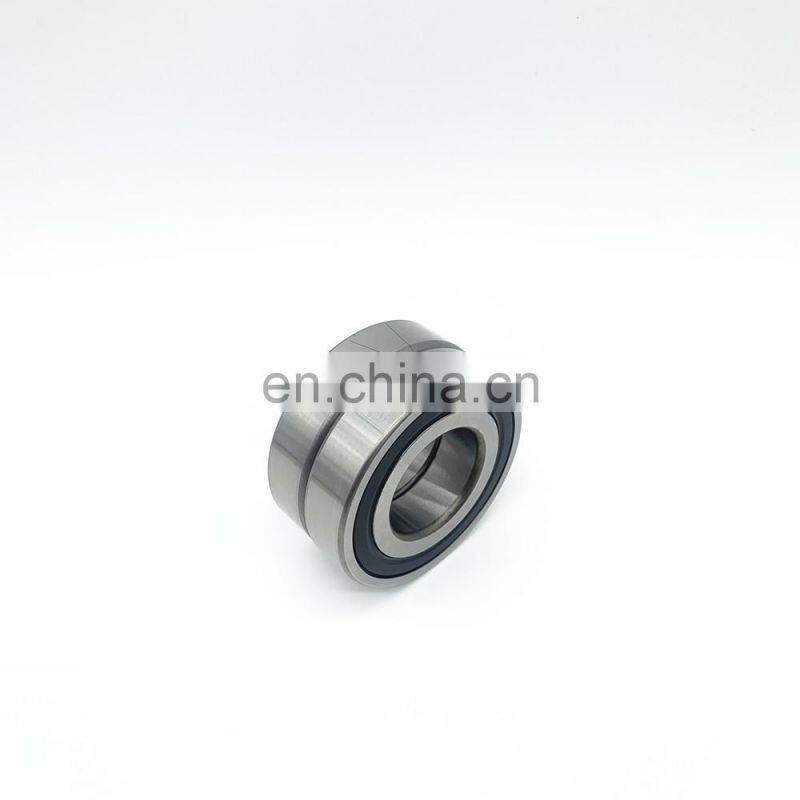

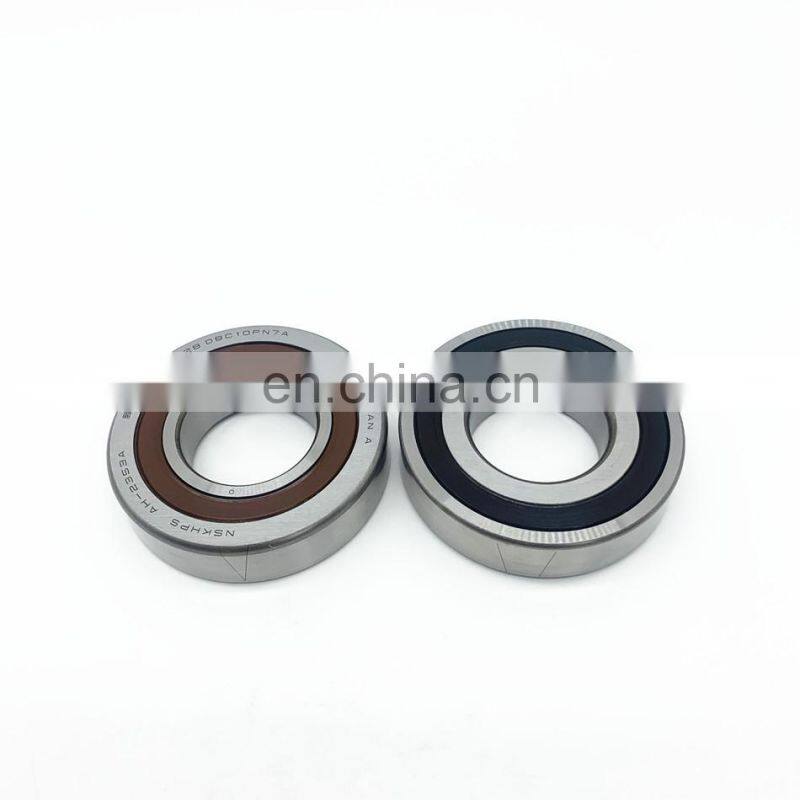

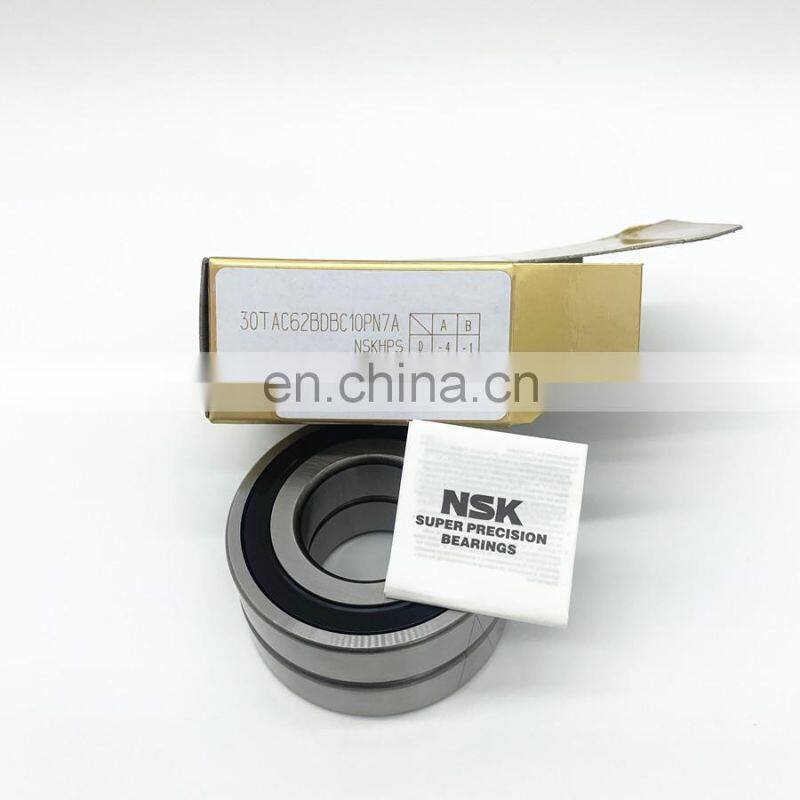

30TAC62BDBC10PN7A with seals ball Screw support ball bearing 30TAC62BDDG DBC10PN7A
30TAC62BDDGDBC10PN7A




Angular Contact Thrust Ball Bearings for Supporting Screw | ||||||
Model No. | d(mm) | D(mm) | B(mm) | |||
30TAC62BDDG | 30 | 62 | 12 | |||
35TAC72BDDG | 35 | 72 | 15 | |||
40TAC72BDDG | 40 | 72 | 15 | |||
40TAC90BDDG | 40 | 90 | 20 | |||
45TAC100BDDG | 45 | 100 | 20 | |||
15TAC02AT85 | 15 | 35 | 11 | |||
25TAC02AT85 | 25 | 32 | 15 | |||
TAC35-2T85 | 35 | 90 | 23 | |||
40TAC03AT85 | 40 | 90 | 23 | |||
45TAC03AT85 | 45 | 100 | 25 | |||
TAC45-2T85 | 45 | 110 | 27 | |||
50TAC03AT85 | 50 | 110 | 27 | |||
55TAC03AT85 | 55 | 120 | 29 | |||
60TAC03AT85 | 60 | 130 | 31 | |||
80TAC03AM | 80 | 170 | 39 | |||
100TAC03CMC | 100 | 215 | 47 | |||
120TAC03CMC | 120 | 260 | 55 | |||
760202TN1 | 15 | 35 | 11 | |||
760203TN1 | 17 | 40 | 12 | |||
760204TN1 | 20 | 47 | 14 | |||
760205TN1 | 25 | 52 | 15 | |||
760206TN1 | 30 | 62 | 16 | |||
760207TN1 | 35 | 72 | 17 | |||
760208TN1 | 40 | 80 | 18 | |||
760209TN1 | 45 | 85 | 19 | |||
760210TN1 | 50 | 90 | 20 | |||
760211TN1 | 55 | 100 | 21 | |||
760212TN1 | 60 | 110 | 22 | |||
760213TN1 | 65 | 120 | 23 | |||
760214TN1 | 70 | 125 | 24 | |||
760215TN1 | 75 | 130 | 25 | |||
760216TN1 | 80 | 140 | 26 | |||
760217TN1 | 85 | 150 | 28 | |||
760218TN1 | 90 | 160 | 30 | |||
760219TN1 | 95 | 170 | 32 | |||

Product packaging

Packing :
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment

Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application

Factory


Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
