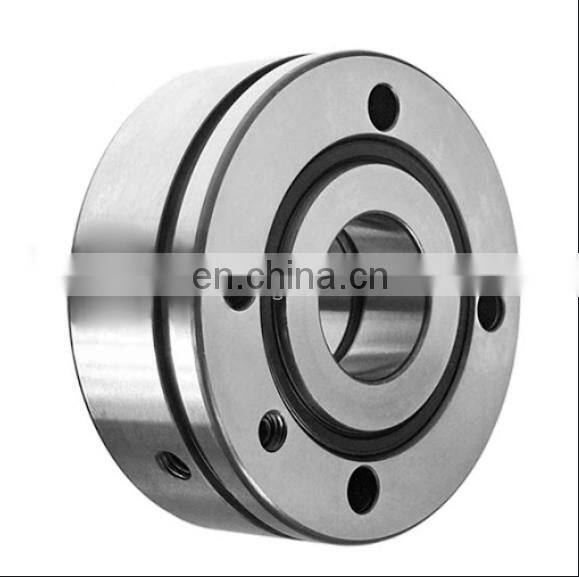

ZKLF2575-ZZ Double Direction Angular Contact Ball Bearing ZKLF2575 -2RS
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
3204A-2RS1TN9/MT33 3204A-2RS1 Angular Contact Ball Bearing 20x47x20.6mm
-
5210A Double Row Angular Contact Ball Bearing 5210-2RS 5210-ZZ 3210
-
5206-2RS Koyo Angular Contact Ball Bearing 5206 2RS 3206A-2RS1 30x62X23.8mm
-
5310 High Load Double Row Angular Contact Ball Bearing 3310 5310 A 5310-2RS
-
Double Row Angular Contact Ball Bearing 5313A 5313 5313-2RS Size 65x140x58.7MM
-
DAC4183 KOYO Differential Bearing DAC 4183 SH2 Double Row Anguar Contact Ball Bearing 41x83x29
Product Description
Product Description
Axial angular contact ball bearings for screw drives
ZKLF double direction axial angular contact ball bearing ZKLF2575 -2RS ZKLF2575-ZZ
ZKLF bearing is a bearing unit composed of an integral outer ring, a group of sectile inner rings, steel balls, cage assemblies and sealing. ZKLF bearing features compact structure, small size and high rotating accuracy, enduring force in two directions and bearing certain axial load while holding very high radial load, and multiple structure styles, broad adaptability and easy installation. ZKLF bearing is widely used in combination lathe or the spiral-rod drive in machining center.
?Precision bearings for screw drive bearing arrangements
Axial angular contact ball bearings are precision bearings for screw drive bearing arrangements. Depending on the series, they can support radial forces as well as axial forces in one or both directions. Contact seals protect the rolling element system against contamination and moisture. For higher speeds, non-contact minimal gap seals can be used.
Axial angular contact ball bearings are precision bearings for screw drive bearing arrangements. Depending on the series, they can support radial forces as well as axial forces in one or both directions. Contact seals protect the rolling element system against contamination and moisture. For higher speeds, non-contact minimal gap seals can be used.
?With and without fixing holes
The bearings are available with and without fixing holes in the outer ring. Bearings with holes are screw mounted directly on the adjacent construction. This solution is particularly economical since there is then no need for the locating bore that would otherwise be required or for the bearing cover with the associated matching work.
?Available with less stringent tolerances
For some areas of application, a bearing arrangement of lower precision is often sufficient. For this purpose, bearings with lessstringent tolerances are available.

name | ZKLF double direction axial angular contact ball bearing ZKLF2575 -2RS ZKLF2575-ZZ |
ID | 25MM |
OD | 75MM |
B | 28MM |
mail | lbc001 at |
Tel | +86-18753110215 |
ZKLF2575-2RS-XL ZKLF2575-2RS-PE Thrust angular contact ball bearing





Related Products

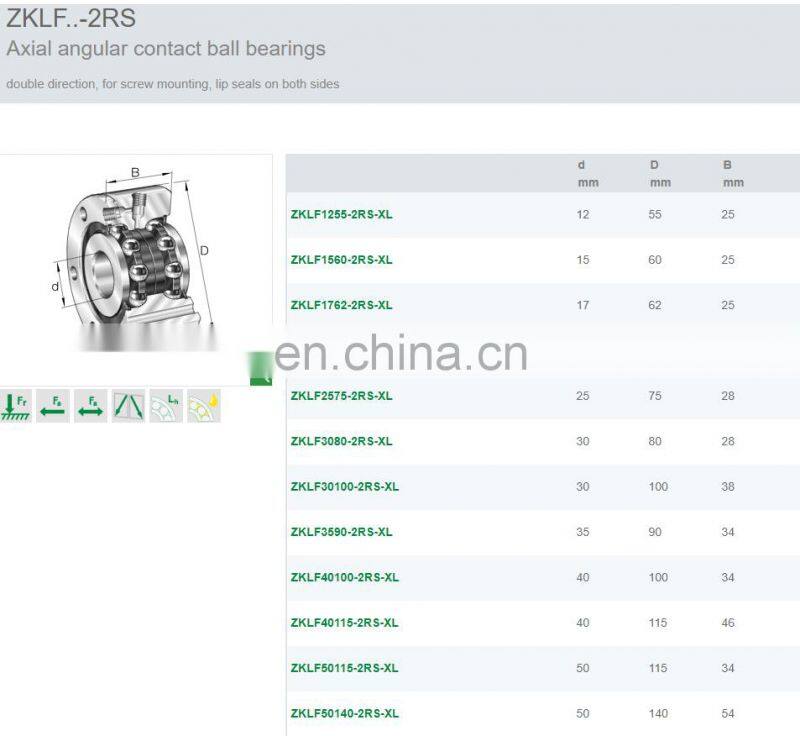

Shaft diameter | Designation | Mass | Dimensions | t | Setscrew | ||||||
d | D | B | |||||||||
designation | amount | ||||||||||
mm | Kg | -0.25 | |||||||||
12 | ZKLF 1255.2RS | 0.37 | 12 | 55 | 25 | 3×120° | M6 | 3 | |||
ZKLF 1255.2Z | 0.37 | 12 | 55 | 25 | 3×120° | M6 | 3 | ||||
15 | ZKLF 1560.2RS | 0.43 | 15 | 60 | 25 | 3×120° | M6 | 3 | |||
ZKLF 1560.2Z | 0.43 | 15 | 60 | 25 | 3×120° | M6 | 3 | ||||
17 | ZKLF 1762.2RS | 0.45 | 17 | 62 | 25 | 3×120° | M6 | 3 | |||
ZKLF 1762.2Z | 0.45 | 17 | 62 | 25 | 3×120° | M6 | 3 | ||||
20 | ZKLF 2068.2RS | 0.61 | 20 | 68 | 28 | 4×90° | M6 | 4 | |||
ZKLF 2068.2Z | 0.61 | 20 | 68 | 28 | 4×90° | M6 | 4 | ||||
25 | ZKLF 2575.2RS | 0.72 | 25 | 75 | 28 | 4×90° | M6 | 4 | |||
ZKLF 2575.2Z | 0.72 | 25 | 75 | 28 | 4×90° | M6 | 4 | ||||
30 | ZKLF 3080.2RS | 0.78 | 30 | 80 | 28 | 6×60° | M6 | 6 | |||
ZKLF 3080.2Z | 0.78 | 30 | 80 | 28 | 6×60° | M6 | 6 | ||||
35 | ZKLF 3590.2RS | 1.13 | 35 | 90 | 34 | 4×90° | M8 | 4 | |||
ZKLF 3590.2Z | 1.13 | 35 | 90 | 34 | 4×90° | M8 | 4 | ||||
40 | ZKLF 40100.2RS | 1.46 | 40 | 100 | 34 | 4×90° | M8 | 4 | |||
ZKLF 40100.2Z | 1.46 | 40 | 100 | 34 | 4×90° | M8 | 4 | ||||
50 | ZKLF 50115.2RS | 1.86 | 50 | 115 | 34 | 6×60° | M8 | 6 | |||
ZKLF 50115.2Z | 1.86 | 50 | 115 | 34 | 6×60° | M8 | 6 | ||||
60 | ZKLF 60145.2Z | 4.30 | 60 | 145 | 45 | 6×60° | M8 | 8 | |||
ZKLF 70155.2Z | 4.90 | 70 | 155 | 45 | 8×45° | M8 | 8 | ||||
80 | ZKLF 80165.2Z | 5.30 | 80 | 165 | 45 | 8×45° | M8 | 8 | |||
90 | ZKLF 90190.2Z | 8.70 | 90 | 190 | 55 | 8×45° | M10 | 8 | |||
100 | ZKLF 100200.2Z | 9.30 | 100 | 200 | 55 | 8×45° | M10 | 8 | |||
