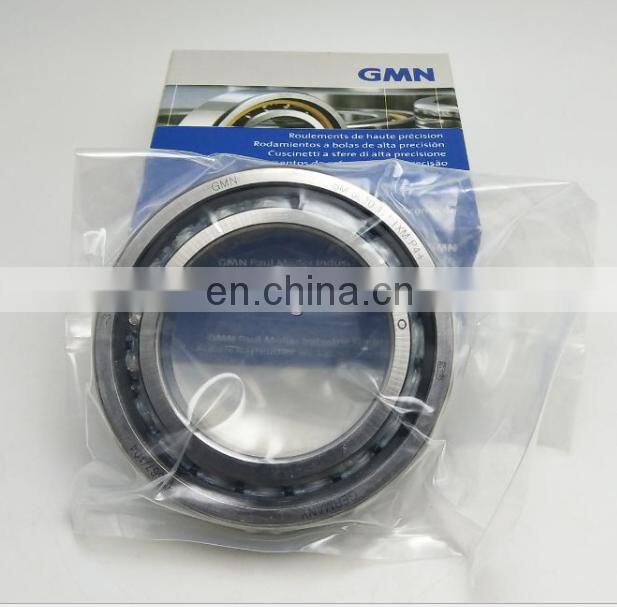

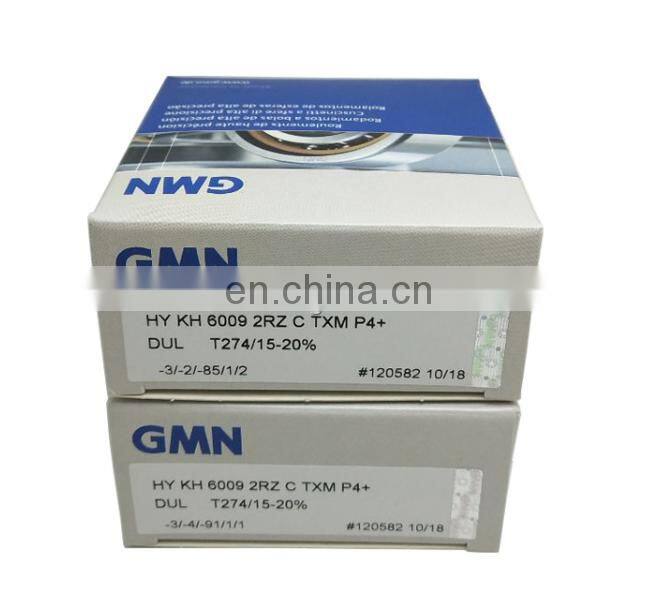

GMN Spindle Ball Bearings HY KH6009 2RZ C TXM P4 Hybrid Angular Contact Ball Bearings for CNC Machine

GMN Spindle ball bearings HY KH6009 2RZ C TXM P4 Hybrid Angular Contact Ball Bearings for CNC machine

7009 Hybrid Angular contact ball bearings designed for high-speed, high rigidity applications. As silicon nitride ceramic balls are considerably 40% lighter and harder than steel balls, they can run at higher speeds and lower temperature. This leads to less heat generation, less energy and longer lubricant life.

Super Precision High Speed Angular Contact Ball Bearings are designed for rigid, high speed, high tolerance applications. Spindle bearings used in pairs arrangemet can support axial forces on both directions and moments. Bearings in a tandem arrangement can only support axial loads in one direction. Spindle bearings are available with a 15 degree or 25, 30 degreee contact angle. Various cage options are available as well as the use of ceramic balls which allow for higher speed‘

’Precision class P4 / ABEC7

Components Bearing designation: (HY)* KH 6009 C

Bearing design: KH Series / size: 6009

Ball material:Steel 100Cr6

Ball material HY : Ceramic Si3N4

Cage: TA (TXM available upon request)

Seal: 2RZ upon request Precision: P4 (HG, UP,P2 upon request)

Main dimensions [d x D x B]: 45 x 75 x 16 mm

DB:Set of two bearings arranged back-to-back

DF: set of two bearings arranged

face-to face

DT:Set of two bearings arranged in tandem

DG:Set of two bearings for universal matching

ceramic : Zro2 ,Si3N4

Chrome steel : CGR15

Our Workshop

Packing Details  :plastic bag  Packing, carton , pallets

Delivery Details : 3days after payment

A: We are factory.

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
