7001C-2RZ Sealed Angular Contact Bearings 7001C2RZHQ1P4 Speed Spindle Bearings 7001

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

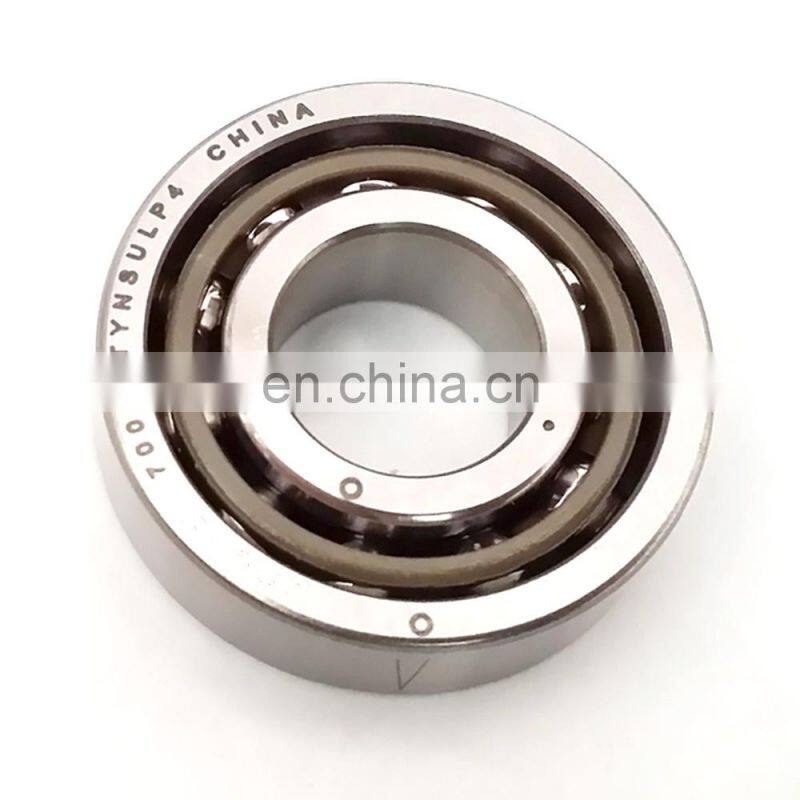

7001 7001C-2RZ-HQ1-P4-DB Sealed Angular Contact Bearings 7001C2RZHQ1P4 Speed Spindle Bearings CNC 12x28x82

bearing Features
* it is suitable for high radial and axial loads in one direction
* it has also an axial load carrying capacity on both sides in the X- or O-arrangement in pairs
* medium series for a broad range of applications
* accuracy grade: P4S (main dimensions at least according to ISO-tolerance class 4)
* all running tolerances are classified according to ISO-tolerance class 2
* it is designed for a high running accuracy and high speeds with maximum rigidity and operational safety
* not separable
* The mounting orientation is identifiable by the colour of the seals. The side with the higher shoulder is marked by a red seal, the opposite seal is black. This colour coding of the seals allows to see and check the mounting orientation, even when the bearing is already assembled.
* material: 100Cr6 (rolling bearing steel), phenol resin (cage)
* seal: 2RSD (2-side non contact rubber seal)
* temperature resistance up to circa 80°C in the long run, temporarily up to circa 120°C

name	7001 7001C-2RZ-HQ1-P4-DB Sealed Angular Contact Bearings 7001C2RZHQ1P4 Speed Spindle Bearings CNC
ball material	Si3N4
ID	12MM
OD	28MM
B	8MM
Product weight	0.02kg
Cage Material:	TN
material	chrome steel
mail	sales1@landlionbearing.com
Tel	+86-18710180456

Related Products

bearing	d	D	B	c	Da	da	contact angle	weight KG
B7000-C-2RSD-T-P4S-UL	10	26	8	6.4	22	14	15°	0.02
B7001-C-2RSD-T-P4S-UL	12	28	8	6.7	24.5	16.5	15°	0.02
B7002-C-2RSD-T-P4S-UL	15	32	9	7.6	28	19	15°	0.03
B7003-C-2RSD-T-P4S-UL	17	35	10	8.5	32	21	15°	0.04
B7004-C-2RSD-T-P4S-UL	20	42	12	10.2	37	25	15°	0.07
B7005-C-2RSD-T-P4S-UL	25	47	12	10.8	42	30	15°	0.08
B7006-C-2RSD-T-P4S-UL	30	55	13	12.3	49	36	15°	0.11
B7007-C-2RSD-T-P4S-UL	35	62	14	13.5	56	41	15°	0.15
B7008-C-2RSD-T-P4S-UL	40	68	15	14.7	62	46	15°	0.19
B7009-C-2RSD-T-P4S-UL	45	75	16	16	69	51	15°	0.24
B7010-C-2RSD-T-P4S-UL	50	80	16	16.7	74	56	15°	0.25
B7011-C-2RSD-T-P4S-UL	55	90	18	18.7	83	62	15°	0.38
B7012-C-2RSD-T-P4S-UL	60	95	18	19.4	88	67	15°	0.4

Product packaging

Packing ： 1. Industrial packing 2. Single box +carton +pallets /case 3. According to customers demand Delivery time : 1. Generally after payment: within 3 days . 2. If need produce , about 30 days Payment A less USD1000 , 100% T/T in advance . 1. More USD1000 , 30% T/T in advance , 70%T/T before shipment

Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...

Application

Factory

Company introduction

LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.

FAQ

Q: Are you trading company or manufacturer ? A: We are factory and trader . Q: How long is your delivery time? A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us .
