Home > Products > Angular Contact Ball Bearing > Double Row Angular Contact Ball Bearing 3302-B-TVH 3302 3302ATN9 3302 ATN9 3302A

Double Row Angular Contact Ball Bearing 3302-B-TVH 3302 3302ATN9 3302 ATN9 3302A

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Double row Angular Contact Ball Bearing 3302-B-TVH 3302 3302ATN9 3302 ATN9 3302A

Angular contact ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.

double row angular contact ball bearings corresponds to two single row angular contact ball bearings arranged back-to-back.

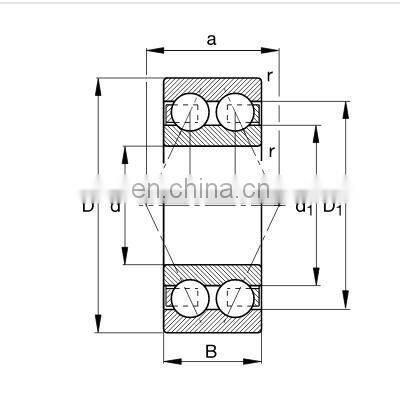

Bearing name:	3302-BD-XL-TVH bearings 3302.BD.XL.TVH 3302A 3302ATN9
d	15 mm
D	42 mm
B	19 mm
Reference	3302-BD-XL-2HRS-TVH
Weight	0.018 kg
what sapp	+8618753110215
email	lbc001 at

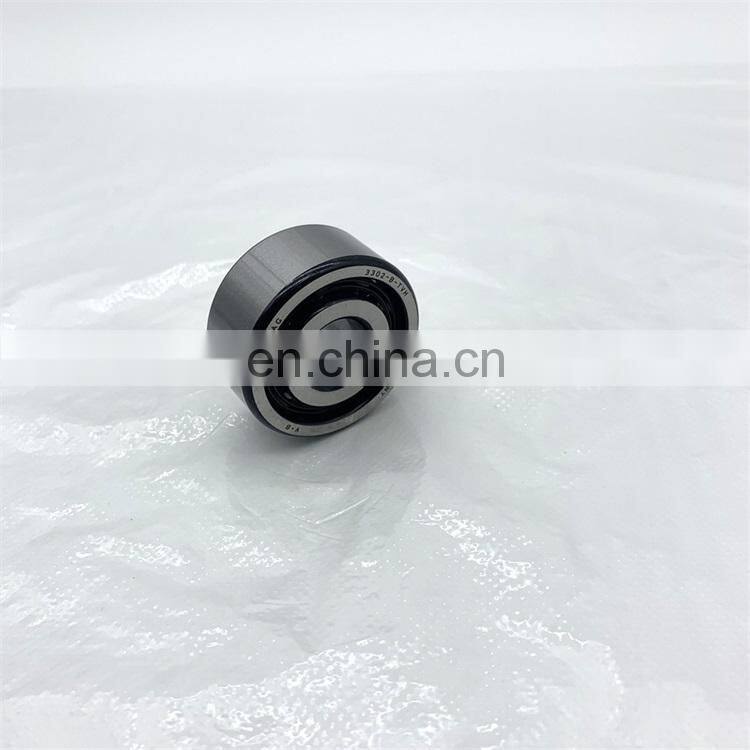

Detailed Images

Double row Angular Contact Ball Bearing 3302-B-TVH 3302 3302ATN9 3302 ATN9 3302A

Recommend Products

Bearing							Dimensions（mm）		Weight(kg)
The base type			Variant			d	D	B
Now	old	cover	Ring			d	D	B
3203A	5203	ZZ	2RS	17	40	17.5	0.085
3204A	5204	ZZ	2RS	20	47	20.6	0.12
3205A	5205	ZZ	2RS	25	52	20.6	0.19
3206A	5206	ZZ	2RS	30	62	23.8	0.3
3207A	5207	ZZ	2RS	35	72	27	0.47
3208A	5208	ZZ	2RS	40	80	30.2	0.58
3209A	5209	ZZ	2RS	45	85	30.2	0.62
3210A	5210	ZZ	2RS	50	90	30.2	0.67
3211A	5211	ZZ	2RS	55	100	33.3	0.96
3212A	5212	ZZ	2RS	60	110	36.5	1.37
3213A	5213	ZZ	2RS	65	120	38.1	1.68
3214A	5214	ZZ	2RS	70	125	39.7	1.82
3215A	5215	ZZ	2RS	75	130	41.3	1.95
3216A	5216	ZZ	2RS	80	140	44.4	2.55
3303A	5303	ZZ	2RS	17	47	22.2	0.13
3304A	5304	ZZ	2RS	20	52	22.2	0.22
3305A	5305	ZZ	2RS	25	62	25.4	0.33
3306A	5306	ZZ	2RS	30	72	30.2	0.51
3307A	5307	ZZ	2RS	35	80	34.9	0.8
3308A	5308	ZZ	2RS	40	90	36.5	1.08
3309A	5309	ZZ	2RS	45	100	39.7	1.45
3310A	5310	ZZ	2RS	50	110	44.4	1.98
3311A	5311	ZZ	2RS	55	120	49.2	2.35
3312A	5312	ZZ	2RS	60	130	54	3.2
3313A	5313	ZZ	2RS	65	140	58.7	3.9
3314A	5314	ZZ	2RS	70	150	63.5	4.95
3315A	5315	ZZ	2RS	75	160	68.3	5.7
3316A	5316	ZZ	2RS	80	170	68.3	7

Product packaging

Packing ： 1. Industrial packing 2. Single box +carton +pallets /case 3. According to customers demand Delivery time : 1. Generally after payment: within 3 days . 2. If need produce , about 30 days Payment A less USD1000 , 100% T/T in advance . 1. More USD1000 , 30% T/T in advance , 70%T/T before shipment

Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...

Application

Factory

Company introduction

LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.

FAQ

Q: Are you trading company or manufacturer ? A: We are factory and trader . Q: How long is your delivery time? A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us .
