auto heating radiator panel making machine production line manufacturers china
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Horizontal LT and HT coil winding machine for transformer
-
electric motor transformer coil winding machine price
-
steel panel radiator production line
-
Cheap VPI Vacuum Pressure Impregnating Equipment for dry type transformer and motors
-
VPI Vacuum Pressure Impregnating Equipment for Motors and Transformers
-
Epoxy Resin Casting Molding equipment for dry type transformer use
Product Description
Auto heating radiator panel making machine production line manufacturers china
Product description
This radiator panel production line can be used in producing different specification radiators, with width among 535, 520, 480, 460, 320, 310 and center distance more than 500mm.
This machine has high automation degree, high forming quality, and high efficiency. The property of this machine has reached world-class quality.
| Item | Procedure | Components | Qty(Set) |
| 1 | Forming | Hydraulic decoiler | 1 |
| Main roll forming machine | 1 | ||
| Press and cutting device | 1 | ||
| Output and turn-over device | 1 | ||
| 2 | ERW(electric resstance welding) | Servo feeding device | 1 |

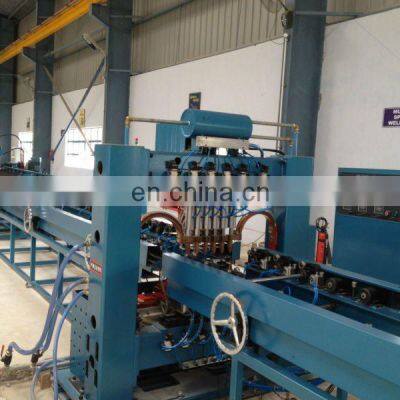

| LDN-4X200-6 multi-spot welding machine | 1 | ||
| Forwarding device after multi-spot welding | 1 | ||
| FZN-2×130-ZP-A seam welding machine | 1 | ||
| Forwarding device after seam welding | 1 | ||
| FN-200×2-B end welding machine | 1 | ||
| Forwarding device after end welding | 1 | ||
| 3 | Side shearing | GJ-200 levelling and side shearing machine | 1 |
| 4 | Head cutting | Forwarding device after shearing | 1 |
| 120T press machine | 1 | ||
| Head cutting mould | 1 | ||
| Positioning device | 1 | ||
| Run-out conveyer for finished radiator fin | 1 |
Working process
automatic decoiling – roll forming – hydraulic punching and cutting – spot welding – seam welding – panel head welding – head cutting – edge shearing – run-out
Our service
One stop service for customized machine
Overseas installation & operating training
One year warranty of the whole machine
Life-long technical support
