Baosteel B30R095 orientated silicon steel energy efficient transformer materials

I. Products

Baosteel B30R095 High Magnetic Susceptibility Oriented Silicon Steel is a high-end electrical steel product independently developed by Baosteel, representing the leading domestic and international advanced silicon steel manufacturing technology. The thickness of the product is 0.30mm, iron loss value (P1.7/50) ≤ 0.95W/kg, magnetic susceptibility (B800) ≥ 1.88T, and the comprehensive performance is in line with the requirements of the Chinese national standard (GB/T 2521-2008), the Japanese standard (JIS C2553-2000) and the European standard (EN10107:2005).

It adopts Baosteel's unique composition design and precision process control technology, with low iron loss, high magnetic susceptibility, low noise and other characteristics, is the core material for the manufacture of energy-efficient transformer cores, known as ‘the pearl in the crown of iron and steel products’ Baosteel B30R095 Oriented Silicon Steel Energy Efficient Transformer Materials.

II. Main uses

B30R095 is dedicated to 500kV and above ultra-high voltage, large capacity power transformers, typical application scenarios include:

1, large energy infrastructure: such as the Three Gorges Project and other national hydroelectric power stations, ultra-high voltage transmission projects, to meet the demand for high stability and long life.

2, energy efficient transformer: significantly reduce core loss (energy saving 6%-8% compared with conventional products), suitable for ultra-supercritical thermal power units, smart grid and other green power projects.

3, High-end industrial equipment: suitable for nuclear power, rail transport and other fields of low noise, high insulation grade transformer manufacturing.

III. Storage and maintenance

1，Moisture and rust prevention: The storage environment should be kept dry (relative humidity ≤ 60%), avoiding contact with acid, alkali and other corrosive substances. If stored for a long time, it is recommended to use anti-rust oil or vacuum packaging to protect the surface coating.

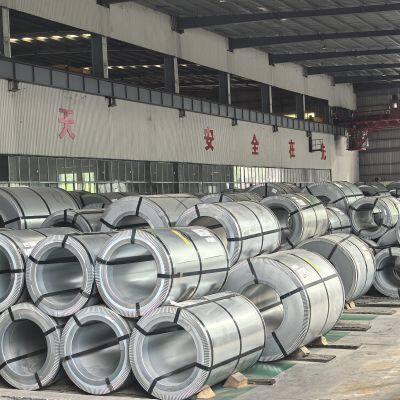

2，Physical protection: Avoid mechanical collision or heavy pressure to prevent deformation of steel coils or coating damage. Use special pallets when stacking and control the stacking height to reduce the bottom load.3,33333333332123123123546974124

3，Temperature control: Ideal storage temperature is between 10°C and 30°C to avoid high temperature environment that may cause coating aging or magnetic property degradation.

4，Pre-processing: If cutting or stamping is required, make sure the equipment is clean to avoid scratching the surface with impurities; clean up debris in time after processing to prevent oxidation or degradation of insulating properties.

IV. Payment modalities

Only support T/T payment, the implementation of the FOB standard, the first to determine the variety and grade of silicon steel, sign the contract prepayment of 40%, in the delivery period the goods ready to send to the designated domestic port (such as Tianjin Port), after settlement of the final payment, the goods loaded on the ship.

V. Summary

Baosteel B30R095 orientated silicon steel has become the first choice of core material for UHV transformers with its international leading technical performance (low iron loss, high magnetic susceptibility), stringent quality certification (Three Gorges Project national evaluation) and stable batch supply capability. Its application directly promotes energy efficiency upgrading of power equipment and helps customers around the world to achieve low-carbon goals. Choosing Baosteel B30R095 means choosing the advantages of high reliability, energy saving and whole life cycle cost.
