Ignition discharge tube GXH series double-electrode spark gap is a gas discharge tube, sealed in a glass/metal casing. It can provide tubes with a DC breakdown voltage ranging from 0.50KV to 12kV.

Features of ignition discharge tube:

It is sealed in a glass/metal case

Weight: 40g

Voltage range: 0.5kv to 12Kv

The ignition level is large

Sturdy structure

Ignition discharge tube application:

Single-shot pulse generator

Surge voltage protection circuit

Turbine engine ignition circuit

Medical lithotripsy

high energy switch

Electrical and physical characteristics:

All ratings given in this data sheet are reliable asynchronous ratings. Spark gap life depends on circuit conditions, such as peak discharge current and duration, charge transfer per discharge and repetition rate.

charge transfer, single discharge (8/20ms waveform): 0.5C

Cumulative charge transfer: 6000C, 0.81mC, 1Hz per discharge

Working temperature: -55 ~ +125℃

Mechanical shock, half sine (test Ea to B.S.2011): 40g for 4ms

installation: screw installation

Radioactivity: Tritium (3H), each device maximum 5.44MBq (147 mCi)

The high-energy ignition discharge tube series is an active component that can work reliably even if it is ignited thousands of times. The switching discharge tube can be used for all applications that need to generate high-voltage pulses, such as: aircraft engines, spacecraft, airships, industrial boilers, ship boilers, and the ignition of internal combustion appliances in trains. Voltage 500v-5000v.

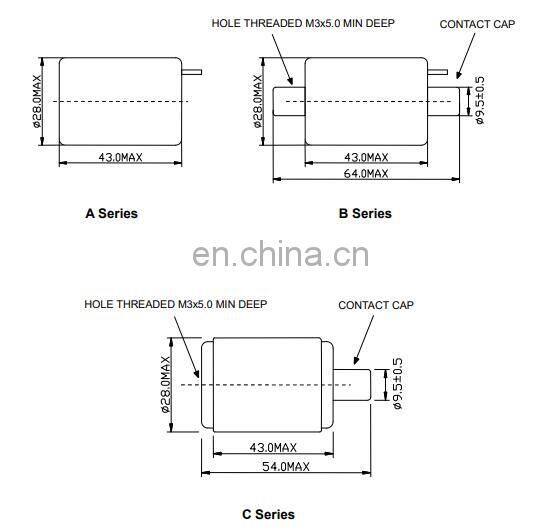

DIMENSIONS(mm):

For more parameters of surge protector, please call us~
