RUILON GXP30 High-energy ignition Spark gap 30kA Gas Discharge Tubes High Quality Ignition System

Introduction of GXP Series Spark gap/Gas Discharge Tube:

1. The GXP series of 2-electrode spark gaps are gas discharge tubes, hermetically sealed in a glass/ metal envelope.
2. Tubes with a DC breakdown voltage in the 0.5kV to 12kV are available.
3. This is signified by a numeral or numerals following the type letters and is expressed in hundreds of volts.

Applications:

--Single-shot pules generators
--Turbine engine ignition circuits
--Medical lithotripsy
--High energy switches

--Airplanes, big boilers

Electrical and physical characteristics:

• All ratings given in this data sheet a reab solute, nonsimultaneous ratings.
• It is the equipment designer's responsibility to ensure that they are not exceeded.
• The spark gap life depends on circuit conditions such as peak discharge current and duration, charge transfer per discharge and the repetition rate.

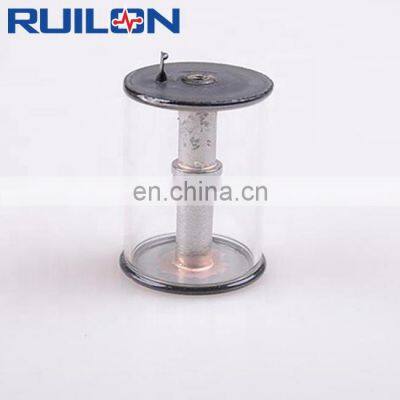

Product display:

Dimension of GXP Series Spark gap/Gas Discharge Tube:

Package detail:

Warehouse Storage Conditions of  GXP Series Spark gap/Gas Discharge Tube:

 *Storage conditions

1.Storage Temperature:-10℃~+40℃

2.Relative Humidity:≤75%RH

3.Keep away from corrosive atmosphere and sunlight.

*Period of storage: 1 year
