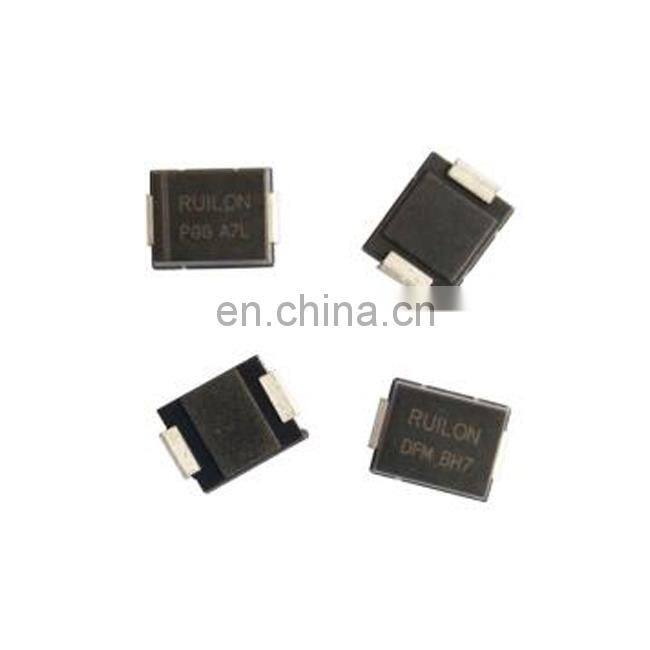

Ruilon Brand SMDJ48A SMD Transient Voltage Suppression Diode SMDJ Series 3000W 5V~440V

The SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features:
* Low profile package
* Matte tin lead–free Plated
* Halogen free and RoHS compliant
* Low incremental surge resistance
* Typical IR less than 2μA above 10V
* Compatible with industrial standard package DO-214AB
* For surface mounted applications to optimize board space
* 3000W peak pulse power capability with at 10/1000μs waveform, repetition rate (duty cycle): 0.01%
* High temperature soldering:260°C/10 seconds at terminals

Contact us:

Promises:

The manufacturer promises that during the warranty period, if our products have any defects, we will apply for a free replacement for you. We are sincere to every customer and our service is very good. If you have any questions, you can call our customer service immediately. Until you are satisfied with our sevice.

Contact us:

Ruilongyuan Electronics Co., Ltd. We are a manufacturer of electronic components in China, the brand is RUILON, the ex-factory price, and there is no middleman. New original, Price and quality are guaranteed. if you are interest, please contact us at any moment!

Main Products:
Transient Voltage Suppressors(TVS)
Thyristor Surge Suppressors(TSS)
Protection Device TVS/ESD Arrays
Glass Gas Discharge Tubes (GGD)
Positive Thermal Coefficent (PTC)
Metal Oxide Varistors (MOV)
Surge Protective Device (SPD)
