VDR 470V 470V Varistor VDR For Generator

Metal Oxide Varisor 5D Series

*Features
1. Wide operating voltage (V1mA) range from 8V to 1800V.
2. Fast responding to transient over-voltage.
3. Large absorbing transient energy capability.
4. Low clamping ratio and no following-on current.

*General Information
The MOV-05DxxxK Series of 5 mm radial leaded varistor devices protects against overvoltage transients such as lightning,
powercontact and power induction. The metal oxide varistors offer a choice of varistor voltages from 18 V to 750 V and Vrms
voltages from 11 V to 460 V. The devices have a high current handling, high energy absorption capability and fast response
times to protect against transient faults up to rated limits

*General Characteristics

No Radioactive Material Storage Temperature: -40ºC to +125ºC
Operating Temperature: -40ºC to +85ºC
Body: Nickel Plated
Leads: Surface-mount, Axial Devices: Tin Plated
Devices with No Leads: Nickel Plated

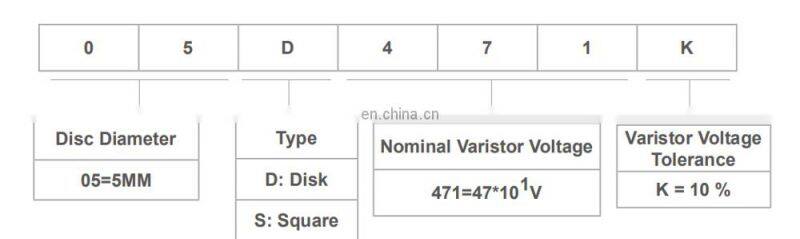

*Product Name:

*Data:

Technique data as below:

 1000pcs per bag

Support shipping by FEDEX,DHL,TNT,UPS,and etc

Support shipping by sea

Support you using your own forwarder
