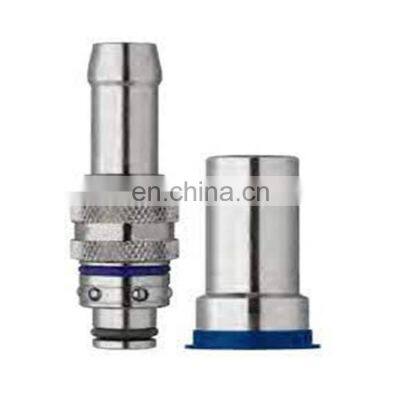

Flat Face Type Quick Mold Coupling for Mould Cooling System Water Quick Coupling Injection Mold Cooling Fitting
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Mold Coolant Quick Release Couplings for Mould Cooling System Mold Cooling Connector
-
Water Quick Coupling Injection Mold Cooling Fitting Flush-faced Type Quick Mold Couplers
-
Flush-faced Type Quick Mold Couplers for High-speed Railway Flat Face Type Quick Mold Coupling
-
Stucchi VEP High-end Series Hydraulic Couplers Flat Face Type Thread Locked Hydraulic Quick Coupler Coupling
-
Thread Locked Type Hydraulic Quick Coupler Stauff SVQ High Pressure Screw Type Quick Couplings
-
ISO A Hydraulic Push in Connect Quick Couplings Nipple Set Stainless Steel ISO A Quick Release Coupling
Product Description
Product Description
The Free Fit cooling range in stainless steel is employed in cleanrooms or medical technology applications for the temperature control of injection moulds in reliable processes, using hot/cold water or oil. The high-quality 1.4305 material of the free fit coupling system guarantees reliable and durable temperature control applications. The special FKM materials of the O-rings are eminently suitable for high temperature applications. The low compression set allows optimum and reliable deployment. Production
losses due to leaks are considerably reduced.
losses due to leaks are considerably reduced.
Specifications
DN | Series | Connection A | Hex SW | L mm | D mm | L1 mm | Valve | PU |
6 | 006 | M 16 x 1.5 | 17 | 59.2 | 22 | 11 | With | 10 |
Technical specifications:
1. Valve style: Flush-faced Poppet
2. Locking: Ball locking
3. Material: Brass and stainless steel
4. Size: 1/4''
5. Flow: 16 L/min
6. Max working pressure: 6 Mpa
7. Interchange: Rectus 006KL series
Advantages
1. Easy to handle with singlehanded operation and the knurled sleeve design.
2. Extremely durable due to the robust design.
Application
Why Choose Us
Related Products
Company Profile
Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
