double shut-off quick couplings Push-pull couplings for agriculture and panel mounting

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Free Fit Push-pull hydraulic couplings are couplings for hydraulic applications. The quick release couplings distinguish themselves by being able to be disconnected with a pulling motion. These couplings are often applied in the agricultural sector. The push-pull mechanism makes sure that, in case someone forgets to disconnect a hose, it will disconnect when the vehicle drives away and the hose will not break. This way of disconnecting is a safety feature, the right way to disconnect is by sliding the outer ring backwards after which the male part can be disconnected.

Specifications

Body size (inch)	1/4	3/8	1/2	3/4	1
Rated pressure (Mpa)	50	30	30	30	25

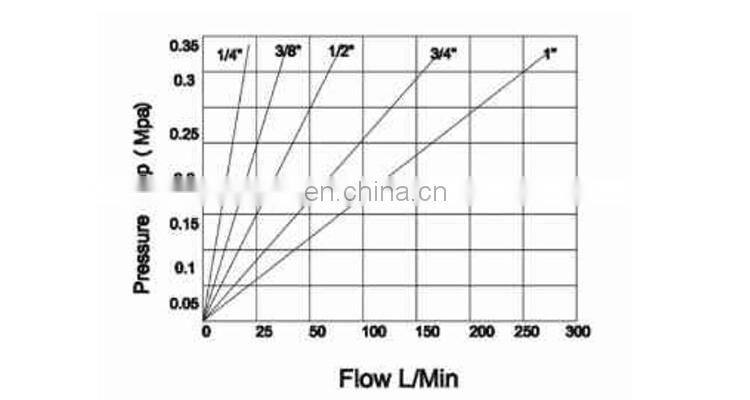

Rated flow (L/min)	9	30	75	180	270
Temperature range (NBR)	-25℃ to +125℃

Properties

Emergency disconnect function

Can be connected using one hand

Depressurized connecting using one hand

ISO 7241-1 part A exchangeable Dust caps optional in various colours

½” internal gas threaded connection

Maximum operating pressure 260 bar

Maximum flow 75 L/min

Related Products

Why Choose Us

Company Profile

Factory

Workshop

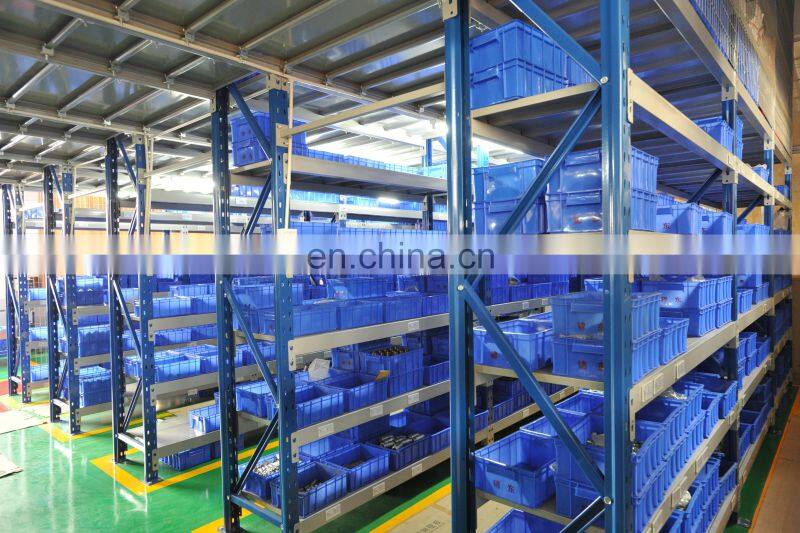

Warehouse

Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.

We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our
products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.

Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
