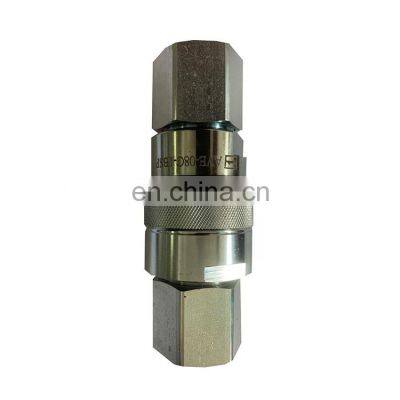

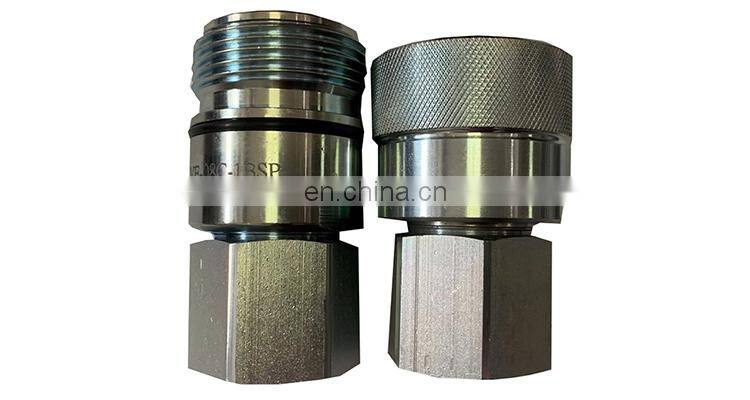

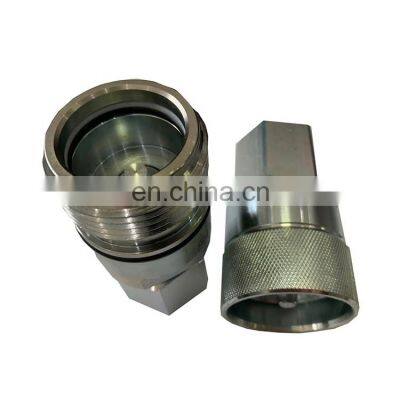

ISO 14541 Screw-to-connect Couplings Stainless Steel Heavy Duty Screw-on Couplers
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Screw Type Quick Couplings Heavy Duty Screw-on Couplers Stainless Steel High Pressure Screw-to-connect Couplers
-
Connect Under Pressure Hydraulic Quick Couplings ISO 14541 Screw-to-connect Couplings Screw Type Quick Disconnect Couplings
-
Stainless Steel High Pressure Screw-to-connect Couplers ISO 14541 Screw-to-connect Couplings
-
Hydraulic Hand Tool Stainless Steel Screw to Connect Couplings Parker Pioneer Hydraulic High Pressure 3000 Series Coupler
-
Ball-Type Valve High Pressure Polyurethane Seals Quick Coupler ISO 14540 Screw to Connect Couplings for High Pressure
-
Parker Pioneer Hydraulic High Pressure 3000 Series Coupler Ball Lock Hydraulic Quick Connect Hose Coupling Set
Product Description
Product Description
Free Fit Screw-on couplings suitable for general purpose applications. Connectable under residual pressure. High resistance to pressure and flow impulses. Interchangeable according to ISO 14541 standard for size: 1/4"; 3/8"; 1/2"; 3/4". Working Pressure according to ISO 14541, that requires a safety factor 4:1 on minimun burst pressure. The couplings can perfectly work with a safety factor 3:1 and consequently with higher working pressure.
Specifications

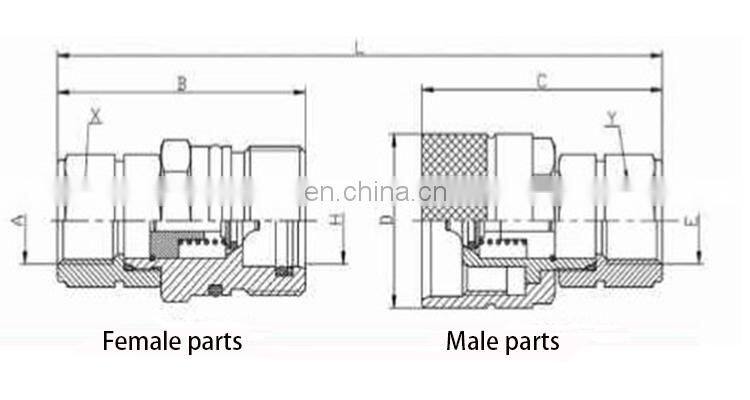

Part No | ISO | A | L | B | C |
AVE-02C-14BSP-SP | 6.3 | G 1/4 | 94 | 61 | 56.5 |
AVE-03C-38BSP-SP | 10 | G 3/8 | 98 | 64 | 59 |
AVE-04C-12BSP-SP | 12.5 | G 1/2 | 109 | 69.5 | 66.5 |
AVE-06C-34BSP-SP | 20 | G 3/4 | 132 | 86 | 78 |
AVE-08C-1BSP-SP | 25 | G 1 | 152 | 100 | 89.5 |
AVE-12C-112BSP-SP | 40 | G 1-1/2 | 196 | 126 | 120 |
Features:
Series Interchange: ISO 14541
Valve Type: Poppet
Connection: Screw to Connect
Disconnection: Unscrew to Disconnect
Connection Under Pressure: Allowed Residual
Why Choose Us
Related Products
Company Profile
Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
