Product Description
Product Description

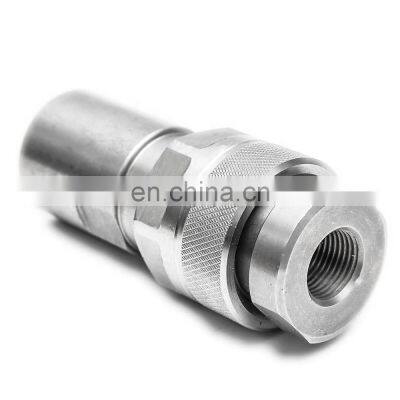

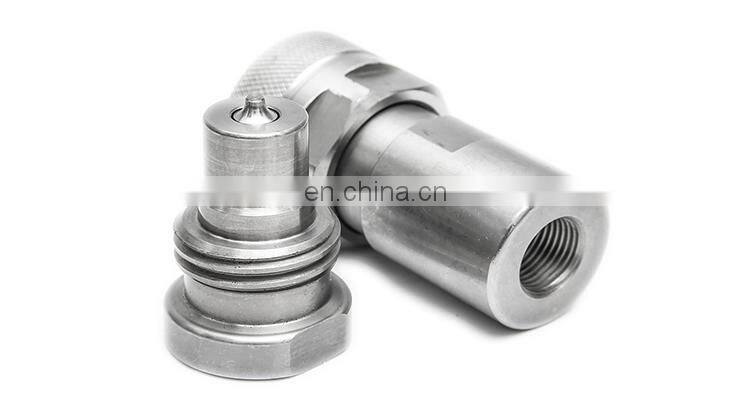

Jindong Free Fit brand VVS series high pressure screw type connect hydraulic quick coupling, Heavy-duty design as standard, O-ring and PTFE back-up ring to weithstand flow surges. Connect with pressure up to 5 Mpa is possible. Can be interchanged with FASTER VVS series.

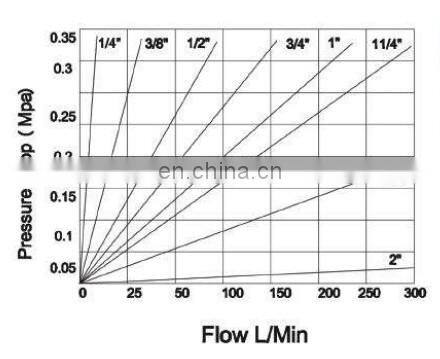

Specifications
Body size (inch) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | ||||||||
Rated pressure (Mpa) | 80 | 80 | 73 | 73 | 63 | 60 | 40 | 35 | ||||||||
Rated Flow (L/min) | 8 | 18 | 40 | 55 | 100 | 140 | 300 | 1000 | ||||||||
Temperature range (NBR): -25℃ to +125℃ | ||||||||||||||||
