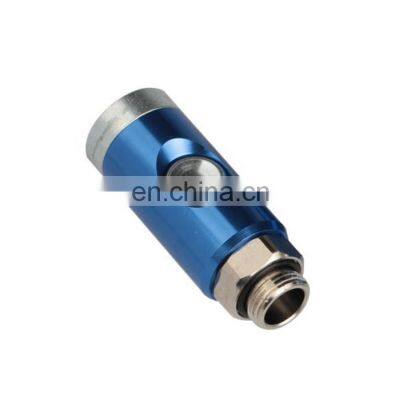

Push Button Prevents Air Circulation and Release Plug Push Button Safety Air Plug Coupler
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Pneumatic Safety Push Button Coupling Push-Button Type Pneumatic Quick Coupling
-
ISO 6150 C Standard Push Botton Safety Air Coupler 1/2\" Male Nitto Type Prevents Air Circulation and Release Plug
-
EURO Standard Push Button Safety Coupler S-99706 Parker Push Button Couplings for Cooling System
-
Blind Mate Thermal Management Quick Couplings CGO Staubli Quick and Dry Disconnect Couplings Staubli Fluid Connectors
-
Staubli Fluid Connectors Blind Mate Thermal Management Quick Couplings CGO Staubli
-
Non-spill Flush Face Blind Mate Quick Couplings Blind Mate Thermal Management Quick Couplings CGO Staubli
Product Description
Product Description
Free Fit Safety Quick Coupling Series 29X is a safety coupling with pushing button integrating self-venting system according to ISO6150 B, ISO 6150 C and EURO. The self-venting takes place during disconnection in 2 steps – no risk of pressurized hoses being tossed around. When the pushing buttind is pressed one time, the plug is released yet remains locked in. The coupling valve closes and the air is vented from the air line at the same time. Only then, by pressing the button again, can uncoupling take place safely. The system fulfils the requirements of ISO 4414 – increased safety standards in the work place and make the use easy.
Specifications
Socket material | Stainless steel SUS316 |
Plug material | Stainless steel SUS316 |
Temperature range | -20℃ to +100℃ |
Max working pressure | 1.6Mpa |
Standard | ISO 6150-C |
Features:
1. One-hand operated
2. Push-button release device
How to work
Double click to engage properly.
Firstly click locks couplers and plug.The second click engages the air pressure.
To disconnect push the button twice. The first push relieve air pressure, the second push disconnect coupler and plug.
Why Choose Us
Related Products
Company Profile
Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
