High Quality Factory Direct Supply Female and Male ISO 7241-A Quick Disconnect Hydraulic Coupler for Tractor
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Bobcat 6680018 Hydraulic Disconnect Couplings 7249643 ISO 16028 Flat Face Hydraulic Couplings
-
Skid Steer Cartridge Manifold 7246802/AT406475 Hydraulic Female Flat Face Quick Coupler
-
Direct Aftermarket Replacement Bobcat 6680018/V0511-77150/84390118 Hydraulic Disconnect Couplings for 325/328 BOBCAT Excavators
-
Direct Aftermarket Replacement 6679837/V0511-77140/84390117 Hydraulic Male Flat Face Quick Coupler Skid Steer Cartridge Manifold
-
Skid Steer Cartridge Manifold Case 7246799/AT406475 Replacement Hydraulic Male Flat Face Quick Coupler
-
Pneumatic & Fluid1/4''Flush-Faced Type Quick Coupling Dry Break Stainless Steel Quick Coupling Series 204, 206 NPT
Product Description
Product Description

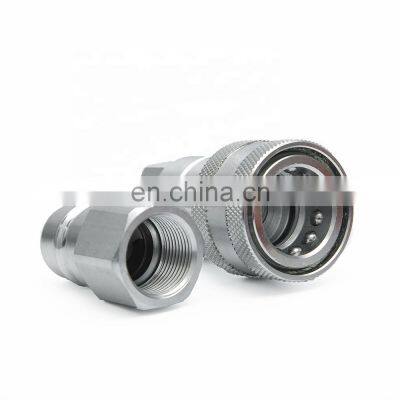

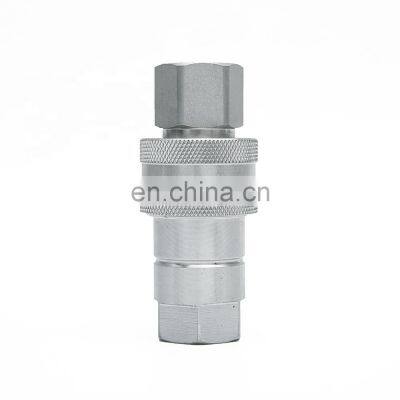

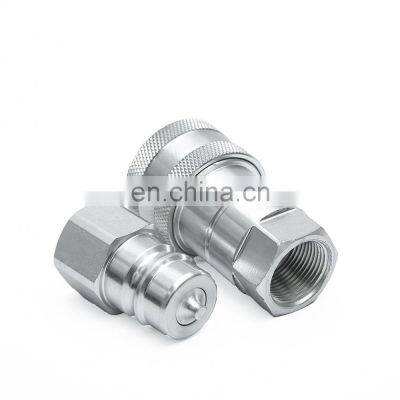

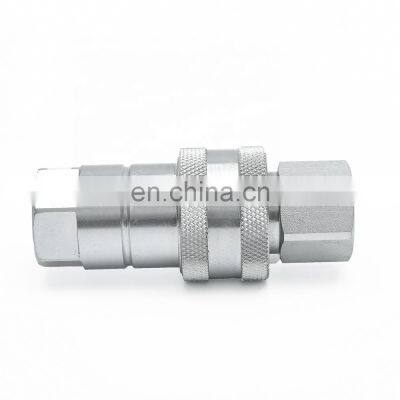

ANV is the series of quick couplings with poppet sealing system, interchangeable according to the international standard ISO 7241series A, standard couplings with Zn-Ni surface treatment for improved resistance, widely used in various agricultural tractors.

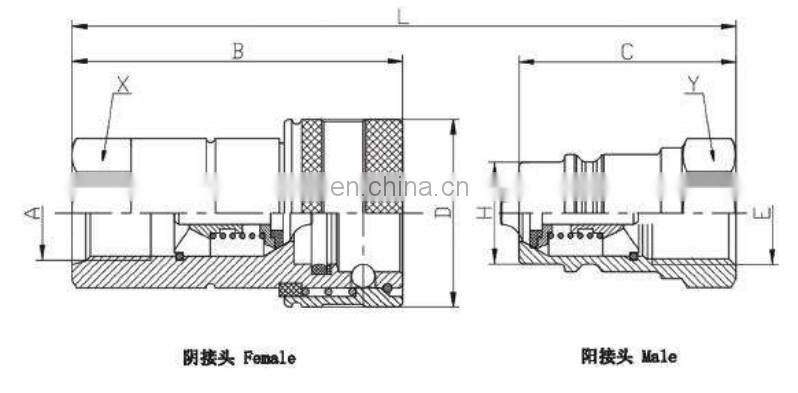

Specifications
Body size (inch) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |||||||
Rated pressure (Mpa) | 50 | 30 | 30 | 30 | 25 | 25 | 20 | 15 | |||||||
Rated flow (L/min) | 9 | 30 | 75 | 180 | 270 | 330 | 450 | 900 | |||||||
Temperature range | -25℃ to +125℃ | ||||||||||||||

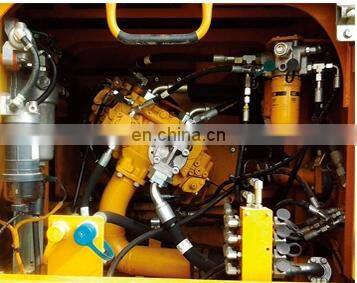

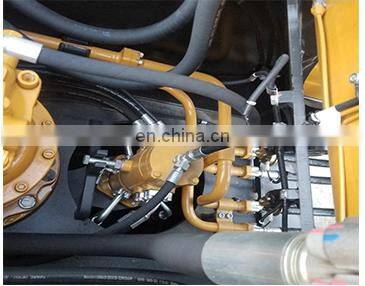

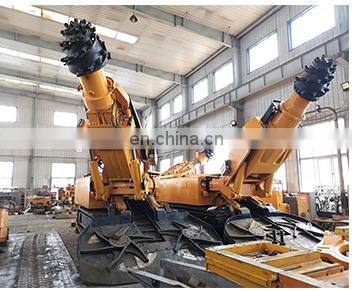

Application
Company Profile

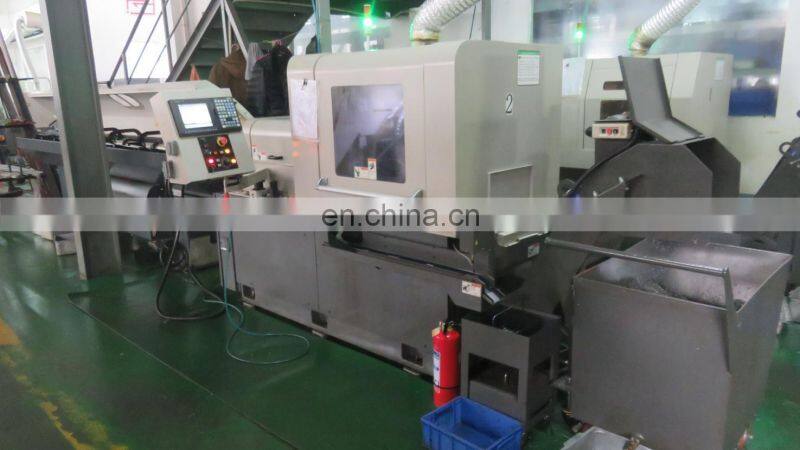

Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our
products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
Why Choose Us
Exhibition
Packing & Delivery
Contact Us
Contact Us
- Yancheng Jingdong Hydraulic Machine Co., Ltd.
