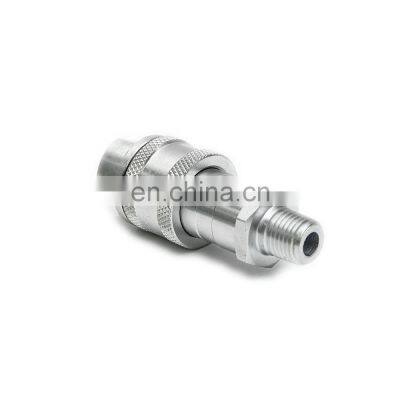

Parker Pioneer Hydraulic High Pressure 3000 Series Coupler Ball Lock Hydraulic Quick Connect Hose Coupling Set
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Hydraulic Quick Coupler Replaces Gromelle 6000 Series Eaton Hansen and Gromelle Series Thread-to-Connect Plug
-
KZE-BA Threaded Connection Hydraulic Quick Release Couplings Screw-to-connect Self-sealing Couplers
-
Holmbury TGW Series NPT SOCKET Hydraulic Quick Coupler Replaces Gromelle 6000 Series
-
Eaton Hansen and Gromelle Series Thread-to-Connect Plug KZE-BA Threaded Connection Hydraulic Quick Release Couplings
-
Heavy Duty Screw to Connect Coupling Wing or Hex Nut Style Thread to Connect Couplings
-
High Flow Flush Valves Parker 6100 Series Connect Under Pressure Hydraulic Quick Couplings
Product Description
Product Description
Free Fit Screw-on couplings purposely designed for the heaviest applications (e.g.: hydraulic jacks for bridge maintenance). Equipped with a robust metal-to-metal sealing poppet valve, this series guarantees the best performance on the market in terms of maximum working pressure. ISO 14540 interchange.
Specifications
Body size (inch) | 1/4 | 3/8 | 1/2 | 3/4 | |||
Rated pressure (Mpa) | 70 | 70 | 50 | 50 | |||
Rated flow (L/min) | 15 | 20 | 45 | 105 | |||
Temperature range (polyurethane) | -25℃ to +125℃ | ||||||
Features:
Manual threaded connection and actuation
Hard, chrome alloy ball valves
Polyurethane interface seal resists high pressure extrusion
Threaded retainer provides a positive valve stop
Protective zinc plating with clear trivalent chromate finish
Applications:
Hydraulic rams, Portable hydraulic tools, Crimping equipment
