Home > Products > Hydraulic Quick Couplings > KZA hydraulic quick connector ISO7241-A Hydraulic coupler for ISO7241-1 Series application

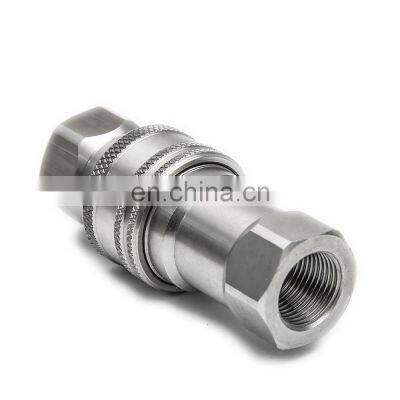

KZA hydraulic quick connector ISO7241-A Hydraulic coupler for ISO7241-1 Series application
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
faster standard couplings for agriculture hydraulic nipple parker 6600
-
ISO 14541 Screw-to-connect couplings Stainless steel heavy duty screw-on couplers
-
screw type quick couplings heavy duty screw-on couplers Stainless steel high pressure Screw-to-connect couplers
-
Connect Under Pressure hydraulic quick couplings ISO 14541 Screw-to-connect couplings screw type quick disconnect couplings
-
Stainless steel high pressure Screw-to-connect couplers ISO 14541 Screw-to-connect couplings
-
Hydraulic hand tool stainless steel Screw to connect couplings parker pioneer hydraulic high pressure 3000 series coupler
Product Description
Product Description
The ISO 7241 A Series of quick disconnect couplers are used on a large spectrum of hydraulic applications with Free Fit quality standards such as the aerospace, automotive, electronics industries. They are also recommended for general purpose, machine tools, mobile hydraulics, and other equipment applications. Our Series A couplers are interchangeable with all ISO 7241 A series couplings.
Specifications
Body size (inch) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |||||||
Rated pressure (Mpa) | 50 | 30 | 30 | 30 | 25 | 25 | 20 | 15 | |||||||
Rated flow (L/min) | 9 | 30 | 75 | 180 | 270 | 330 | 450 | 900 | |||||||
Temperature range | -25℃ to +125℃ | ||||||||||||||
Advantages:
1. Hardened Steel Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
2. Radial Locking Balls
3. Interchangeable with all ISO 7241 A series couplings
4. Manual Connect and Disconnect
5. Seal Type: Nitrile Buna-N
Features:
1. Nominal Flow Rate: 6.5 GPM
2. Max Flow Rate: 12.15 GPM
3. Max Working (PSI): 4410 psi
4. Male Face Diameter 1.770” (45mm)
5. Male Length: 2.244” (57mm)
6. Hex: 1.341” (34mm)
Interchangeable with:
Parker 6600 Series/Faster/Tomco 5600/Aeroquip 5600/Dixon K/Snaptite 61/Stucchi BIR
Application
Why Choose Us
Recommend Products
Company Profile
Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our
products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
