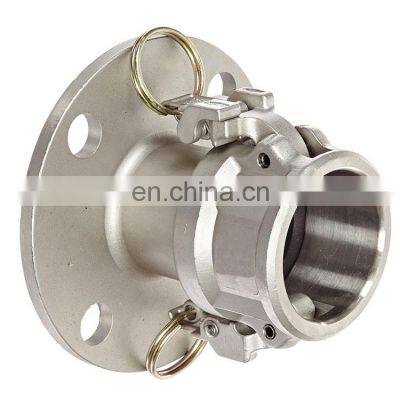

Cam & Groove Adapter With a Fixed Flange for Oil Distribution Camlock Coupling With Flange
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Made in China Best Price Female and Male 1 Inch VCR Screw Thread Hydraulic Quick Coupling for Tractor
-
Made in China Disconnect and Connect 1/2 Inch Flat Face Type Hydraulic Quick Coupling for Skid Steer Loader
-
Factory Direct Supply no Leak 1/2 Inch Brass Material ISO 7241-B KZD Hydraulic Quick Coupling for Tractor
-
Dust Plug Camlock Fitting Hose Fitting Dust Plug Cam-and-Groove 316 Stainless Steel
-
High Quality Female and Male 3/8 Inch SS 304 ISO 7241-B KZF Hydraulic Quick Coupling for Tractor
-
Stainless Steel Camlock Coupling For Structure Pipe Safety Coupling End Type DC
Product Description
Product Description
A camlock fitting, also called a cam and groove coupling, is used to connect two hoses and or pipes together in a variety of industries, so that a commodity from one can be transferred to the other. They’re easy to use, requiring no tools to connect and disconnect the two halves of the couplings and they replace the traditional time-consuming methods of some other types of hose or pipe connections. This, together with their cost effectiveness makes them the most popular coupling in the world.
Product Show
Specifications
Size: 1/2inch - 10inch
Material: SS316L, SS316, SS304L, SS304, MS, Brass, Gun Metal
Application: Petroleum, Petro Chemical, Cement, Slurry, Acids, Powders, Plastomers, Shipping, Iron Steel Industry, Aluminium Plants, etc.
Special Features: Manufactured as per DIN / MIL-C standards
How does it work
The assembly consists of a male groove adapter and female coupler. To connect and disconnect:
1. Extend the handles on the coupler outwards and place the correct size male adapter into the female coupler
2. Close both handles at the same time until the two halves are firmly fixed together
3. Closing both handles at the same time insures that the grooved adapter is pulled down consistently onto the seal making a leak proof assembly for the safe transfer of liquids
4. Reverse the process to disconnect the fitting making sure before doing so that the hose assembly has been de-pressurised.
Why Choose Us
Recommend Products
Company Profile
Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our
products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
