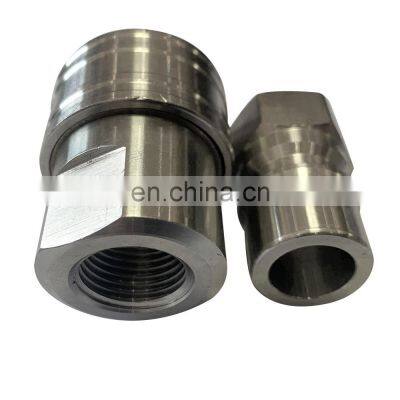

Straight Through Ball Lock Hydraulic Fitting for Steam Cleaning Fluid Couplings
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Injection Molding Hydraulic Coupler Straight Through Ball Lock Hydraulic Fitting
-
Fluid Couplings for Injection Molding Straight-through Design Hansen Coupling
-
High Pressure no Leak Flat Face Type 1/2 Inch ISO 16028 Hydraulic Quick Coupling for Skid Steer Loader
-
Made in China Female and Male Poppet Type 1/2 Inch ISO 7241-A Hydraulic Quick Coupling for Tractor
-
Quick Connect Couplings With Pressure Eliminator TEMA Close Type Quick Coupling
-
TEMA Close Type Quick Coupling for Construction Equipment Truck Type High Flow Hydraulic Quick Couplers
Product Description
Product Description
Series ST straight through couplings are designed for use where minimum pressure drop is required and valving is not needed. They are well suited for use on pressure wash, steam and carpet cleaning equipment, and many fluid transfer systems. Body sizes range from 1/8" to 2½".
Product Show
Specifications
Body size(inch) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | |||||||
Brass rated pressure | 17.5 | 36 | 18.5 | 15 | 12 | 12 | 12 | 9.5 | |||||||
Steel rated pressure | 38 | 38 | 24 | 18.5 | 18.5 | 14 | 12 | 9.5 | |||||||
Stainless steel rated pressure | 35 | 30 | 25 | 21 | 21 | 10 | 10 | 8 | |||||||
Rated flow (L/min) | 5 | 17 | 50 | 75 | 190 | 270 | 750 | 1600 | |||||||
Temperature range (NBR) | -25℃ to +125℃ | ||||||||||||||
Features:
1.Ball lock
2. Manual operation
3. Smooth bore permits free flow of liquid or gas
4. Male and female NPTF, BSPP and hose stem connections
