Home > Products > Hydraulic Quick Couplings > Aluminum Camlock Hose Shank Fitting Type D Female Coupler Female Thread

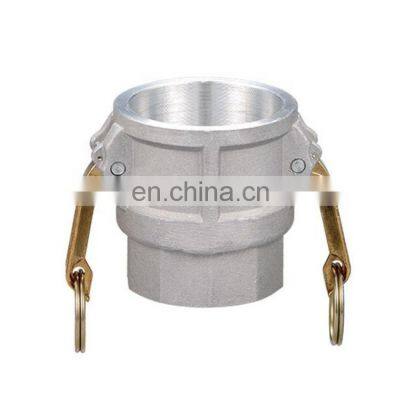

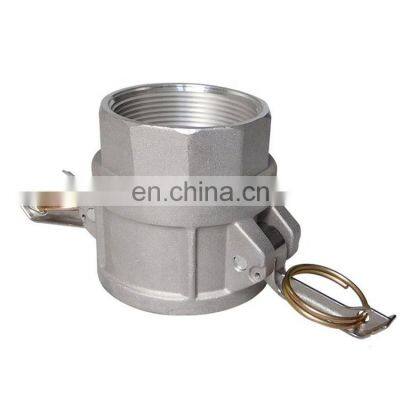

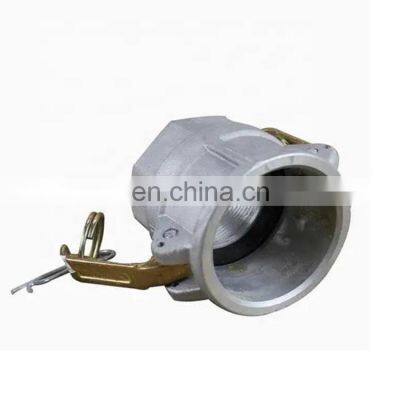

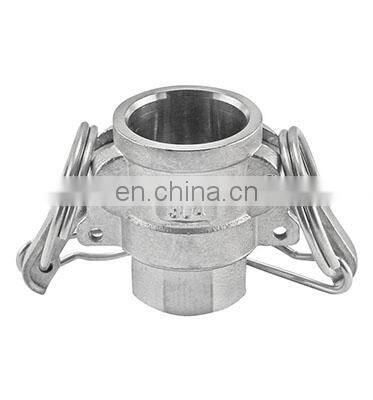

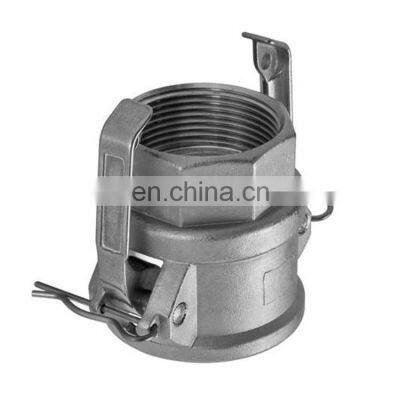

Aluminum Camlock Hose Shank Fitting Type D Female Coupler Female Thread
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Camlock Hose Shank Fitting Aluminum Hose Barb Coupler Boss-Lock Cam & Groove Type C Coupler
-
10% Discount Poppet Type With Pressure Relief Function 1/2 Inch TFH Hydraulic Quick Coupling for Machinery
-
Boss-Lock Cam & Groove Type Coupler Type B Female Cam Lock Hose Coupler
-
Stainless Steel Crimp Camlock Coupler for Fire-fighting Pumps Type A Camlock Adapters
-
Made in China Carbon Steel 3/8 Inch BSP Female and Male Part TFH Hydraulic Quick Couplings for Tractor
-
Hot Sale Factory Direct Supply 3/8 Inch BSP TFH Hydraulic Quick Release Coupling for Agricultural Machinery
Product Description
Product Description

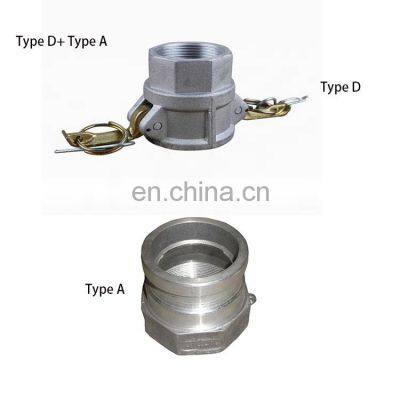

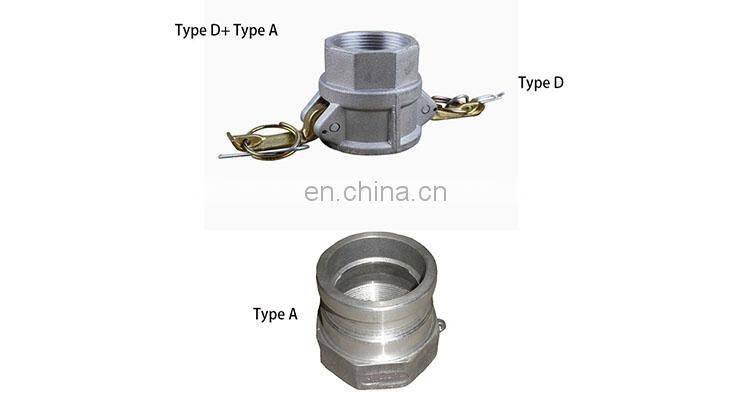

The female camlock end fits into any male camlock fitting of the same size. Type D Camlock Couplers are often used with Type A adapters, and sometimes be used with Type E & F and Type DP (Dust Plug) of the same size. Stainless Steel 316 couplers are equipped with stainless steel handles, rings and pins to extend life expectancy.
Product Show

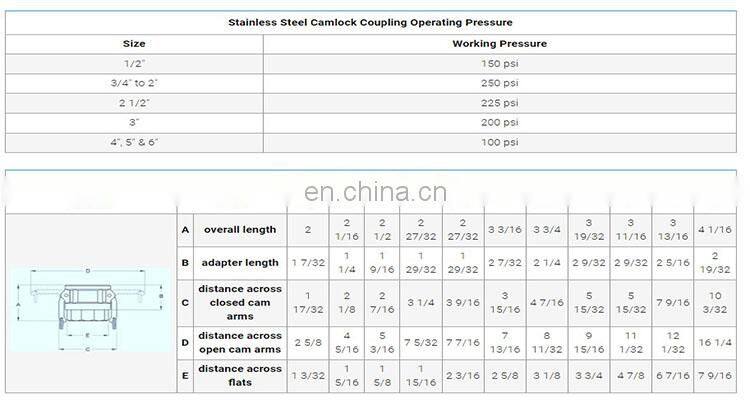

Specifications
Features:
1. Extremely high working temperature;
2. Superior corrosive resistance;
3. Durability;
4. Keep lustrous appearance;
5. Prevent contamination.
Product description:
Body material: stainless steel 316;
Handles & pins: stainless steel 304;
Gaskets: Buna-N, EPDM, PTFE & food grade silicone gasket;
Size: 1/2" to 6";
Thread: NPT, BSPP, BSPT;
Working pressure: no more than 250 psi;
Temperature range: -150°F to +500°F (-101°C to +260°C);
Standard: MIL-C-27487 (A-A-59326);
MOQ: 50pcs.
Application
Given its good abrasion resistant, does no rust, hygienic, high temperature and pressure resistance. Stainless steel cam & groove fittings are used with food, food, vegetable oil, water, hydraulic oil, coolants, gasoline and petroleum products.
Why Choose Us
Recommend Products
Company Profile
Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our
products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
