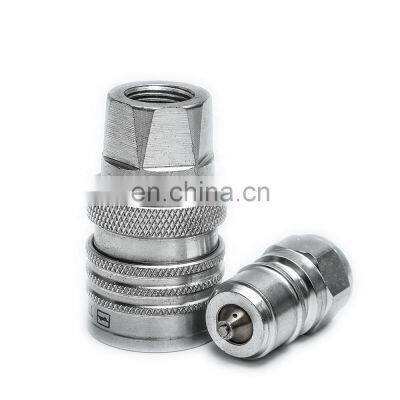

TEMA Close Type Quick Coupling for construction equipment Truck Type High Flow Hydraulic Quick Couplers
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
TEMA Interchange Quick Release Coupling for agricultural equipment hydraulic Pressure Release Tool
-
High Flow Hydraulic Quick Couplers for excavators TEMA Interchange Quick Release Coupling
-
hydraulic Pressure Release Tool quick connect couplings with pressure eliminator
-
coupling plug CEJN 525 for track loaders TEMA T series hydraulic/truck/trailer couplings
-
Truck Type High Flow Hydraulic Quick Couplers High Flow Hydraulic Quick Couplers
-
quick connect couplings with pressure eliminator Parker Tema Rectus 5000 Series Quick Connect Coupling
Product Description
Product Description
These High Quality Tema interchange hydraulic couplings are China made. These are widely used in the heavy transport industry. These are compatible with genuine Tema brand, are of the same quality, but at a much better price. These have a locking ring as per Tema, & have 'DECOMPRESSION' for ease of connecting.
Product Show
Specifications
Body size (inch) | 3/8 | 1/2 | 3/4 | 1 | |||
Rated pressure(Mpa) | 35 | 35 | 28 | 25 | |||
Rated flow (L/min) | 50 | 75 | 180 | 270 | |||
Temperature range (NBR) | -25℃ to +125℃ | ||||||
Features:
1.Poppet valves available to prevent uncoupled leakage
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Critical parts are hardened for durability.
4. Dependable ball-locking mechanism holds the mating halves together.
5. Socked and plug are precision machined from solid bar stock.
6. Compatible with TEMA TH5000 Series.
Why Choose Us
Recommend Products
Company Profile
Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our
products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
