Home > Products > Hydraulic Quick Couplings > 10% discount poppet type With pressure relief function 1/2 inch TFH hydraulic quick coupling for machinery

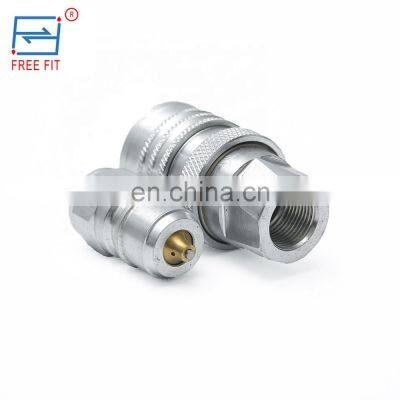

10% discount poppet type With pressure relief function 1/2 inch TFH hydraulic quick coupling for machinery
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Boss-Lock Cam & Groove Type Coupler Type B Female Cam Lock Hose Coupler
-
stainless steel crimp camlock coupler for fire-fighting pumps Type A camlock adapters
-
Made in China carbon steel 3/8 inch BSP female and male part TFH hydraulic quick couplings for tractor
-
Hot sale factory direct supply 3/8 inch BSP TFH hydraulic quick release coupling for agricultural machinery
-
straight-through design Hansen coupling for Food and Beverage Injection Molding hydraulic coupler
-
Straight Through Ball Lock Hydraulic Fitting for Steam cleaning Fluid Couplings
Product Description
Product Description
The joints are widely used in the following public facilities: leakage of hydraulic oil will constitute a serious safety hazard, especially for the overhead bucket crane used for the maintenance of high-voltage power transmission line, such joints are also used in the construction, railway maintenance and the rapid switching of hydraulic machines and tools in the mining industry, which are easy to clean and can be ideally used in such special environment.
Features and Materials
Materials:
1.Coupling: steel (Yellow zinc-chromate plating) or 304 stainless steel or 316 SS
2.Nipple: High grade carbon steel with heat treated wear parts or brass or stainless
3.Wide Variety of Seal Materials Available, we can design and change the seal according to Customer’s usage.
Features:
1.The TEMA Standard Series is characterised by a low pressure drop and maximum flow
capacity.
2.The coupling system is available as double shut-off or straight through version.
3.High operating pressure and Compact dimension.
4.Double safety through a double O-ring seal.
5. A safety closing ring prevents unintentional uncoupling and 4:1 Safety Factor.
6.These quick couplings are incredibly versatile and can be found in a number of applications, including: Automotive, Medical
Technology, Aeronautics, Trade, Food Technology, Safety Technology, Chemical Technology, Electrical Engineering, Mobile
Hydraulics, Machinery & Construction
Technology, Aeronautics, Trade, Food Technology, Safety Technology, Chemical Technology, Electrical Engineering, Mobile
Hydraulics, Machinery & Construction
7.Due to the Pressure Eliminator version for coupling and plug the connection is possible up to the operating pressure.Construction, portable hydraulic tools and utility equipment are a few of the many industries where the connect-under-pressure option saves valuable time & money.
Specifications
Body Size(Inch） | 3/8 | 1/2 | 3/4 | 1 | ||||
Rate pressure(Mpa) | 35 | 35 | 28 | 25 | ||||
Rated Flow(L/Min) | 50 | 75 | 180 | 270 | ||||
Temperture range(NBR) -25°C to +125°C | ||||||||
Company Profile
Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
