Home > Products > Hydraulic Quick Couplings > Made in China female and male 1/4 inch screw type VVS hydraulic quick coupling for agricultural machinery

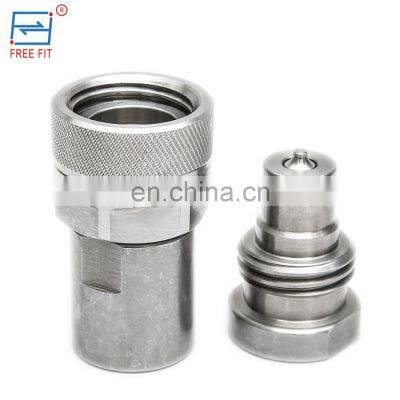

Made in China female and male 1/4 inch screw type VVS hydraulic quick coupling for agricultural machinery
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
M16*1.5 Socket and plug for forest equipment Open close Type Hydraulic Quick Couplings
-
Cam & Groove Adapter with a fixed flange for Oil distribution Camlock Coupling with Flange
-
Made in China Best price female and male 1 inch VCR screw thread hydraulic quick coupling for tractor
-
Made in China disconnect and connect 1/2 inch Flat face type hydraulic quick coupling for skid steer loader
-
Factory direct supply no leak 1/2 inch brass material ISO 7241-B KZD Hydraulic quick coupling for tractor
-
Dust Plug camlock fitting hose fitting Dust Plug Cam-and-Groove 316 Stainless Steel
Product Description
Product Description
Free Kit VVS series is screw-on couplings, commonly used for applications characterized by very high working pressures and peaks. Heavy duty internal components guarantee the maximum safety and reliability. Faster proprietary profile. Interchangeable with Faster VV series.
Features and Materials
Materials:
1. Body: Carbon steel (Yellow zinc-chromate plating)
2.Seal:NBR
3.Thread: BSPP(G) or NPT female thread, other thread available for customized order
4.Wide Variety of Materials Available, we can design and change the coupling according to Customers' requirement
Features:
1.Heavy-duty design as standard, chrome plating treatment provides advanced anti-rust performance
2.Resistance damage from high flow and the pressure of impulse that providing advanced perfo rmance
3.Employsa threaded sleeve locking mechanism, mates with matching male threads on the nipple. The two halves must be manually threaded together for connection.
4.Assembled valve seal can permits full pressure connect and disconnect, without seal washout
5.Connect with pressure up to 5 MPA is possible
6.Interchange with Faster VVS Series
7.Disconnexion by unscrewing the two parts, shut off by poppet valve. This coupling is mainly applied for Agriculture, Industry, hydraulic tools, Earth moving, Building & Construction.
Specifications
Body Size(Inch） | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | |||||||
Rate pressure(Mpa) | 80 | 80 | 73 | 73 | 63 | 60 | 40 | 35 | |||||||
Rated Flow(L/Min) | 8 | 18 | 40 | 55 | 100 | 140 | 300 | 1000 | |||||||
Temperture Range | -25°C to +125°C | ||||||||||||||
Company Profile
Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
