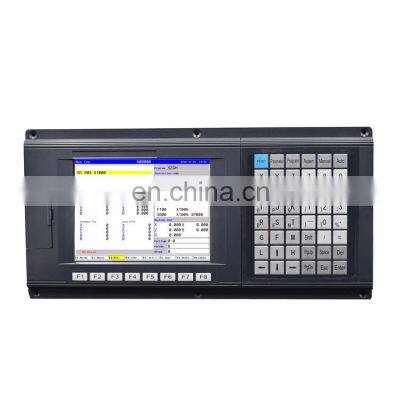

The powerful and high performance SZGH-CNC2000MDcb-6 6 Axis lathe and milling CNC controller

The powerful and high performance SZGH-CNC2000MDcb-6 6 Axis lathe and milling CNC controller

System technical parameter:

• controllable axes:X,Y,Z,A,B five axes.

• linkage axes:Arc 2-3 axes, liner 2-5 axes.

• pulse equivalent:X,Y,Z,A,B axes:0.001mm.

• max speed:X,Y,Z,A,B:60000mm/min.

• cutting speed:1-10000mm/min.

• min input unit:0.001mm.

• program size range:± 99999.999.

• 99 tools management.

• program code:ISO-840 international standard.

• program coordinate system definition:ISO-841.

• chassis protection complies with regulation of IP43.

System function:

1) Auto-diagnosis function:

All around diagnosis of CPU, storage, LCD, I/O interface, parameter status, coordinates, machining program etc. shall execute when the system starts or resets. In operation, it makes real time diagnosis of power, spindle, limit and all I/O interface.

2) Compensation function:

automatic backlash compensation.

tool radius automatic compensation.

tool radius automatic offset and sharp angle transition.

leading screw pitch error automatic compensation.

3) Abundant instruction system:

scaling up/down instruction.

mirror machining instruction.

multiple tool offset instruction.

program cycle, jump, call and different program ending.

multiple positioning instruction:starting point,setting fixed point, etc.

liner, circular, spiral line interpolation instruction.

program management instructions: program cycle, call, transfer and different program ending method, etc.

6 work piece coordinates system .

4) English menu, full screen edition:

Easy operation, convenient viewing.

5) Abundant debugging functions:

it can point out clearly what errors of operation are and guide to correct them.

6) Program changing between CNC system and IBM/PC series compatible computer

it can conduct CAD/CAM/CAPP auxiliary programming by using Pc series compatible computer's abundant software resources,then transfer the CNC program into the system to machining through(USB movable U disc copy port,RS232 port).Likewise it also can transfer the program from system to PC through communication port.

System operation condition

1) Power supplying

AC 220V(+10%/-15%), Frequency 50Hz±2%. power:≤ 200W.

Note:it must use isolation transform to supply power,first input:380V

2) Climate condition

operation condition:temperature 0~45°C,relative moisture 40-80%.

storage & transportation condition:temperature -40~55°C,relative moisture <93%(40°C).

atmosphere pressure:86-106kpa.

3) operation environment :

No excessive flour dust, no acid, no alkali gas and explosive gas, no strong electromagnetic interference.
