2 Axis CNC Lathe Controller Micro Machining 8 Inch Real Color LCD 8537101101 Cnc990tdb-2 30m/min 32 Bits CN;GUA `24x24 RS232

         990TDb two axis lathe CNC system is economic type and 800x600 8 inch real color LCD displayer, base on ARM microprocessor and PDF, support automatic tool change function. Matching with Servo motor and driver , total product solution can be provide by Shenzhen Guanhong Automation CO.,LTD (short name:SZGH ).

Features:

1)32 bits high performance, low power consumption industrial grade ARM microprocessor.

2)The max speed is 30 m/min, feeding speed is 15m/min

3)32Mb user store room.

4)800x600 8 inch real color LCD displayer.

5)Touch screen main and sub panel.

6)High anti-jamming switch power.

7)USB movable U disc copy interface.

8)RS232 interface.

9)Spindle servo speed control/spindle frequency convenient speed control.

10)max screw processing thread pitch is 1000MM

Technical specification:

•X,Y two axis lathe

•liner, circular, spiral line interpolation instruction.

•min input unit:0.001mm.

•program size range:± 99999.999.

•Feeding speed:0.001-15m/min

•Max speed: is 30 m/min

• length Compensation

•tool radius automatic compensation

•RS232 and U flash connection port

•Spindle servo speed control/spindle frequency convenient speed control.

•max screw processing thread pitch is 1000MM

•I/O 24X24 input and output

System operation condition:

1) Power supplying

AC 220V(+10%/-15%), Frequency 50Hz±2%. power:≤ 200W.

Note:it must use isolation transform to supply power,first input:380V

2) Climate condition

operation condition:temperature 0~45°C,relative moisture 40-80%.

storage & transportation condition:temperature -40~55°C,relative moisture <93%(40°C).

atmosphere pressure:86-106kpa.

3) operation environment :

No excessive flour dust, no acid, no alkali gas and explosive gas, no strong electromagnetic interference.

Application: CNC lathe machinery , grinder machinery , standard CNC machinery

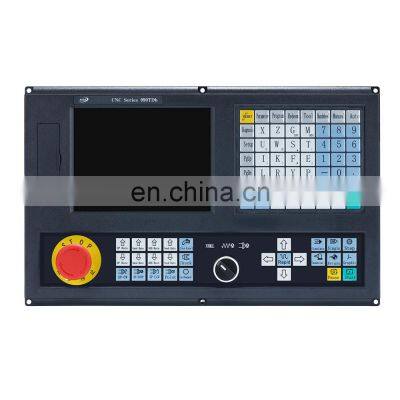

Prouct actual picture:
