Product Description
Human-Design cnc lathe & turning controller with absolute servo system
Product Description
SZGH-CNC1000TDc lathe CNC controller is updated version with closed loop Lathe CNC controller, and has 2 axis, 3 and 4 axis , support PLC programm, tool change functoin, and able to work with absolutely encoder servo motor, 8 inch display(800x600) and 2-channel analog, with C cutter offset, I/O 32X32, PLC and macro function, widely applied in CNC lathe machinery, lathe machine center and engraving equipment etc
Technical specification:
1) 800x600 8.4 inch real color LCD displayer.
2) Support PLC and macro function, and automatic tool exchange function .
3) 100Mb user store room, 2-channel analog
4) 56 input, and 32 output.
5) Touch screen main and sub panel.
6) High anti-jamming switch power.
7) USB movable U disc copy interface.
8) RS232 interface.
9) Spindle servo speed control/spindle frequency convenient speed control.
10) Max screw processing thread pitch is 1000MM
11) 32 bits high performance, low power consumption industrial grade ARM11 microprocessor.
12) C cutter offset function.
13) updated version with closed loop
14) Support PLC programm, tool change functoin
System constructions:
32 bits high performance, low power consumption industrial grade ARM microprocessor.
128MB memory.
100Mb user store room.
640x480 8.4 inch real colour LCD displayer.
Touch screen main and sub panel.
High anti-jamming switch power.
USB movable U disc copy interface.
RS232 interface.
Spindle servo speed control/spindle frequency convertion speed control.
Manual pulse generator.
System technical parameter:
controllable axes:X,Z,C/Y,A,B five axes.
linkage axes:Arc 2-3 axes, liner 2-5 axes.
pulse equivalent:X,Z,C/Y,A,B axes:0.001mm.
max speed:X,Z,C/Y,A,B:60000mm/min.
cutting speed:1-10000mm/min.
min input unit:0.001mm.
program size range:± 99999.999.
99 tools management.
controllable liner vertical type or revolving disc type tool changer.
program code:ISO-840 international standard.
program coordinate system definition:ISO-841.
chassis protection complies with regulation of IP43.
System function:
1.Auto-diagnosis function
All around diagnosis of CPU, storer, LCD, I/O interface, parameter status, coordinates, machining program etc. shall execute when the system starts or resets. In operation, it makes real time diagnosis of power, spindle, limit and all I/O interface.
2. Compensation function
automatic backlash compensation.
tool radius automatic compensation.
tool radius automatic offset and sharp angle transition.
leading screw pitch error automatic compensation.
3 .Abundant instruction system
scaling up/down instruction.
mirror machining instruction.
mutiple tool offset instruction.
program cycle, jump, call and different program ending.
multiple positioning instruction:starting point,setting fixed point,etc.
linera, circular,spiral line interpolation instruction.
program management instructions: program cycle, call, transfer and different program ending method, etc.
6 workpeices coordinates system .
Product picture
Application:
Metal parts processing ( car/steamship metal processing industry ), glass product ( mobile, TV, computer, electrical switch etc,. glass board proceeding ) , wood furniture etc,. processing produce line (lathe, milling, grinder processing etc)

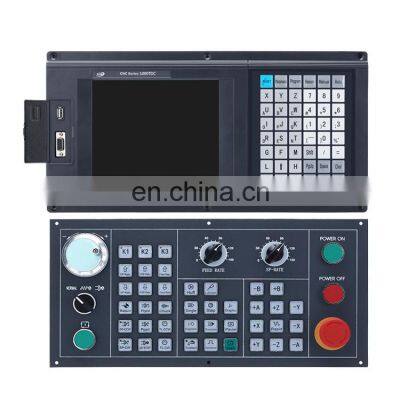

Product physical picture:
Packaging & Shipping
1.Industrial packing: plastic bag +foam boxes+ carton +wooden pallets
2.Commercial packing: plastic bag+ foam boxes + carton
3.As the clients’ requirement
Delivery Detail: Normally ready goods and stock within 2-5days
Our Services
Company Information
Our Partners
Certifications
Contact Us
FAQ
| 1.How about your screen displayer? |
| SZGH CNC controller is bigger display interface. Compare with other supplier’ controller normally is 7.0 inch display , our controller is 8.0 inch real color LCD displayer . |
| 2.Does your CNC controller have PLC function? |
| Yes,it does.We have two kinds different configuration,one is 24*24 I/Os,the other is 32*32 I/Os.We support specified PLC software for free.Other supplier’ CNC controller does not have the PLC programming function, but our CNC1000M series has the function, also in order to convenient to our clients operation, our CNC can work programming by the computer directly, after you finished , you can copy to controller , so that you do not need stay at front of machinery , very tire to work. |
| 3.Do you support customized manufacturing? |
| Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo. |
| 4.Does your cnc control system support ATC function? |
| Yes,our cnc control system support ATC function , our control system can be with many kinds of tool magazine according to customer's askes. |
| 5.How about after-sales service? |
| We have a professional technology team that support best ,fast and professional technological support for our cusomter. |
