Home > Products > CNC Controller > New modbus type 5 axis CNC milling controller for big VMC machine centre support PLC Ethernet similar as GSK motor controller

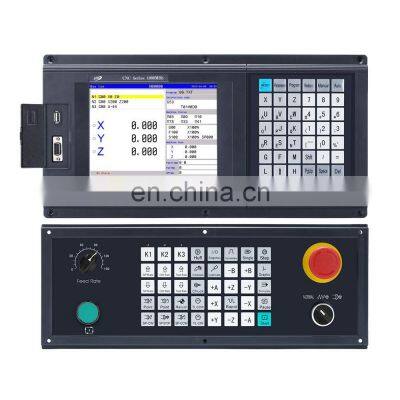

New modbus type 5 axis CNC milling controller for big VMC machine centre support PLC Ethernet similar as GSK motor controller

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

SZGH CNC Controller, including economic type, standard type, high-performance type and Modbus type( which can support EtherCAT/Powerlink). It can be 16 axes at max.

1)2-8 Axes Modbus series CNC controller for milling or lathe & turning center. Each axis can be controlled with any speed alone.

2) Support Modbus(Powerlink)/EtherCAT absolute type servo system

3) 800x600 8.4 inch real color TFT displayer

4) Support PLC and macro function, ARM core, and DSP , FPGA

5) 2ms interpolate cycle,max speed is 300m/min, Interpolating speed is 30m/min

6) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing

7) High anti-jamming switch power(220VAC -> 24VDC&5V)

8) Standard:128MB Memory ,can expansion to 32G

9) With USB interface,it supports file operation in flash disk,system configuration and software upgrade

10) Spindle control with Fully Pulse&dual Analog voltage output(0~10V)

11) 32 bits high performance, low power consumption industrial grade ARM microprocessor.

12) Basic I/O : 48*32 , can expansion to 64*32,user can be edited freely

13) 54pcs of workpiece coordinate system&Pre-Read function without limitation

14) English menu, program and interface, full screen edition

Specification

Applicable Industries	Machinery Repair Shops, Manufacturing Plant, Home Use, Retail
Brand Name	SZGH
Core Components	PLC, Macro programming
Axis	5 axis
Interface	USB+RS232 Communction Port
Function	PLC, Macro, ATC, Ethernet
User Store Room	128MB
CPU	ARM(32bits)+DSP+FPGA
Display	8 Inch Real Color LCD
Speed	60m/min
Application	Milling, Drilling, Router, Engraving

Total Solution

SZGH can provide a total solution for your CNC machines!

1. CNC Controller, including economic type, standard type, high-performance type and Modbus type( which can support
EtherCAT/Powerlink). It can be 16 axes at max.
2. AC Servo system, 50W to 11KW ac servo motor, which including incremental or absolute type encoder. Modbus RS485 servo driver, with 220VAC and 380VAC!
3. AC Spindle Servo System, 1.5KW to 132KW, Max Speed can reach to 15000rpm. It can support threading and tapping!

1. Good actual Feedback from our clients

SZGH staff all are well-educated and has high 100% enthusiasm to give best service to our all clients!

2. Professional Technical Support

The actual case from our Thailand clients, our engineers helped him to solve all technical questions well, and finally his machine runs perfectly! The clients become our good friend and buy from us continuously now.

3. Our Advantages

1) Certified actual products-we have a zero-tolerance policy for asset recovery vendors.

2) The lowest package prices-we always offer lower price than other companies.

3) Professional technical engineer team-the possible fastest response and support for clients' demands.

4) Quality guarantee-free, one-year warranty and life-long maintenance.

5) Fast, professional and reliable international delivery-flexible and low cost delivery solution for clients.

Packing & Delivery

with cartion, as standard package of SZGH

Company Profile

ShenZhen GuanHong Automation Co.,LTD(short name SZGH) is one of the leading CNC Automation company in China, we are in the field over 8 years, which are professional in providing CNC total solution for milling machine, Router, turning, lathe, and grinding machine, also developed more than 25 models Robotic arm in mass production.
SZGH was awarded as New high-tech enterprise in China since 2018, which rely on Technical Center force to do support, efficient, strict quality management team to guide, software and hardware facilities, first-class service.
There are many agents around the world, such as, USA, Turkey, Morocco, Pakistan, South African and Moldova etc.

Our tenet is Customer First!

FAQ

1. who are we?
We are based in Guangdong, China, start from 2013,sell to Eastern Europe(20.00%),Mid East(20.00%),Southeast Asia(15.00%),Southern Europe(10.00%),South America(8.00%),North America(5.00%),Western Europe(5.00%),Eastern Asia(4.00%),Central America(4.00%),Northern Europe(4.00%),Africa(3.00%),Domestic Market(2.00%).

2. how can we guarantee quality?
Always a 100% pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
CNC Controller/Servo Motor & Servo Driver/Spindle Servo Motor & Spindle Servo Drive,Robot Arm

4. why should you buy from us not from other suppliers?
we can provide with suitable package solution by CNC system and motor ,driver,Guanhong has professional technical team,customized design,high quality guarantee,competitive quotation, honest and reliable business is our tenet. Your satisfy is our greatest .

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDP,DDU,DAF；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
