cnc milling and drilling machine controller with usb

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

BEST PRICE!CNC milling controller/usb cnc controller

Product Description

SZGH-CNC1000MDc-4 axis CNC drilling and milling controller , it is closed loop CNC controller and able to work with absolutely encoder motor , support PLC , macro and automatic tool exchange and encoder feedback function,specilized in milling machine center, with I/O 32X32,support bus network connection, and absolutely type motor Linear encoder feedback etc, it is high classes and very stronger CNC milling controller..

Feature:

1) 32 bits high performance, low power consumption industrial grade ARM microprocessor.

2) 64MB memory.

3) 32Mb user store room.

4) 640x480 8 inch real colour LCD dis-player.

5) Touch screen main and sub panel.

6) High anti-jamming switch power.

7) USB movable U disc copy interface.

8) RS232 interface.

9) Spindle servo speed control/spindle frequency conversion speed control.

10) Manual pulse generator.

11) PLC and macro function

12) English menu, program and interface, full screen edition

13) CNC1000MDc include 3 axis, 4 and 5 axis ,

14) closed loop CNC controller and able to work with absolutely encoder motor

Application:CNC milling machinery; milling center; wood working machine; numerically control grinder; MTDC applied to engraving CNC machine.

Technicial Specifacation:

1) System technical parameter

controllable axesX,Y,Z five axes.

linkage axesArc 2-3 axes, liner 2-3 axes.

pulse equivalentX,Y,Zaxes:0.001mm.

max speed X,Y,Z60000mm/min.

cutting speed 1-10000mm/min.

min input unit 0.001mm.

program size range ± 99999.999.

99 tools management.

program code ISO-840 international standard.

program coordinate system definition ISO-841.

chassis protection complies with regulation of IP43.

2)System function

Auto-diagnosis function

All around diagnosis of CPU, storer, LCD, I/O interface, parameter status, coordinates, machining program etc. shall execute when the system starts or resets. In operation, it makes real time diagnosis of power, spindle, limit and all I/O interface.

Compensation function

automatic backlash compensation.

tool radius automatic compensation.

tool radius automatic offset and sharp angle transition.

leading screw pitch error automatic compensation.

Abundant instruction system

scaling up/down instruction

mirror machining instruction.

mutiple tool offset instruction.

program cycle, jump, call and different program ending.

multiple positioning instruction starting point setting fixed point,etc.

linera, circular spiral line interpolation instruction.

program management instructions: program cycle, call, transfer and different program ending method, etc.

6 work pieces coordinates system .

English menu, full screen edition

Easy operation, convenient viewing.

Abundant debugging functions

it can point out clearly what errors of operation are and guide to correct them.

Program changing between CNC system and IBM/PC series compatible computer

it can conduct CAD/CAM/CAPP auxiliary programming by using Pc series compatible computer's abundant software resources then transfer the CNC program into the system to machining through USB movable U disc copy port S232 port.Likewise it also can transfer the program from system to PC through communication port.

Appearance Dimension

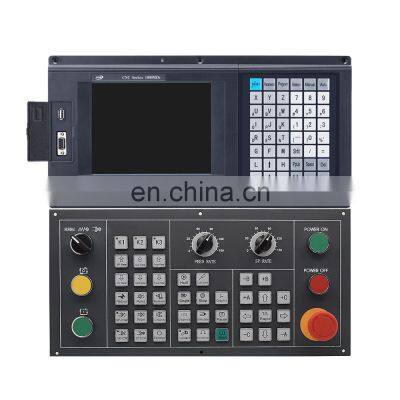

Product picture

Packaging & Shipping

1.Industrial packing: plastic bag +foam boxes+ carton +wooden pallets

2.Commercial packing: plastic bag+ foam boxes + carton

3.As the clients’ requirement

Delivery Detail: Normally ready goods and stock within 2-5days
