SZGH Hot selling USB 4-axis CNC milling ATC, macro function controller

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Best price hot selling usb 4 axis CNC Milling ATC , Macro function Controller

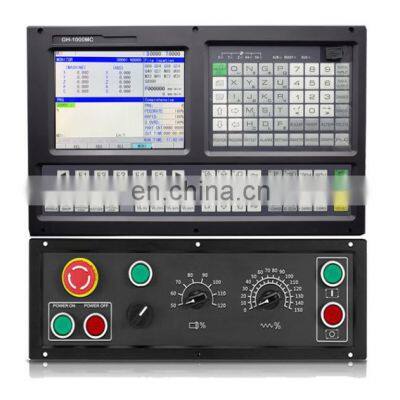

CNC milling controller GH-1000MC include 3 axis, 4 and 5 axis , it is closed loop CNC controller and able to work with absolutely encoder motor , support PLC , macro and automatic tool exchange and encoder feedback function,specilized in milling machine center, with I/O 36X36,support bus network connection, and absolutely type motor Linear encoder feedback etc, it is high classes and very stronger CNC milling controller.

Product Description

Feature:

1)3-5 Axis Fully English Type CNC Milling controller

2) 800x600 8.4 inch real color LCD displayer

3) Electric Turret & Binary code turret,Max: 99 pcs tools

4) Support ATC , Macro function and PLC function

5) Max speed is 60m/min, feeding speed is 24m/min,0.1um control precision

6) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing

7) High anti-jamming switch power(100V-240VAC 50Hz/60Hz -> 24VDC)

8) 64MB Memory , 56Mb user store room

9) With USB interface,it supports file operation in flash disk,system configuration and software upgrade

10) Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V

11) 32 bits ARM microprocessor+FPGA Technology.

12) Basic I/O: 36X36 , can be edited freely

13) cutter offset : C

Application: CNC milling machinery; machining center; milling center; wood working machine; numerically control grinder; MTDC applied to engraving CNC machine.

Technical specification:

1) System technical parameter

controllable axes:X.Y.Z.A.B five axes.

linkage axes:Arc 2-3 axes, liner 2-5 axes.

pulse equivalent:X.Y.Z.A.B axes:0.001mm.

max speed:X.Y.Z.A.B:60000mm/min.

cutting speed:1-10000mm/min.

min input unit:0.001mm.

program size range:± 99999.999.

99 tools management.

2)System function

Auto-diagnosis function

All around diagnosis of CPU, storer, LCD, I/O interface, parameter status, coordinates, machining program etc. shall execute when the system starts or resets. In operation, it makes real time diagnosis of power, spindle, limit and all I/O interface.

Compensation function

automatic backlash compensation.

tool radius automatic compensation.

tool radius automatic offset and sharp angle transition.

leading screw pitch error automatic compensation.

Abundant instruction system

scaling up/down instruction

mirror machining instruction.

mutiple tool offset instruction.

program cycle, jump, call and different program ending.

am changing between CNC system and IBM/PC series compatible computer

it can conduct CAD/CAM/CAPP auxiliary programming by using Pc series compatible computer's abundant software resources then transfer the CNC program into the system to machining through USB movable U disc copy port and Communication RS232 port.Likewise it also can transfer the program from system to PC through communication port.
