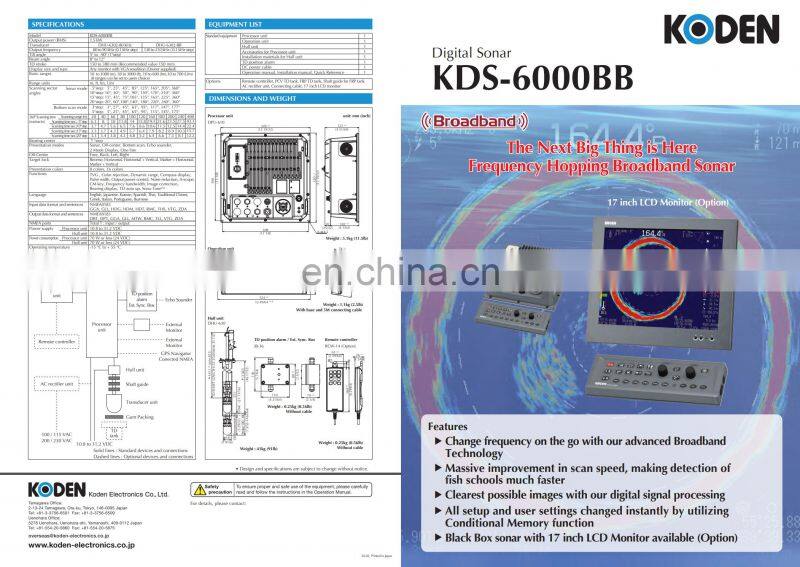

Marine Electronics Maritime Navigation Communication Koden KDS-6000 BB Echo Sounder Fish Finder Broadband Technology Sonar

Please contact me before purchasing for the shipment and real product price and detailed configuraiton.

If you want to make bulk purchase or be our agent, please contact with us.

Features

Advanced Broadband Technology

KDS-6000BB is world first Broadband searchlight sonar. The 80 to 90 kHz frequency or 130 to 210 kHz frequency can be selected depending on the Transducer. The most suitable output frequency can be selected in 0.1 kHz step depending on the fishing method and the target species from closer range to longer range. Selection of frequency is as easy and quick as tuning a radio. Flexible selection of frequency enables the user to stay away from interference with the sounders on the other vessels.

Digital signal processing enables high resolution images

Both of high resolution in closer range and noise reduction performance in longer are materialized at high level with newly-developed digital signal processing, KDP-V (Koden Digital Processing series V).

High scan speed for fast fish detection

Scanning speed is remarkably increased by adding 15°and 20° in scanning sector angle steps. These steps are not eguipped with the current model. lt can detect surrounding fish schools quickly.

Four different presentation modes available for various fishing scenes

Sonar mode is useful for searching around the ship.

Off-center mode helps to show more information of ahead.

Echo sounder mode for displaying image like fishfinder is also available.

Bottom scan mode can display reflected echoes from underwater and seabed in a cross selection image.

User friendly operation with Conditional Memory keys

Six of CM(Condition Memory) keys offer the user to preset all the current settings and recall them instantly. It is like six sonars in one unit.

Black Box type

KDS-6000BB comes in black box. The user can select a monitor from the market or the optional 17 inch LCD monitor.

Space-saving Hull unit

Newly-desighed compact Hull unit allows for saving the space on your vessel.

Main Specifications
