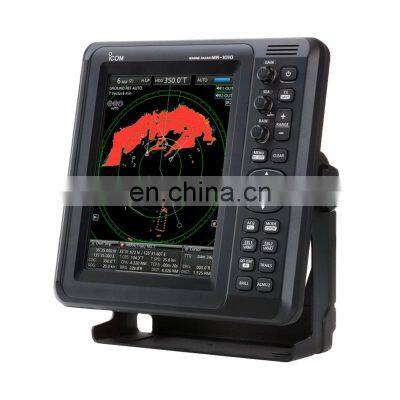

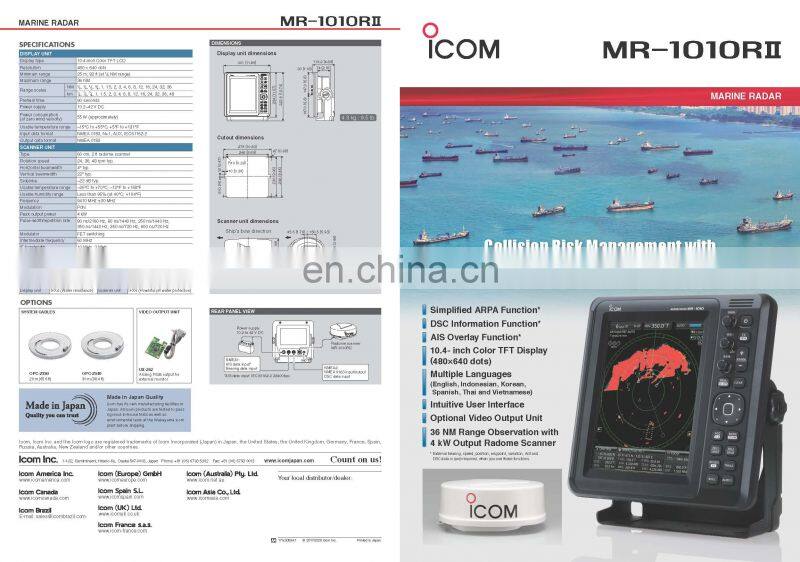

Home > Products > MARINE RADAR > Marine Electronics Maritime Navigation Communication ICOM MR-1010RII CCS Ship Boat 36NM 4KW 2FT Radome Antenna 48NM Marine Radar
Marine Electronics Maritime Navigation Communication ICOM MR-1010RII CCS Ship Boat 36NM 4KW 2FT Radome Antenna 48NM Marine Radar
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Marine Electronics Maritime Navigation Communication Model Furuno 1815 CCS 4kw36nm Radome 8.4'' Display Ship Boat Marine Radar
-
Marine Electronics Maritime Navigation Communication Model Furuno 1835 CCS 4kw 36nm10.4'' Display Ship Boat x Band Marine Radar
-
Marine Electronics Maritime Navigation Communication Model Furuno 1945 CCS 6kw 64nm 10.4'' Display Ship Boat x Band Marine Radar
-
Marine Electronics Maritime Navigation Communication ICOM MR-1220 CCS 4kw 6KW 12.1'' Display Ship Boat Marine Navigation Radar
-
Marine Electronics Maritime Navigation Communication FR-8065 8**5 CCS 6kw 72nm 12.1'' Display 4FT 6FT Ship Boat Marine Radar
-
Marine Electronics Maritime Navigation Communication Furuno FAR-1513 BB CCS 12kw 96nm 4FT or 6FT Antenna Ship Marine Radar
Product Description
Please contact me before purchasing for the shipment and price and detailed configuraiton.
If you want to make bulk purchase or be our agent, please contact with us.
36 NM Range Observation with 4 kW Output Radome Scanner
Simplified ARPA (Automatic Radar Plotting Aids) Function*
The simplified ARPA function helps to prevent a collision risk with other vessels or objects.
Up to five targets can be automatically tracked on the radar echo, when a target enters within the set watch area,
(or up to ten targets can be tracked when manually set).
By selecting one of the targets, the target information such as position, course, speed, CPA, TCPA, bearing,
and distance is shown on the lower side of the display. When the target enters within the CPA and TCPA limits,
an alarm message is displayed with a beep alarm.
DSC (Digital Selective Calling) Information Function*
When connected to a DSC radio and a DSC call is received,
the received message is transferred to the MR-1010RII.
Up to 20 DSC messages can be plotted on the radar echo.
If a MOB position information is transmitted from a DSC handheld transceiver (including Icom IC-M93D),
the MR-1010RII can show the MOB waypoint on the radar echo to assist in search and rescue operation.
AIS (Automatic Identification System) Overlay Function*
When connected to an external AIS device (including Icom IC-M605 and, IC-M506 AIS),
up to 100 AIS target icons are overlaid on the radar echo.
By selecting an AIS icon, vessel information such as AIS class, MMSI number, vessel name, course, speed,
CPA, TCPA, bearing and distance are shown on the lower side of the display.
| Display type | 10.4-inch Color TFT LCD | |
|---|---|---|
| Resolution | 480 × 640 dots | |
| Minimum range | 25 m; 82 ft (at 1⁄8 NM range) | |
| Maximum range | 36 NM | |
| Range scales | NM | 1⁄8, 1⁄4, 1⁄2, 3⁄4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 32, 36 |
| km | 1⁄4, 1⁄2, 3⁄4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 32, 36, 48 |
|
| Preheat time | 90 seconds | |
| Power supply | 10.2–42 V DC | |
| Power consumption (at zero wind velocity) |
55 W (approximately) | |
| Usable temperature range | −15°C to +55°C; +5°F to +131°F | |
| Input data format | NMEA 0183, N+1, AUX, IEC61162-2 | |
| Output data format | NMEA 0183 |
Scanner Unit
| Type | 60 cm; 2 ft radome scanner |
|---|---|
| Rotation speed | 24, 36rpm typ. |
| Horizontal beamwidth | 4° typ. |
| Vertical beamwidth | 22° typ. |
| Sidelobe | −22 dB typ. |
| Usable temperature range | −25°C to +70°C; −13°F to +158°F |
| Usable humidity range | Less than 95% (at 40°C; +104°F) |
| Frequency | 9410 MHz ±30 MHz |
| Modulation | P0N |
| Peak output power | 4 kW |
| Pulse-width/repetition rate | 80 ns/2160 Hz, 80 ns/1440 Hz, 250 ns/1440 Hz, 350 ns/1440 Hz, 350 ns/720 Hz, 900 ns/720 Hz |
| Modulator | FET switching |
| Intermediate frequency | 60 MHz |
| IF bandwidth | 10 MHz, 3 MHz |
| Tuning | Auto/manual selectable |
| Supplied system cable | 15 m; 49.2 ft (OPC-2341) |
