Product Description
Please contact me before purchasing for the shipment and price and detailed configuraiton.
If you want to make bulk purchase or be our agent, please contact with us.

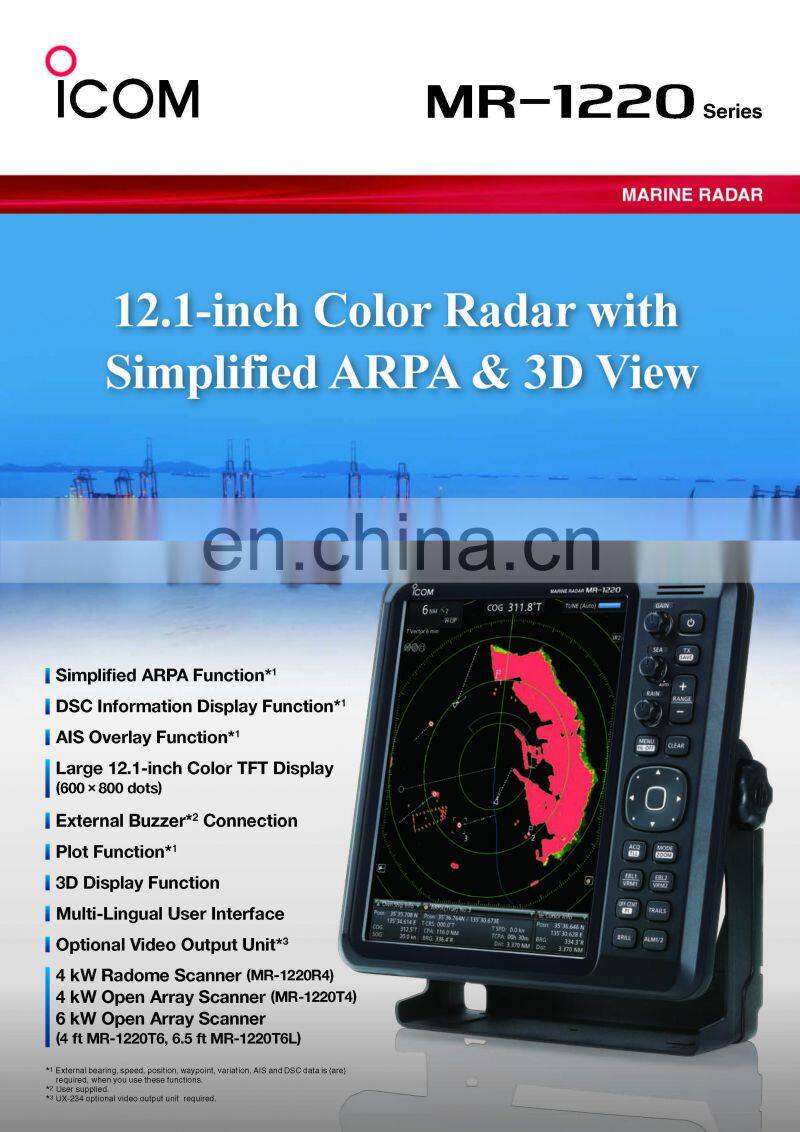

MARINE RADAR
MR-1220
Series
12.1-inch Color Radar with Simplified ARPA & 3D View

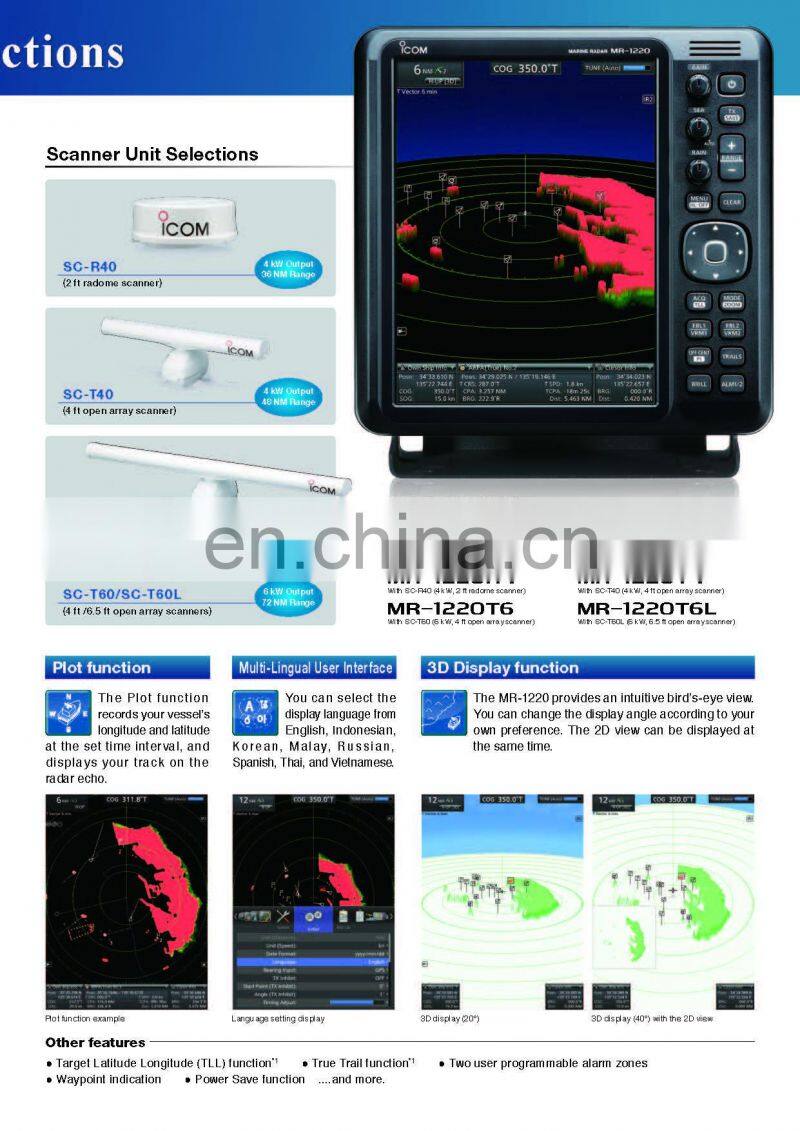

- 2 ft, 4 kW Radome ScannerMR-1220R4
4 ft, 4 kW Open Array ScannerMR-1220T4
4 ft, 6 kW Open Array ScannerMR-1220T6
6 ft, 6 kW Open Array ScannerMR-1220T6L
Simplified Automatic Radar Plotting Aids (ARPA) Function
The simplified ARPA function*1 *2 assists you to prevent your vessel from
colliding with other vessels or objects. When a target enters the preset watch area, it is automatically tracked on the radar echo. By selecting one of the targets, the target information, such as position, course, speed, CPA (Closest Point of Approach), TCPA (Time to CPA), bearing, and distance is displayed. When a target enters the CPA, or it exceeds the set TCPA, an alarm sounds to warn you.
Digital Selective Calling (DSC) Information Display function
When connected to a DSC radio and a DSC call is received, the received message is displayed on the MR-1220*1. The function shows the DSC message, and the location where the DSC call is transmitted. Up to 20 DSC messages can be plotted. A Man Overboard waypoint can also be displayed.
Display Unit
| DISPLAY UNIT | MR-1220R4 | MR-1220T4 | MR-1220T6 | MR-1220T6L |
|---|---|---|---|---|
| Display | 12.1-inch color TFT LCD | |||
| Resolution (H × V) | 600 × 800 dots | |||
| Minimum range | 25 m; 82 ft (at 1/8 NM range) | |||
| Maximum range | 36 NM | 48 NM | 72 NM | 72 NM |
| Power supply requirement | 12/24 V DC | |||
| Dimensions (W × H × D; projections not included) | 301 × 323.5 × 119.2 mm | |||
| Weight (approx.) | 4.8 kg | |||
| Usable temperature range | −15 °C to +55 °C | |||
| Power consumption (approx.) | 60 W | 70 W | 80 W | 90 W |
| Available scanner unit | 2 ft (60 cm) radome | 4 ft (120 cm) open array | 4 ft (120 cm) open array | 6.5 ft (200 cm) open array |
Scanner Unit
| SCANNER UNIT | SC-R40 (MR-1220R4) |
SC-T40 (MR-1220T4) |
SC-T60 (MR-1220T6) |
SC-T60L (MR-1220T6L) |
|
|---|---|---|---|---|---|
| Type | 2 ft (60cm) radome | 4 ft (120 cm) open array | 4 ft (120 cm) open array | 6.5 ft (200 cm) open array | |
| Peak output power | 4 kW | 4 kW | 6 kW | ||
| Rotation speed | 24, 36 rpm typical | 24, 36 rpm typical | 22, 24, 36 rpm typical | ||
| Beamwidth | Horizontal | 4° typical | 2° typical | 2° typical | 1.2° typical |
| Vertical | 22° typical | 23° typical | 23° typical | 23° typical | |
| Sidelobe | −22 dB typical | −24 dB typical | −24 dB typical | −27 dB typical | |
| Transmission frequency | 9410 MHz ±30 MHz | 9410 MHz ±30 MHz | 9410 MHz ±30 MHz | ||
| Dimensions (W × H × D; projections not included) | 640 × 256 × 640 mm | 1217 (dia.) × 395 (H) mm | 1217 (dia.) × 395 (H) mm | 1995 (dia.) ×395 (H) mm | |
| Weight (approx.) | 8 kg | 18 kg | 18 kg | 20 kg | |
| Usable temperature range | –25 °C to +70 °C | –25 °C to +70 °C | –25 °C to +70 °C | ||
| Connection cable | 15 m (OPC-2341) |
20 m (OPC-2342) |
20 m (OPC-2342) |
||
