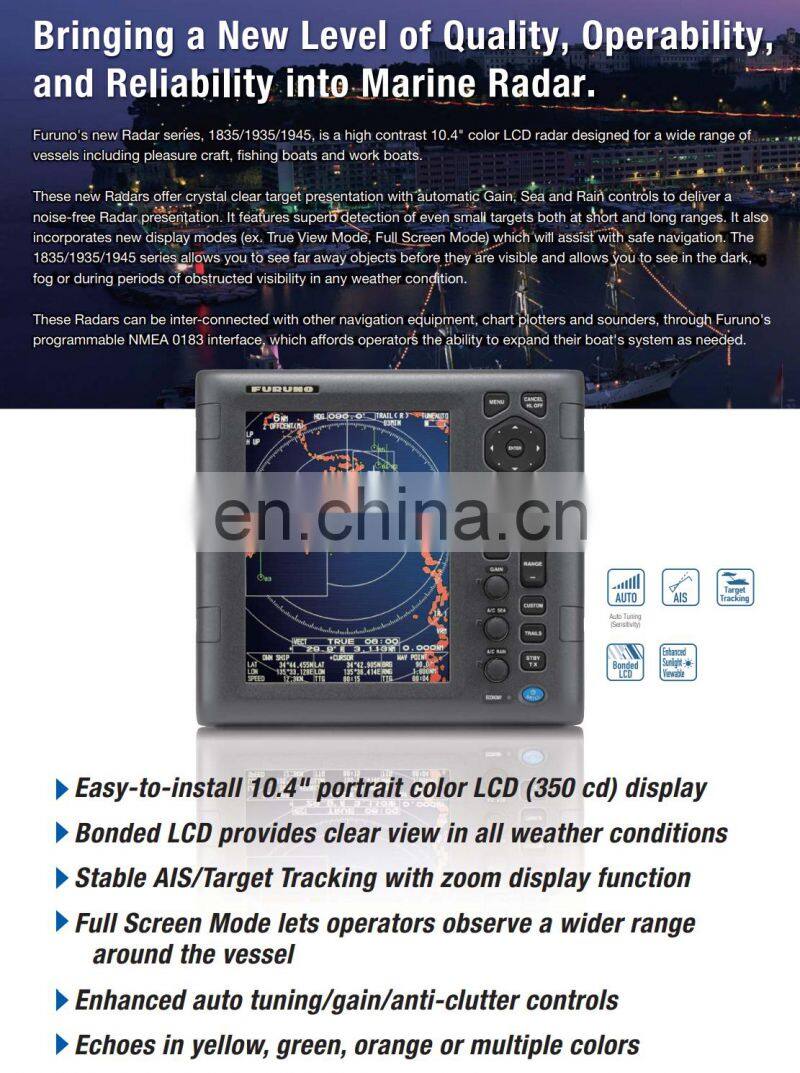

Marine Electronics Maritime Navigation Communication Model Furuno 1945 CCS 6kw 64nm 10.4'' Display Ship Boat x Band Marine Radar

Specifications

ANTENNA

Peak Output Power: 6 kW

Type: 1200 mm Open (4.0')

Frequency: 9410±30 MHz (X-band)

Beam Width (Horizontal): 1.9°

Beam Width (Vertical): 22°

Range Scales: 0.0625-64 nm

Minimum Range: 25 m

Antenna Rotation Speed: 24 rpm 48 rpm (option)

Weight: 25 kg

DISPLAY

Display Unit

10.4'' color LCD (640 x 480, VGA)

Display Mode

Head-up, Course-up*, North-up*, True view*, True motion**
* Heading data required
** Heading and position data required

Other Mode / Functions

ARP/AIS display*1, Target tracking*2, User programmable keys, Echo trails
*1 Requires AIS transponder/receiver installed
*2 Requires heading and speed data

Weight

5.4 kg

ENVIRONMENT

Temperature

Display unit : -15°C to +55°C
Antenna unit : -25°C to +55°C

Waterproofing

Display unit : IP55
Antenna unit : IP26

POWER SUPPLY

Power Supply / Consumption Current

12-24 VDC: 7.3-3.5 A (24 rpm)
8.8-4.1 A (48 rpm)

Equipment List

Standard

• DISPLAY UNIT RDP-152-E1 UNIT
• ANTENNA RADIATOR XN12A
  (4 FT)1 UNIT
• ANTENNA DRIVE UNIT RSB-0070-064 (24 PPM) or
  RSB-0073-064 (48 RPM, optional)1 UNIT
• INSTALLATION MATERIALS including Antenna Cable and SPARE PARTS1 SET

Option

• AUTO PLOTTERARP-11
• CABLE ASSEMBLY
• SIGNAL CABLE ASSEMBLY5 M
  10 M
• SIGNAL CABLE ASSEMBLYMJ-A6SPF0003-050C (5 M)
  MJ-A6SPF0007-100C/MJ-A6SPF0009-100C (10 M)
  MJ-A6SPF0012-050C/100C
• SIGNAL CABLE ASSEMBLY10 M (for Sub)
  20 M (for Sub)
  30 M (for Sub)
• EXTERNAL ALARM BUZZER
• RECTIFIER (CHINA)RU-3423
  (100/220 VAC)
