Marine Electronics Maritime Navigation Communication Model Furuno 1835 CCS 4kw 36nm10.4'' Display Ship Boat x Band Marine Radar

Specifications

ANTENNA

Peak Output Power: 4 kW

Type: ø602 mm Radome (24'')

Frequency: 9410±30 MHz (X-band)

Beam Width (Horizontal): 4.0°

Beam Width (Vertical): 20°

Range Scales: 0.0625-36nm

Antenna Rotation Speed: 24 rpm

Weight: 8 kg

DISPLAY

Display Unit

10.4'' color LCD (640 x 480, VGA)

Display Mode

Head-up, Course-up*, North-up*, True view*, True motion**
* Heading data required
** Heading and position data required

Other Mode / Functions

ARP/AIS display*1, Target tracking*2, User programmable keys, Echo trails
*1 Requires AIS transponder/receiver installed
*2 Requires heading and speed data

Weight

5.4 kg

ENVIRONMENT

Temperature

Display unit : -15°C to +55°C
Antenna unit : -25°C to +55°C

Waterproofing

Display unit : IP55
Antenna unit : IP26

POWER SUPPLY

Power Supply / Consumption Current

12-24 VDC: 4.1-2.0 A

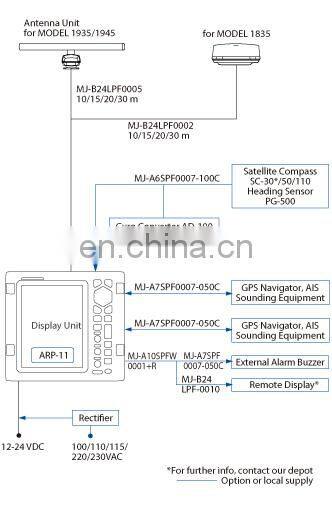

Equipment List

Standard

• DISPLAY UNIT RDP-152-E1 UNIT
• RADOME ANTENNA UNIT RSB-0071-0571 UNIT
• INSTALLATION MATERIALS including Antenna Cable and SPARE PARTS1 SET

Option

• AUTO PLOTTERARP-11
• CABLE ASSEMBLY
• SIGNAL CABLE ASSEMBLY5 M
  10 M
• ANTENNA CABLE ASSEMBLY10 M
  15 M
  20 M
  30 M
• SIGNAL CABLE ASSEMBLY10 M (for Sub)
  20 M (for Sub)
  30 M (for Sub)
• EXTERNAL ALARM BUZZER
• RADOME MOUNT
• RECTIFIER (CHINA)PR-62 (100/220 VAC)
