Home > Products > Horizontal Slurry Pumps > SL Series Ligh Duty Slurry Pumps
SL Series Ligh Duty Slurry Pumps
- Tianjin
- T/T
- 7 days
You May Like
Product Details
| Brand Name | CNSME | Model Number | SL/75C, SL/150E, SL/300S | |
| Application | Sewage | Fuel | Diesel | |
| Power | Electric | Usage | Water | |
| Theory | Centrifugal Pump | Standard or Nonstandard | Standard | |
| Pressure | High Pressure |
Product Description
Ligh Duty Slurry Pumps; Metal Lined Slurry Pumps; Tailings Slurry Pumps
Model: SL/75C, SL/150E, SL/300S
Series: Metal Lined Slurry Pumps
General Introduction:
?Our horizontal slurry pumps are designed for heavy-duty applications such as mining, minerals processing, mill discharge, power plants, tailings, and other industrial applications, for maximum abrasion, erosion, and corrosion resistance.
?The pumps are in a wide range of sizes, available with both high chrome and rubber wearing parts. Components like impeller and volute come in a range of hard metal types and elastomers to suit the specific application.
?Different shaft seal types are available to suit every requirement, including gland packing seal, expeller seal, and mechanical seal.
?Our metal-lined slurry pumps are designed for heavy-duty industrial applications, to handle the most arduous slurries.
?Wear resistant cast alloys are used for slurry pump liners and impellers where conditions are not suited to rubber, such as with coarse or sharp-edged particles, or on duties having high impeller peripheral velocities or high operating temperatures.
?Designed for rugged duties while offering higher efficiencies, the SL series is a combination of the SH pump’s unique features.
?The SL Series Slurry Pumps provides the widest range of hydraulics from the 20mm to 550mm discharge pumps. The 20mm pump is perfect for the laboratory or in demonstration plants.
Specifications:
Pump | Outlet | Allowable | Material | ClearWater Performance | Impeller | ||||||
Capacity Q | Head | Speed | Max.Eff. | NPSH | No. of | Vane Dia. | |||||
Impeller | m3/h | l/s | |||||||||
SL/20A | 20 | 7.5 | Metal | 2.34-10.8 | 0.65-3 | 6-37 | 1400-3000 | 30 | 5 | 152.4 | |
SL/50B | 50 | 15 | 16.2-76 | 4.5-20 | 9-44 | 1400-2800 | 55 | 190 | |||
SL/75C | 75 | 30 | 18-151 | 5-42 | 4-45 | 900-2400 | 57 | 2290 | |||
SL/100D | 100 | 60 | 500-252 | 14-70 | 7-46 | 800-180 | 60 | 2-3.6 | 305 | ||
SL/150E | 150 | 120 | 1115-486 | 32-135 | 12-51.5 | 800-1500 | 65 | 2-6 | 381 | ||
SM/200E | 200 | 120 | 666-1440 | 185-400 | 14-60 | 600-1100 | 73 | 4-10 | 549 | ||
SM/200F | 200 | 260 | 666-1440 | 185-400 | 14-60 | 600-1100 | 73 | 4-10 | 549 | ||
SL/250E | 250 | 120 | 396-1425 | 110-396 | 8-30 | 500-800 | 77 | 2-10 | 550 | ||
SL/300S | 300 | 560 | 468-2538 | 130-705 | 8-60 | 400-950 | 79 | 2-10 | 653 | ||
SL/350S | 350 | 560 | 650-2800 | 180-780 | 10-59 | 400-840 | 81 | 3-10 | 736 | ||
SL/400ST | 400 | 560 | 720-3312 | 200-920 | 7-51 | 300-700 | 80 | 2-10 | 825 | ||
SL/450ST | 450 | 560 | 1008-4356 | 280-1210 | 9-48 | 300-600 | 80 | 2-9 | 933 | ||
SL/550TU | 550 | 1200 | 1980-7920 | 560-2200 | 10-50 | 250-475 | 86 | 4-10 | 1213 | ||
Materials:
Description of Parts | Material | Material Code |
Pump Body, Split-Casing | Grey Iron | G20/G21 |
Ductile Iron | D20/D21 | |
Impeller, Volute, | 27% High Chrome | A05/R55 |
Shaft | 304 Stainless Steel | C21 |
316 Stainless Steel | C23 | |
Shaft Sleeve | 304 Stainless Steel | C21 |
316 Stainless Steel | C23 | |
Aluminum Oxide Coating, White | J04 | |
Chrome Oxide Coating, Black | J05 |

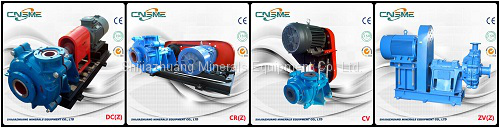

Driven Type:
DC(z): The pump and the engine are directly connected by a coupling.
Belt-driven Types: The pump and the engine is connected by pulleys and belts --- CV, CR(z), ZV(z).

Applications:
Oil sands, Mineral Sands, Fine tailings, Phosphoric acid, Coal, Flotation
