Home > Products > Sand Gravel Pumps > Heavy Duty Sand Gravel Pump SG/200F (8-inch)
Heavy Duty Sand Gravel Pump SG/200F (8-inch)
- Tianjin
- T/T Other
- 7 days
You May Like
Product Details
| Brand Name | CNSME | Place of Origin | China | |
| Model Number | SG/200F | Power | Electric | |
| Theory | Centrifugal Pump | Standard or Nonstandard | Standard | |
| Structure | Single-stage Pump |
Product Description
Certificate: CE/ISO
Place of Origin: Hebei, China
Introduction:
The SG range of dredge and gravel pumps is designed to provide continuous pumping of highly abrasive slurries containing large particles at high maintained efficiencies with low maintenance and ownership costs. The impeller fitted to our SG heavy duty gravel pumps is the closed type with three vanes, which allow the impeller to pass large rocks. The heavy-duty dredge pump is specifically designed for low head duties such as hopper dredging and barge loading.
Material Construction:
Description | Standard Material | Optional Material |
Impeller | A05 | |
Door | A05 | |
Bowl | A05 | |
Front Cover | A05 | |
Back Liner | A05 | |
Shaft | Carbon Steel | SUS304, SUS316(L) |
Shaft Sleeve | 3Cr13 | SUS304, SUS316(L) |
Shaft Seal | Gland Packing Seal | Expeller Seal, Mechanical Seal |
Applications:
Sand and Gravel; Hydraulic Mining; Sugar Beet & Other Root Vegetables; Slag Granulation; Tunnelling.
Specifications:
Pump Model | S×D (inch) | Allowable Max. Power (kw) | Clear Water Performance | Impeller | |||||
Capacity Q | Head H(m) | Speed n(r/min) | Max.Eff. η% | NPSH (m) | No. of Vanes | Vane Dia. (mm) | |||
m3/h | |||||||||
SG/100D | 6×4 | 60 | 36-250 | 5-52 | 600-1400 | 58 | 2.5-3.5 | 3 | 378 |
SG/150E | 8×6 | 120 | 126-576 | 6-45 | 800-1400 | 60 | 3-4.5 | 391 | |
SG/200F | 10×8 | 260 | 216-936 | 8-52 | 500-1000 | 65 | 3-7.5 | 533 | |
SG/250G | 12×10 | 600 | 360-1440 | 10-60 | 400-850 | 65 | 1.5-4.5 | 667 | |
SG/300G | 14×12 | 600 | 432-3168 | 10-64 | 300-700 | 68 | 2-8 | 864 | |
SG/400T | 18×16 | 1200 | 720-3600 | 10-50 | 250-500 | 72 | 3-6 | 1067 | |

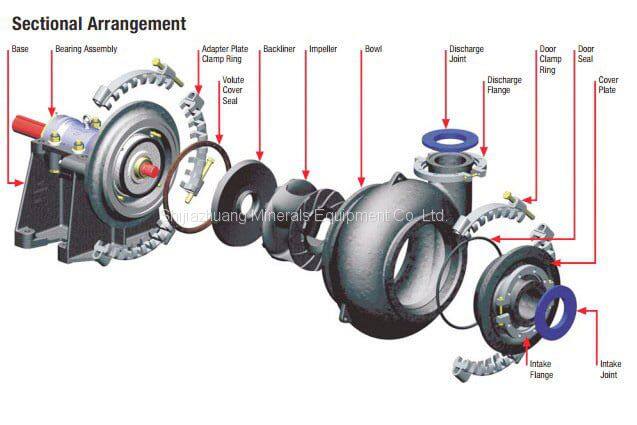

Structure:
