Coal Washing Heavy Duty Slurry Pump 100ZJ
- Tianjin
- T/T Other
- 7 days
You May Like
Product Details
| Brand Name | CNSME | Place of Origin | China | |
| Model Number | 100ZJ | Power | Electric | |
| Theory | Centrifugal Pump | Standard or Nonstandard | Standard | |
| Structure | Single-stage Pump |
Product Description
Certificate: ISO/CE
Place of Origin: Hebei, China
● Flow rate :56-365m3/hr
● Head H(m): 8.2-100.2
● Speed: 700-1480rpm
● Efficiency: Max71.6%
● Materials: Impeller A05
● Power: Max 160Kw
● Partial max size(mm):34
● Color: Depend on customers’ requirements
● NPSH (m):2.5
● Warranty: 1-year Warranty (except wet-end parts)
Introduction:
This ZJ series comprises single-stage heavy-duty slurry pumps with easily-replaceable wear parts and a re-adjustable wear plate, in a sandwich casing. ZJ pump is a Chinese design, with only metal linings, and is very widely used for abrasive applications.
Advantages:
?Ensured client use of valuable extra-hard material.
?Savings on first investments and spare parts.
slurry pump application examples:
?Sludge in stone quarries.
?Discharge/feed pump in tunneling.
?Mixer pump for ready-mixed concrete
ZJ series are large volume, high head slurry pumps that are popular in industries like power plants, coal washing plants, filter press, sand washing plants, etc.
Specifications:
Model | 100ZJ |
Capacity | 56-365m3/h |
TDH | 8.2-100.2m |
Max. Allowable Motor Power | 45/55/75/90/132/160Kw |
Speed | 700-1480r.min |
Max. Efficiency | 71.6% |
Lubrication | Oil |

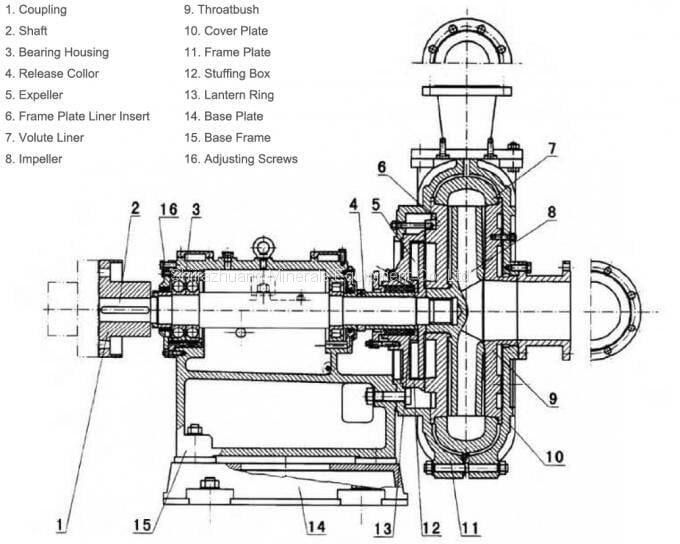

Construction of ZJ Slurry Pump:
Standard Material of Wet-end Parts: Hi-Chrome Alloy A05
Typical Applications:
Bottom/Fly Ash
Coal Washing
Power Plants
Potash Fertilizer Plant
Iron Ore Dressing Plant
Gold Mine Concentration Plant

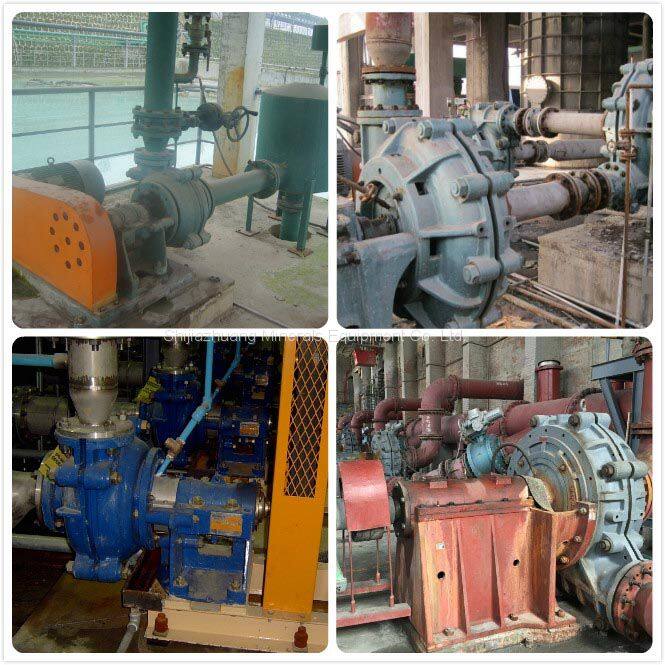

Projects with ZJ Slurry Pumps:
