100ZGB Metal Slurry Pump for Power Plants
- Tianjin
- T/T Other
- 7 days
You May Like
Product Details
| Brand Name | CNSME | Place of Origin | China | |
| Model Number | 100ZGB | Power | Electric | |
| Theory | Centrifugal Pump | Standard or Nonstandard | Standard | |
| Structure | Single-stage Pump |
Product Description
Certificate: CE/ISO
Place of Origin: Hebei, China
● Material: Chrome Alloy A05
● Impeller: 5-Vane Closed
● Use: Coal Washery Plant Slurry Pump
● Stage: Single Stage
● Lubrication: Oil
● Speed: Fixed Rotation
● Model: 100ZGB
● Weight: 3000kgs
Introduction:
ZGB series slurry pump is a horizontal, single-stage, single suction, cantilever, double pump shell, centrifugal slurry pump.
Over-current components can exchange ZGB and ZGBP type slurry pumps of the same caliber. Dimensions are identical. The transmission part ZGB series slurry pump adopts open standards thin oil lubrication carrier, and is provided with two groups of cooling sys,
When necessary, cooling water.
Shaft seal type ZGB series slurry pump has two types: expeller seal combined with packing and mechanical seals.
Specifications:
Model | 100ZGB |
Capacity | 50-400m3/h |
TDH | 40-100m |
Max. Allowable Motor Power | 300Kw |
Speed | 980r/min or 1480r/min |
Max. Efficiency | 78% |
Lubrication | Oil |
Construction of ZGB Slurry Pump:
Standard Material of Wet-end Parts: Hi-Chrome Alloy A05
Typical Applications:
Bottom/Fly Ash
Coal Washing
Power Plants
Potash Fertilizer Plant
Iron Ore Dressing Plant
Gold Mine Concentration Plant

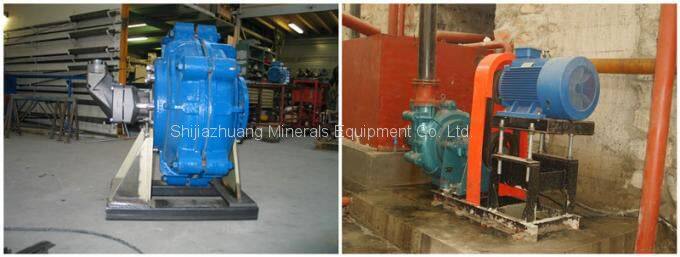

Projects of ZGB Heavy Duty Slurry Pump:
